3. Remove the bottom half of the plastic case by lifting it vertically.
Note that the handle assembly and the two wire anchors for the
shoulder strap will be freed when the bottom of the case is
removed. Remove them and set them aside.
4. Remove the chassis and panel assembly from the top half of the
plastic case by lifting directly upwards. Turn the chassis over so
that it is right-side-up.
Longer Screw

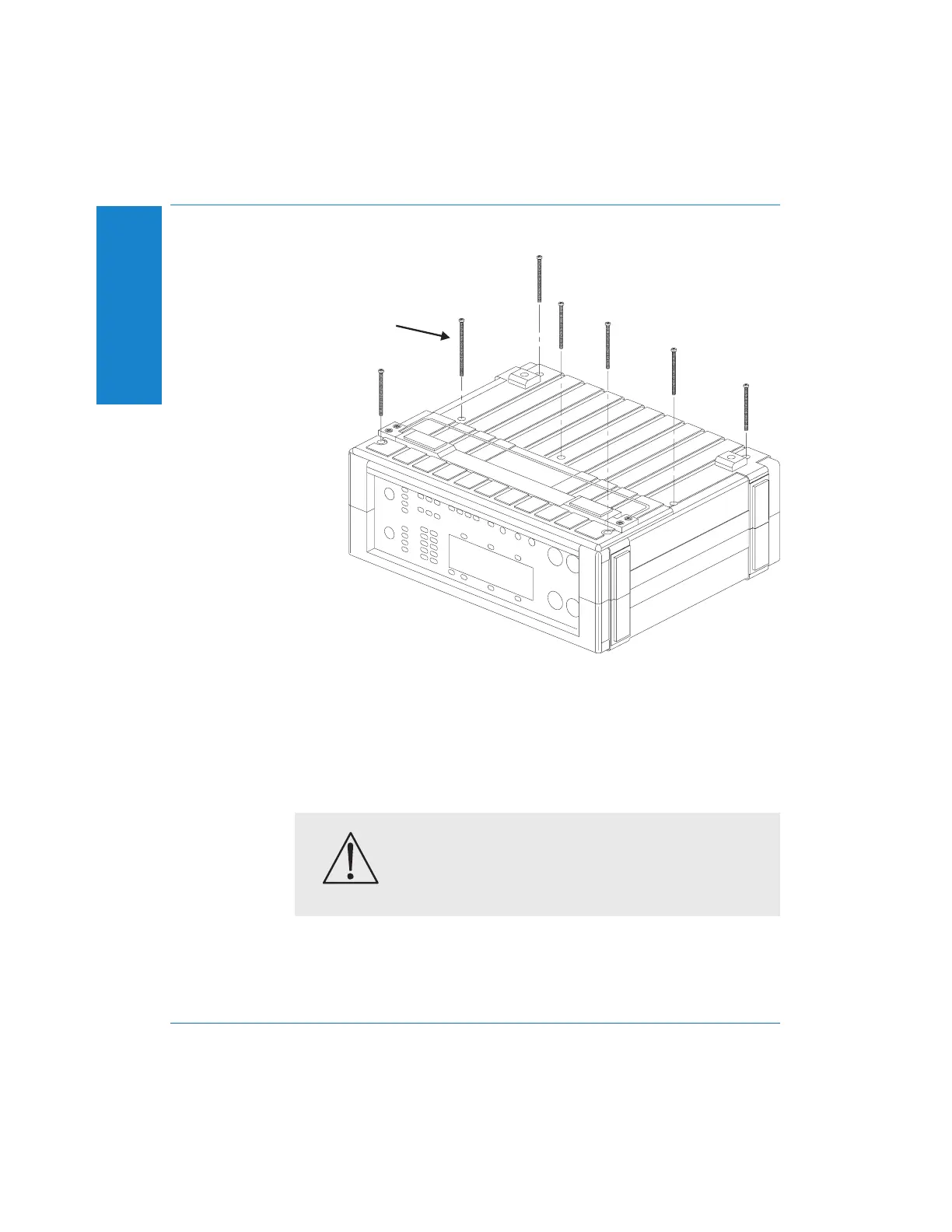

Figure C-1. Screws Removed for Case Disassembly
ATTENTION: Do NOT touch the components
on the circuit boards. They can be easily
damaged by static electricity.
C Monitor Selection
Appendix C - Monitor Source Selection
C-2 Portable One Plus Access User's Manual
