5. Locate the monitor selection resistor as shown in the following
figure. Remove the resistor and reinstall it in the desired
position. Solder into place.
7. If you want to add or replace an option filter as well, you may
want to do it now, while you have the unit open. See Appendix
B for instructions on changing option filters.
8. Turn the chassis assembly over and reassemble it into the inverted
case top. Make sure that the front and rear panel edges go into
their slots in the case.
Speaker
Monitors
Input
Speaker
Monitors
Analyzer
REAR OF UNIT
RIGHT SIDE

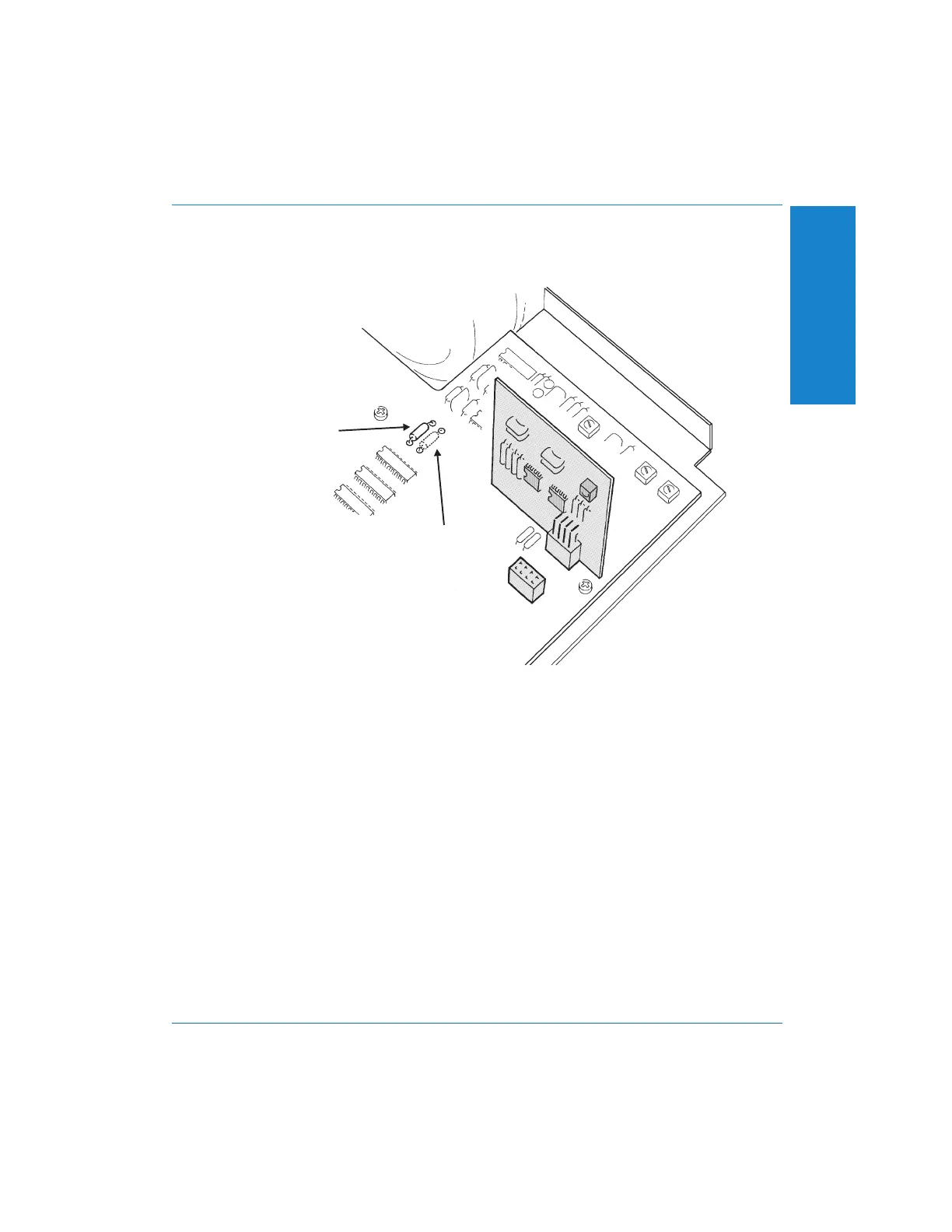

Figure C-2. Monitor Selection Resistor Positions
C
Monitor Selection
Appendix C - Monitor Source Selection
Portable One Plus Access User's Manual C-3
