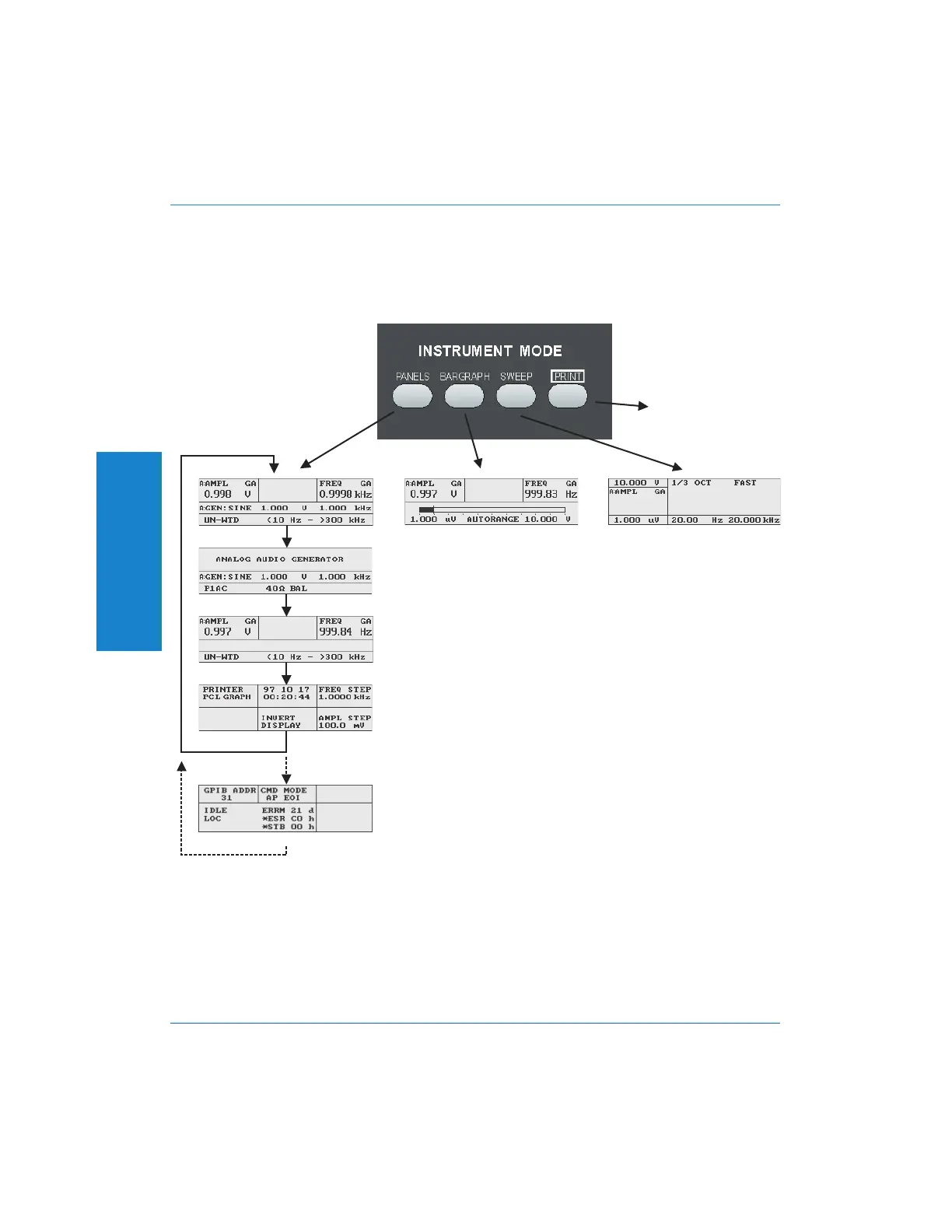

The following diagram shows the main panels and how to get to them:
MAIN PANEL
GEN ONLY PANEL
ANLR ONLY PANEL
SETUP PANEL
BARGRAPH PANEL
SWEEP PANEL
DEPENDS ON CURRENTLY
SELECTED PANEL
GPIB PANEL (IF P1DD-488 OPTION INSTALLED)
Figure 4-2. Navigating the Panels
Shortcut: Pressing any FUNCTION
button will take you to the Main
Panel, even if the measurement
function does not change.
4 Operation
Operation Overview : INSTRUMENT MODE Keys – Navigating the Panels
4-2 Portable One Plus Access User's Manual
