When the instrument is first powered on, it defaults to the Main panel.

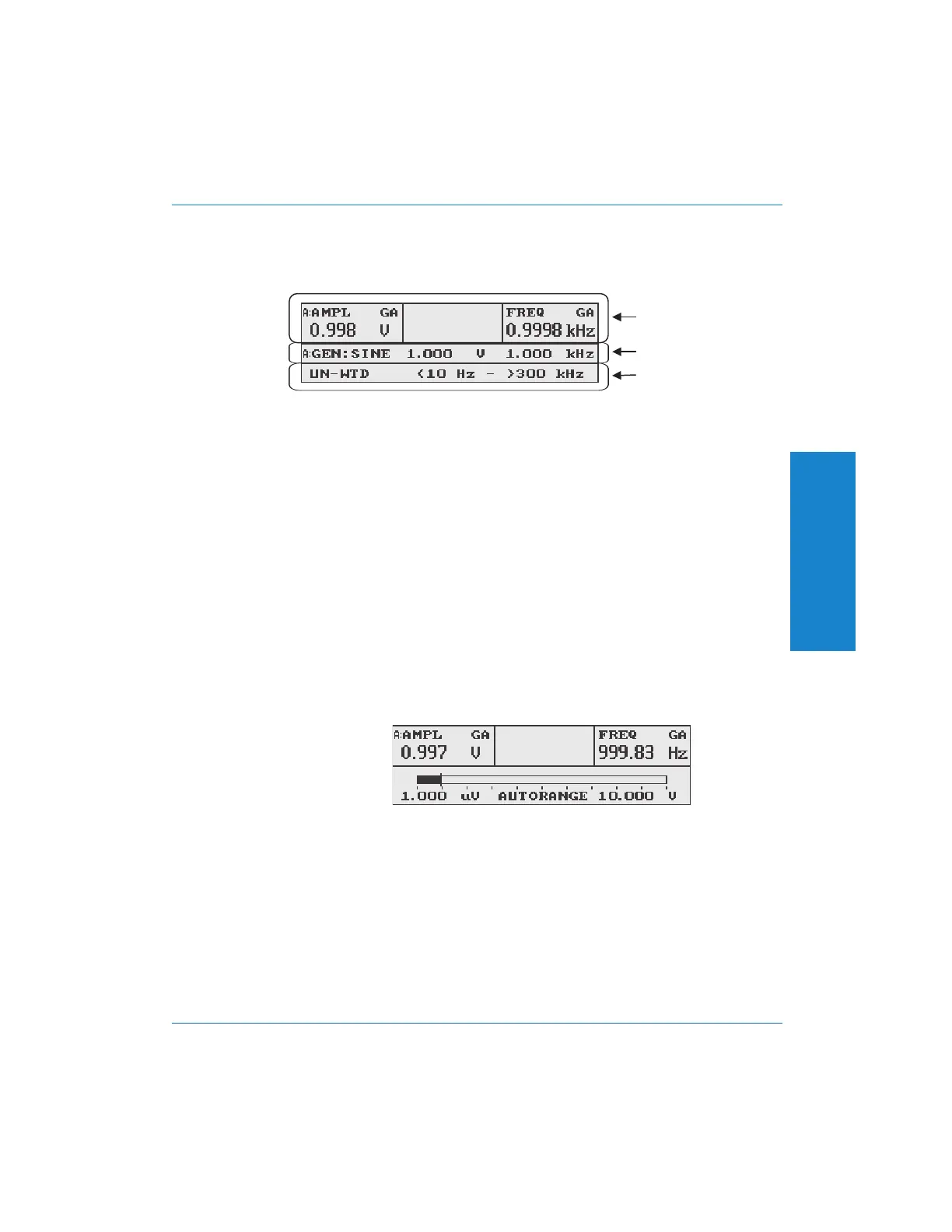

The Main panel looks like this:
Along the top is the Analyzer section, which usually shows one, two, or
three real-time readings. Across the middle is the Generator section,
which shows the operating parameters of the generator. The bottom
section is for the soft keys, which change function depending on
various instrument conditions.
The PANELS key provides access to the Main panel, as well as the
Generator Only panel, the Analyzer Only panel, and the Setup panel.
Usually the first press of the PANELS key will take you to the Main
panel, and subsequent presses of the PANELS key will cycle through
the other panels, returning you to the Main panel after all the other
panels have been seen.
The BARGRAPH key provides access to the Bargraph panel, which
looks like this:
This panel has up to three real-time readings at the top like the Main
panel. The generator and soft key areas have been replaced with a
horizontal bargraph. This bargraph shows a real-time analog-like
display of a selected reading. See page 4-57 for more discussion of
the Bargraph panel.
ANALYZER SECTION
GENERATOR SECTIO
SOFT KEY SECTION
Figure 4-3. Sections of the Main Panel
Figure 4-4. Bargraph Panel
4
Operation
Overview : INSTRUMENT MODE Keys – Navigating the Panels Operation
Portable One Plus Access User's Manual 4-3
