30

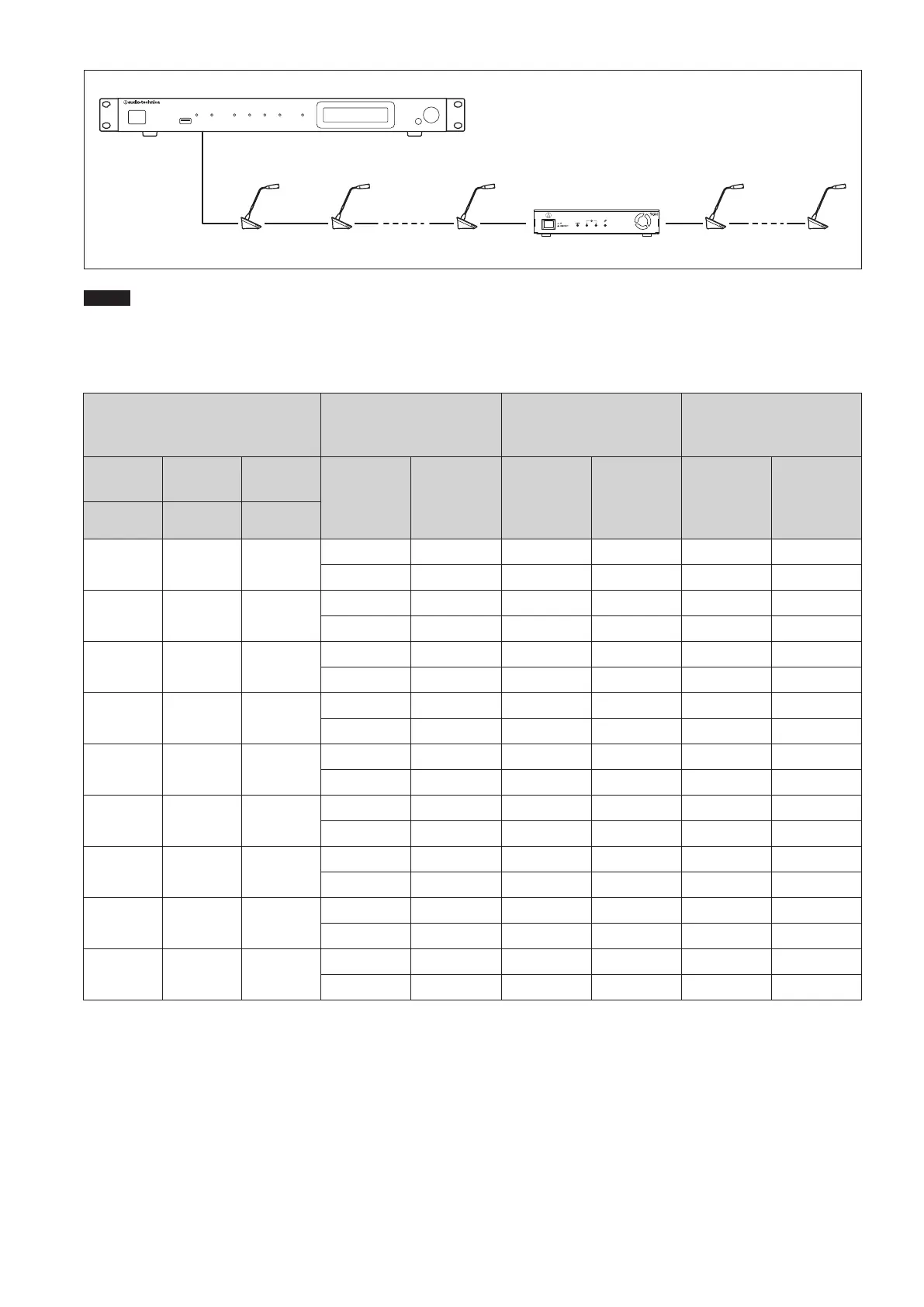

Daisy-chain connection
ATUC-50DU
ATLK-EXT165
L1
L2 L2 L2 L1 L3 L2 L2
ATUC-50CU
NOTICE
• For a 50CU-50DU-50DU-…50DU-EXT connection, the distance between the [50DU-EXT] is L1.
• When it is EXT-50DU-…-50DU-50DU-, the distance for [EXT-50DU] is L3.
Relationship of the LAN cable length, number of units connected and number of EXTs required: Daisy-chain
connection
10 m 1.5 m 10 m
1 to 45 units 0 units 1 to 30 units 0 units 1 to 32 units 0 units
46 to 50 units 1 unit 31 to 45 units 1 unit 33 to 49 units 1 unit
50 m 1.5 m 10 m
1 to 36 units 0 units 1 to 24 units 0 units 1 to 26 units 0 units
37 to 50 units 1 unit 25 to 39 units 1 unit 27 to 42 units 1 unit
100 m 1.5 m 10 m
1 to 24 units 0 units 1 to 16 units 0 units 1 to 17 units 0 units
25 to 50 units 1 unit 17 to 33 units 1 unit 18 to 36 units 1 unit
10 m 2.0 m 10 m
1 to 29 units 0 units 1 to 27 units 0 units 1 to 31 units 0 units
44 to 50 units 1 unit 28 to 43 units 1 unit 32 to 48 units 1 unit
50 m 2.0 m 10 m
1 to 34 units 0 units 1 to 23 units 0 units 1 to 25 units 0 units
35 to 50 units 1 unit 24 to 37 units 1 unit 26 to 41 units 1 unit
100 m 2.0 m 10 m
1 to 24 units 0 units 1 to 16 units 0 units 1 to 17 units 0 units
25 to 50 units 1 unit 17 to 33 units 1 unit 18 to 36 units 1 unit
10 m 5.0 m 10 m
1 to 33 units 0 units 1 to 25 units 0 units 1 to 26 units 0 units
34 to 50 units 1 unit 26 to 39 units 1 unit 27 to 42 units 1 unit
50 m 5.0 m 10 m
1 to 27 units 0 units 1 to 20 units 0 units 1 to 21 units 0 units
28 to 50 units 1 unit 21 to 34 units 1 unit 22 to 38 units 1 unit
100 m 5.0 m 10 m
1 to 20 units 0 units 1 to 14 units 0 units 1 to 15 units 0 units
21 to 48 units 1 unit 15 to 30 units 1 unit 16 to 34 units 1 unit
