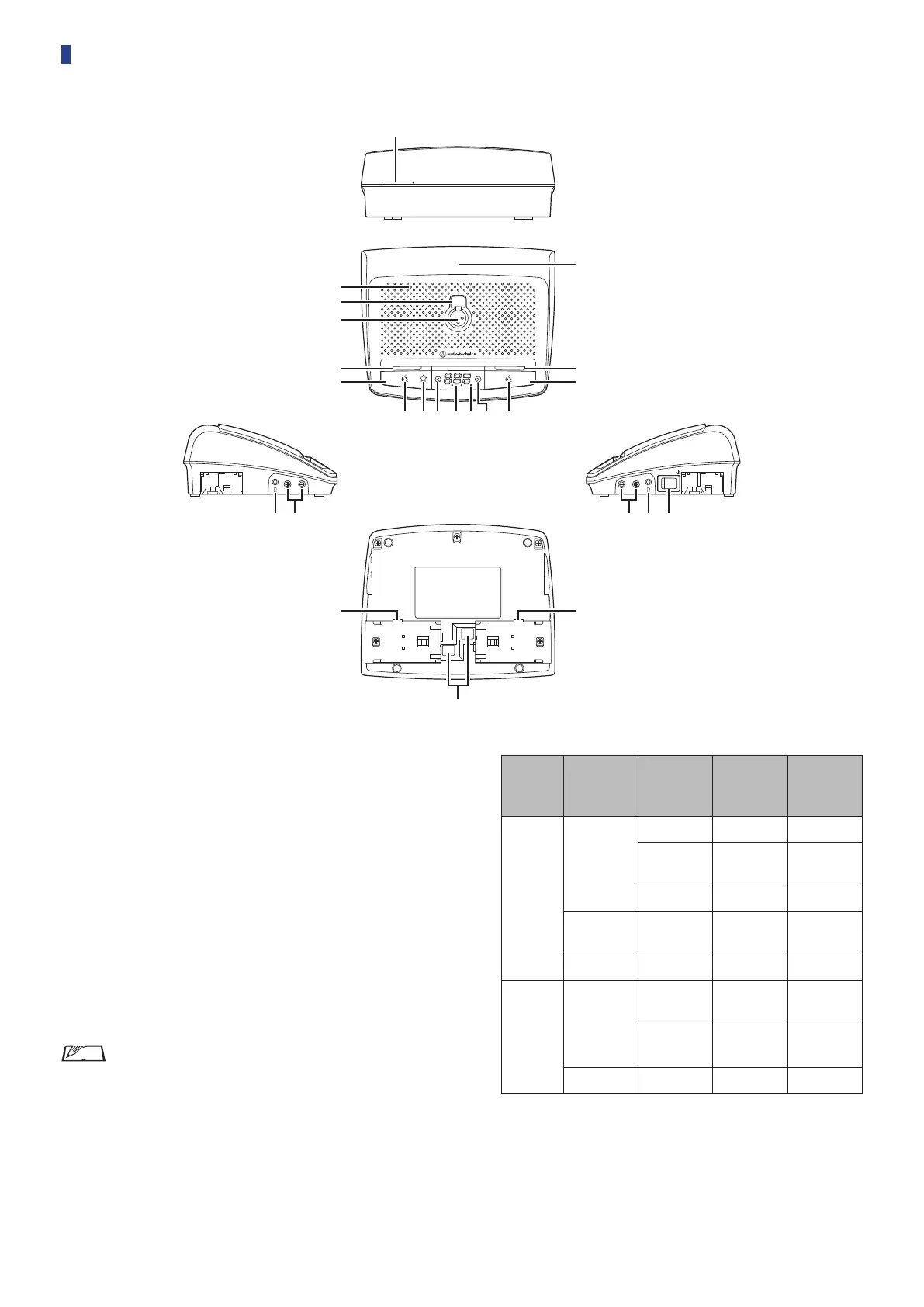

Built-in speaker
Outputs conference audio.
Microphone release button
Microphone jack
Connect a microphone.
* A typical 3-pin XLR type microphone or an ATUC-M series
microphone, can be connected.
Multifunction LED
Indicates the state of talking on the IRDU.
• While talking: lit red
• While requesting to talk: blinks green
• When talk request is rejected: blinks green (blinks 4 times
quickly, then turns off)
• Talking off: off
• Self-muting: lit white
• The LEDs can change to 9 colors. See the Web Remote
Edition.
Multifunction button
Press this button to send a request to talk. Press the button again
to finish talking or cancel the request to talk. Also, if priority is
set to on for an IRDU, pressing and holding this button can stop
other IRDUs from talking or mute their audio.
When Priority Is Off
Two
Person
Mode
Conference
Mode
Talk Mode Left Button Right Button
OFF
Free Talk
Voice Self Mute Self Mute
All Button
Toggle
Self Mute Talk ON
Push to Talk - Talk ON
Request to
Tal k
All Button
Toggle
Self Mute Talk ON
Full Remote - Self Mute Self Mute
Talk ON
Free Talk
All Button
Toggle
Talk ON
(speaker 1)
Talk ON
(speaker 2)
Push to Talk
Talk ON
(speaker 1)
Talk ON
(speaker 2)
Full Remote - Self Mute Self Mute
