34

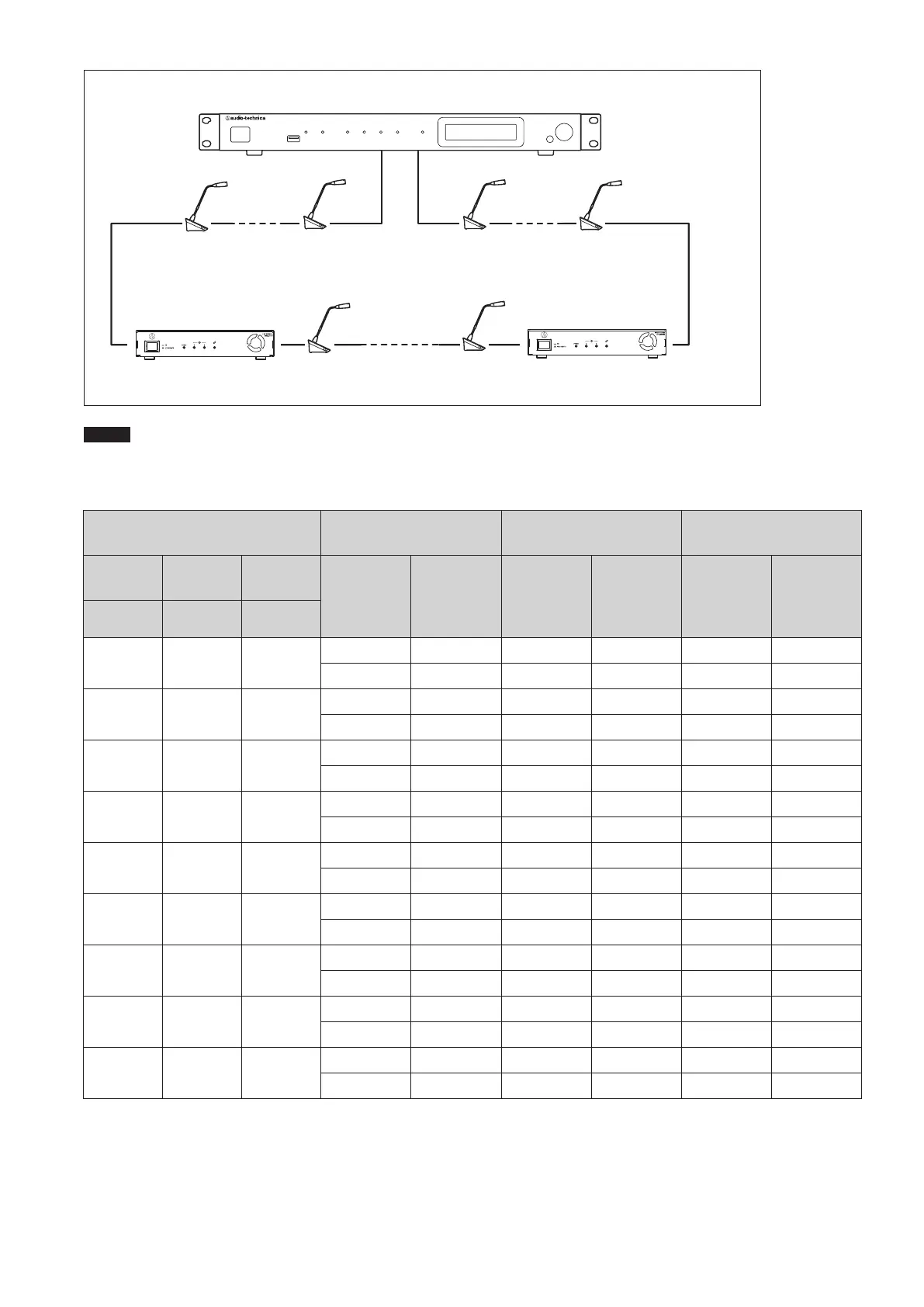

Ring connection
ATUC-50CU
ATLK-EXT165
L1
L1
L1
L1
L2L2 L2
L2 L2
L2
L3 L3
ATUC-50DU
NOTICE
For a 50CU-50DU-50DU-…50DU-EXT connection, the distance between the [50DU-EXT] is L1.
When it is EXT-50DU-…-50DU-50DU-, the distance for [EXT-50DU] is L3.
Relationship of the LAN cable length, number of units connected and number of EXTs required: Ring connection











 


















  
10 m 1.5 m 10 m
1 to 45 units 0 units 1 to 30 units 0 units 1 to 32 units 0 units
46 to 50 units 1 unit 31 to 50 units 2 units 33 to 50 units 2 units
50 m 1.5 m 10 m
1 to 36 units 0 units 1 to 24 units 0 units 1 to 26 units 0 units
37 to 50 units 2 units 25 to 50 units 2 units 27 to 50 units 2 units
100 m 1.5 m 10 m
1 to 24 units 0 units 1 to 16 units 0 units 1 to 17 units 0 units
25 to 50 units 2 units 17 to 48 units 2 units 18 to 50 units 2 units
10 m 2.0 m 10 m
1 to 43 units 0 units 1 to 29 units 0 units 1 to 31 units 0 units
44 to 50 units 1 unit 30 to 50 units 2 units 32 to 50 units 2 units
50 m 2.0 m 10 m
1 to 34 units 0 units 1 to 23 units 0 units 1 to 25 units 0 units
35 to 50 units 2 units 24 to 50 units 2 units 26 to 50 units 2 units
100 m 2.0 m 10 m
1 to 24 units 0 units 1 to 16 units 0 units 1 to 17 units 0 units
25 to 50 units 2 units 17 to 48 units 2 units 18 to 50 units 2 units
10 m 5.0 m 10 m
1 to 33 units 0 units 1 to 25 units 0 units 1 to 26 units 0 units
34 to 50 units 2 units 26 to 50 units 2 units 27 to 50 units 2 units
50 m 5.0 m 10 m
1 to 27 units 0 units 1 to 20 units 0 units 1 to 21 units 0 units
28 to 50 units 2 units 21 to 50 units 2 units 22 to 50 units 2 units
100 m 5.0 m 10 m
1 to 20 units 0 units 1 to 14 units 0 units 1 to 15 units 0 units
21 to 50 units 2 units 15 to 45 units 2 units 16 to 49 units 2 units
