6.5. KES electrical connection

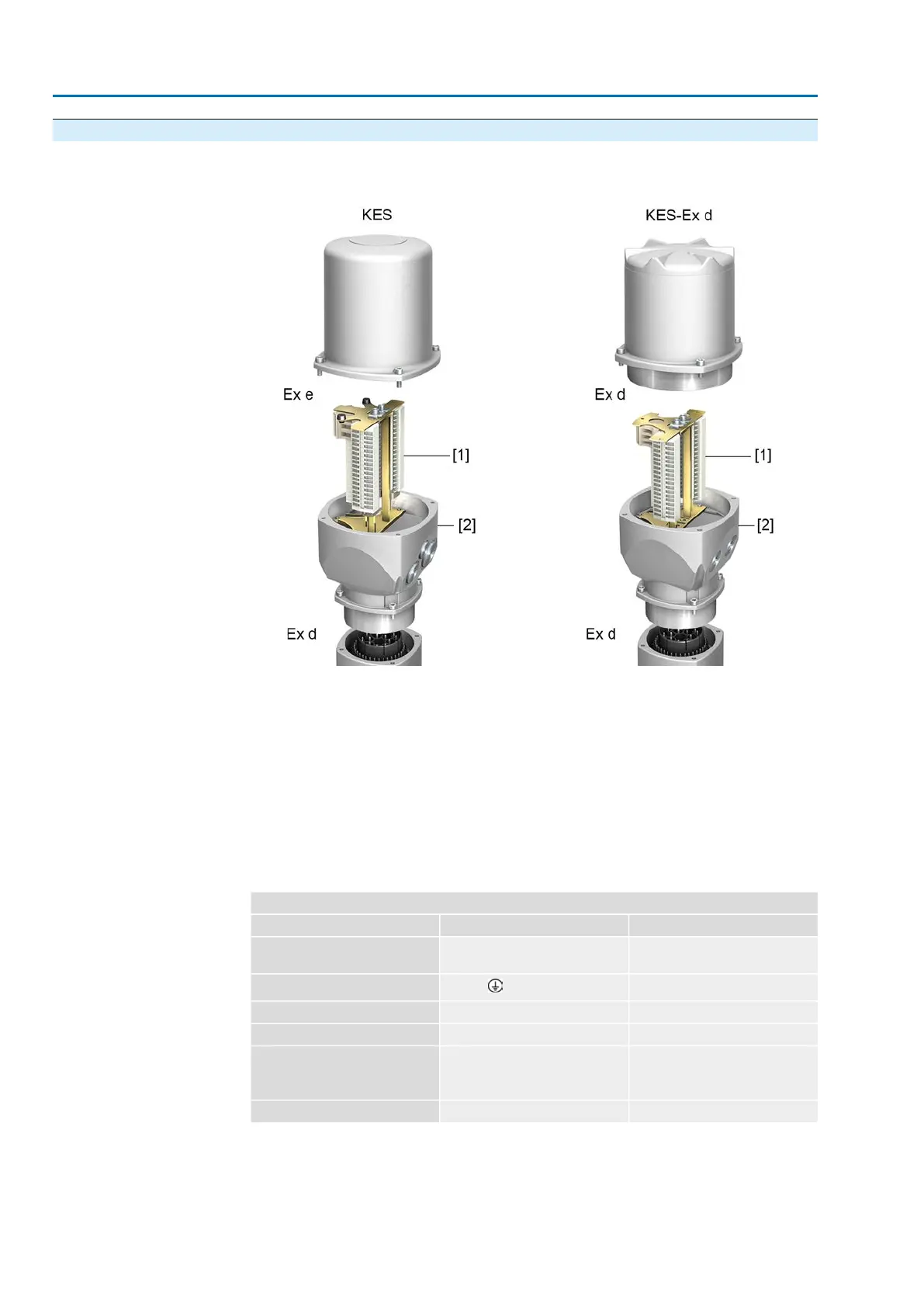

Figure 44: KES electrical connection
[1] Terminal blocks
[2] Connection frame
Short description
KES plug-in electrical connection with terminal blocks for power and control contacts.
Cable entry via the connection frame. Cover in KES-e version for terminal
compartment in type of protection Ex e (increased safety). Cover in KES-Ex d version
for terminal compartment in type of protection Ex d (flameproof enclosure).
Plug-in connection is made via the connection frame. For cable connection, simply
remove the cover. The connection frame remains within the device.The flameproof
interior of the connected devices remains sealed.
Technical data
Table 25:
KES electrical connection
Control contactsPower contacts
503 + protective earth connection at
frame
No. of contacts max.
1 to 50
U, V, W, (PE)
Designation
250 V750 VConnection voltage max.
10 A25 ARated current max.
Cage clamp,
screw-type connection as an op-
tion
Screw connection
PE = Ring lug/U-bracket
Type of customer connection
2.5 mm
2
flexible, 4 mm
2
solid6 mm
2
/10 mm
2
Connection diameter max.
42
SAEx 07.2 – SAEx 16.2/SAREx 07.2 – SAREx 16.2 Control unit - electromechanical
Electrical connection ACExC 01.2 Intrusive Modbus RTU
