6 Chapter 1 Aircraft
EVO Max 4T User Manual
R– Fast Flashing Critical Low Battery Alert
R– Always On IMU Abnormal / Illegal Battery
Slow flashing: flashing once every 2s. Fast flashing: flashes twice every 1s.
1.2 Gimbal Camera
The EVO Max 4T integrates four sensor systems: a wide-angle camera, zoom camera,
infrared thermal imaging camera and laser rangefinder.
1.2.1 Introduction to the Gimbal Camera
The EVO Max 4T gimbal camera has a high-precision three-axis motor structure, which can
keep the camera stable when the aircraft is flying, thus ensuring image stability and clarity. The
mechanical rotation angle of the three-axis motor of the gimbal (pitch: -135°~45°; roll: -45°~45°;
Yaw: -45°~45°) is shown in Figure 1-6 here.

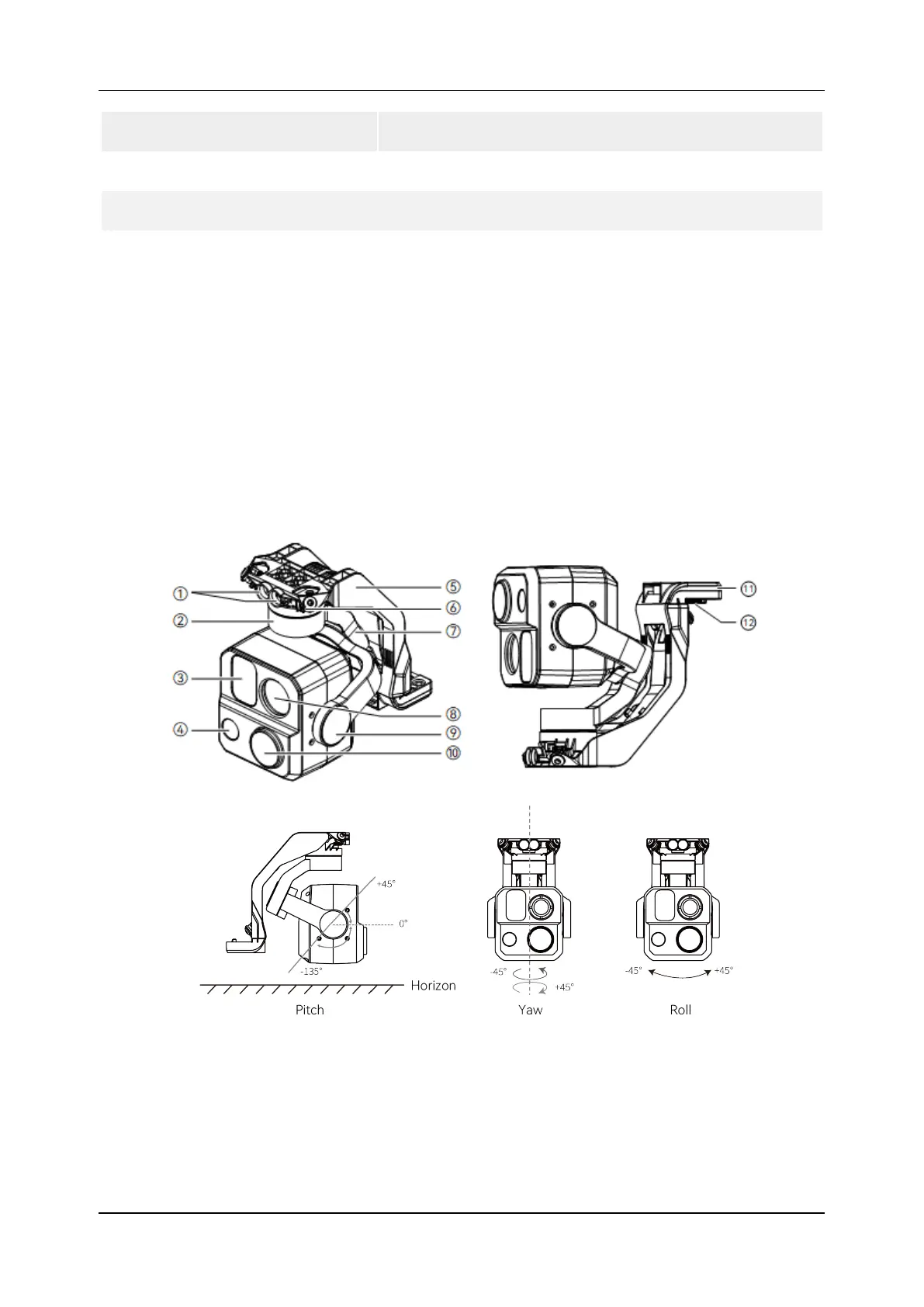

Figure 1-6 Gimbal Camera
