24 Inlet
Used for heat dissipation of the remote controller. Please pay
attention to whether there are foreign objects blocking the air
inlet when using it.
25
Command Stick
Storage Slot
Used to store left and right joysticks.
2.2 Preparation Before Use
Please follow the instructions in the following sections to prepare the remote controller for
use.
2.2.1 Installing the Remote Controller Strap (as required)
1) Clip the two metal clips on the lanyard to the narrow positions on both sides of the
metal handle of the controller.
2) Bypass the lower hook at the bottom of the back of the controller, then fasten the metal
button.
3) After wearing the lanyard over the neck, as shown in Figure 2-4, which can reduce the
pressure on the hand during use.

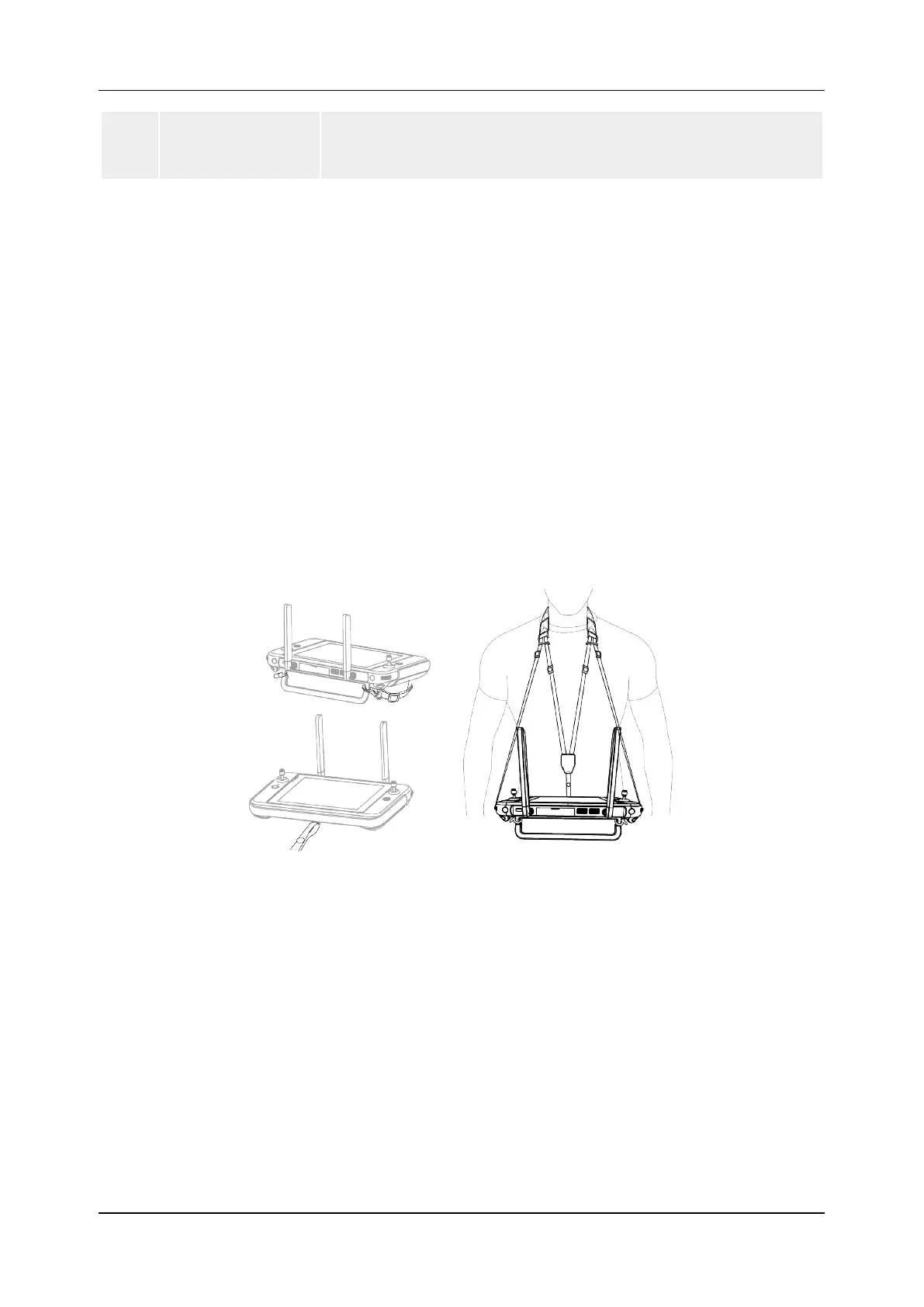

Figure 2-4 Installing the Remote Controller strap (as required)
2.2.2 Install/Store Command Sticks
 Install sticks
There is a threaded hole for storing the command sticks above the handle on the back of
the controller. Rotate counterclockwise to remove the two joysticks and then rotate them
clockwise to install them separately on the remote controller.
 Store sticks
Simply follow the reverse steps of the above operation.
