1.2.2 Removing/Installing the Gimbal Camera
 Removing the Gimbal Camera
The aircraft adopts a detachable gimbal design, please refer to the following disassembly
steps:
1) Place the aircraft on a level surface with the bottom of the fuselage facing up.
2) Use a Phillips 2.0 screwdriver to unscrew the two screws fixing the "connector
protection cover", as shown in Figure 1-7.
3) Slightly lift the "connector protection cover" and slide it back and up to take out the
gimbal camera, as shown in Figure 1-8 below.

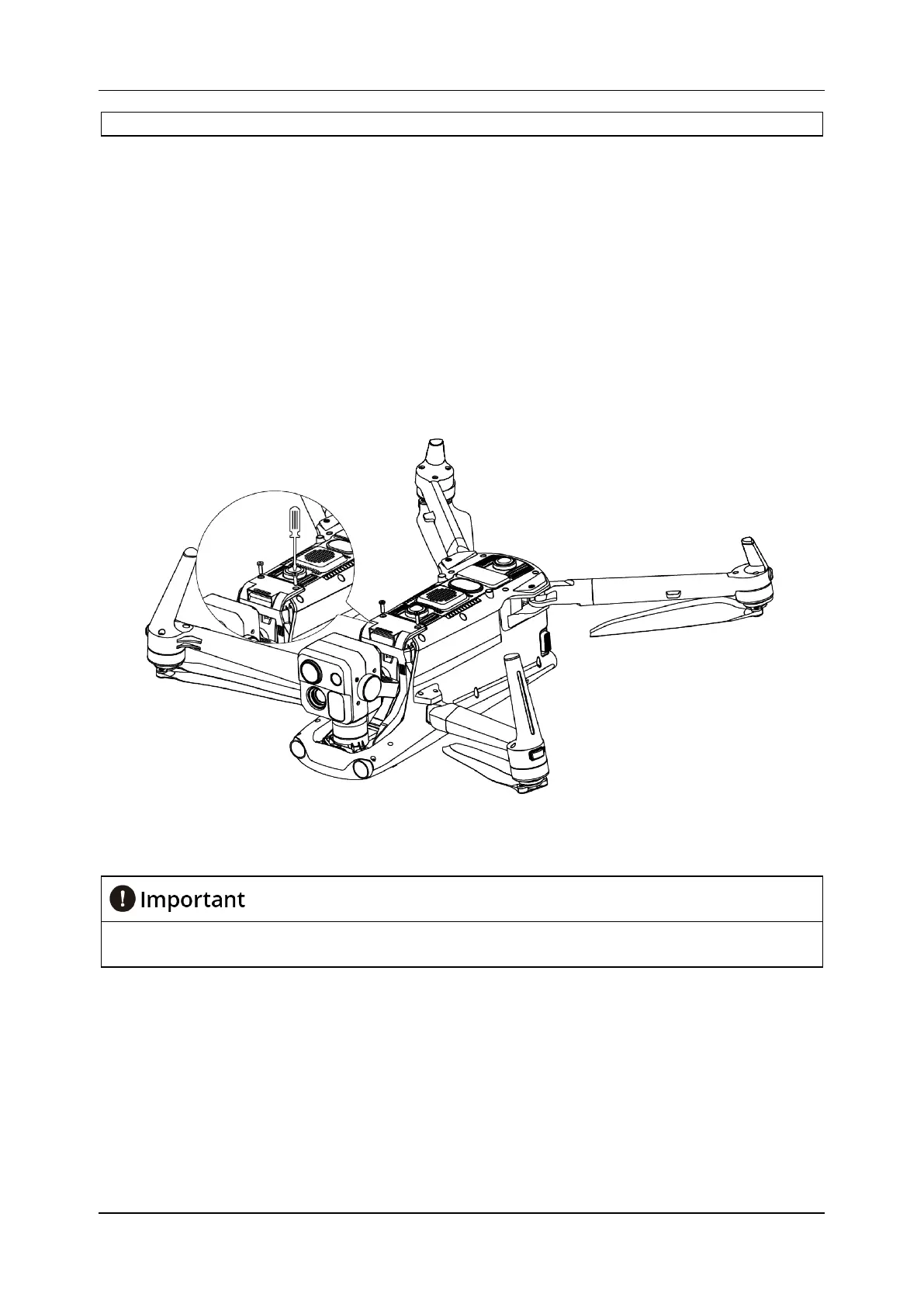

Figure 1-7 Remove the two screws securing the Connector Cover

When turning the aircraft upside down to remove the gimbal camera, please protect the
upward vision system of the aircraft to avoid scratches.
