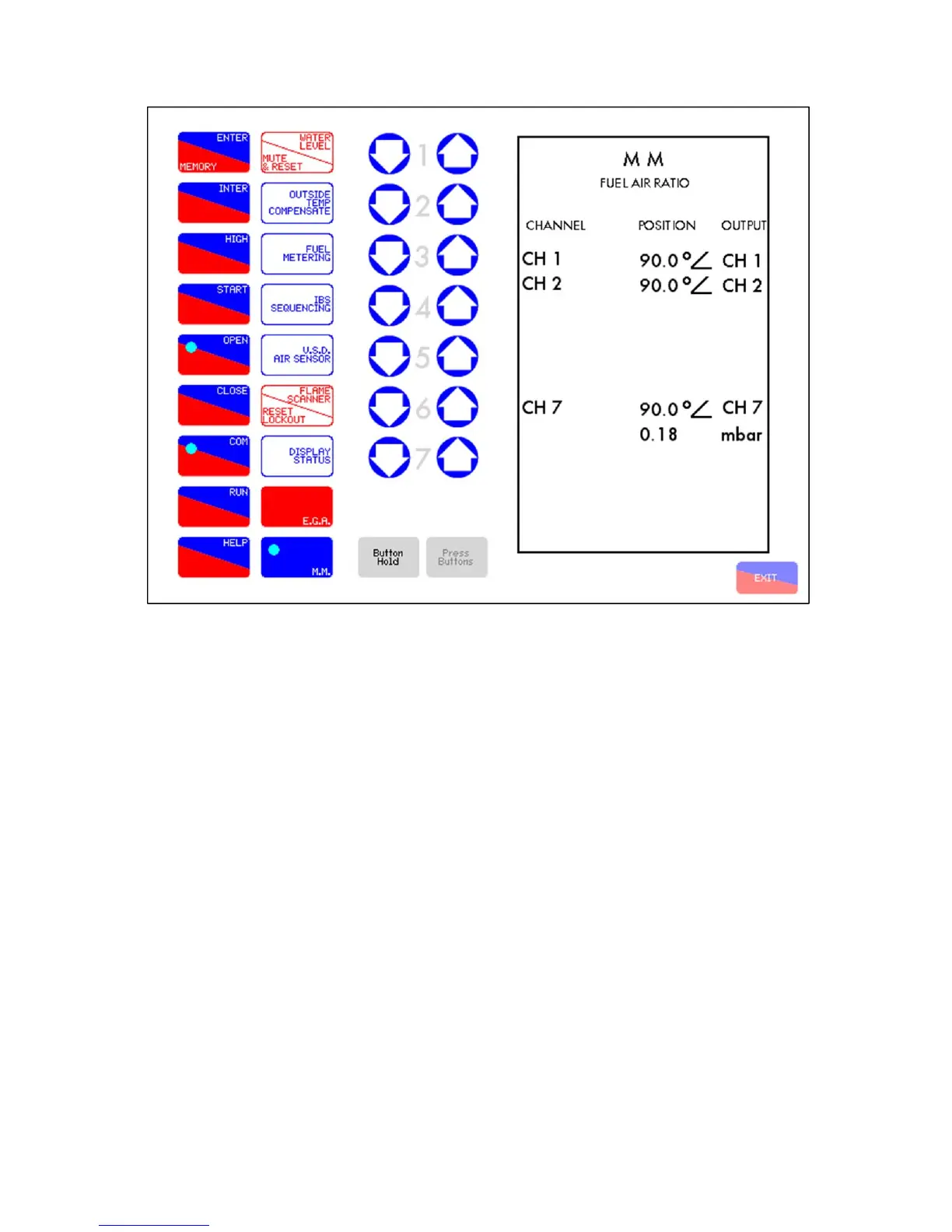

Figure 7.4.iv Open Position
5.
Enter the OPEN position. A draft pressure is st
ored at each recorded
position during the
commissioning process.
6.
Enter the STARTt position (this po
sition is not stored within the M.M
., but is used as an initial
light off position).
7 Draft Control
October 2014
Mk7 Manual: Expansion Board Set-Up Guide
Page 121
130
132
