TDS Probe Calibration

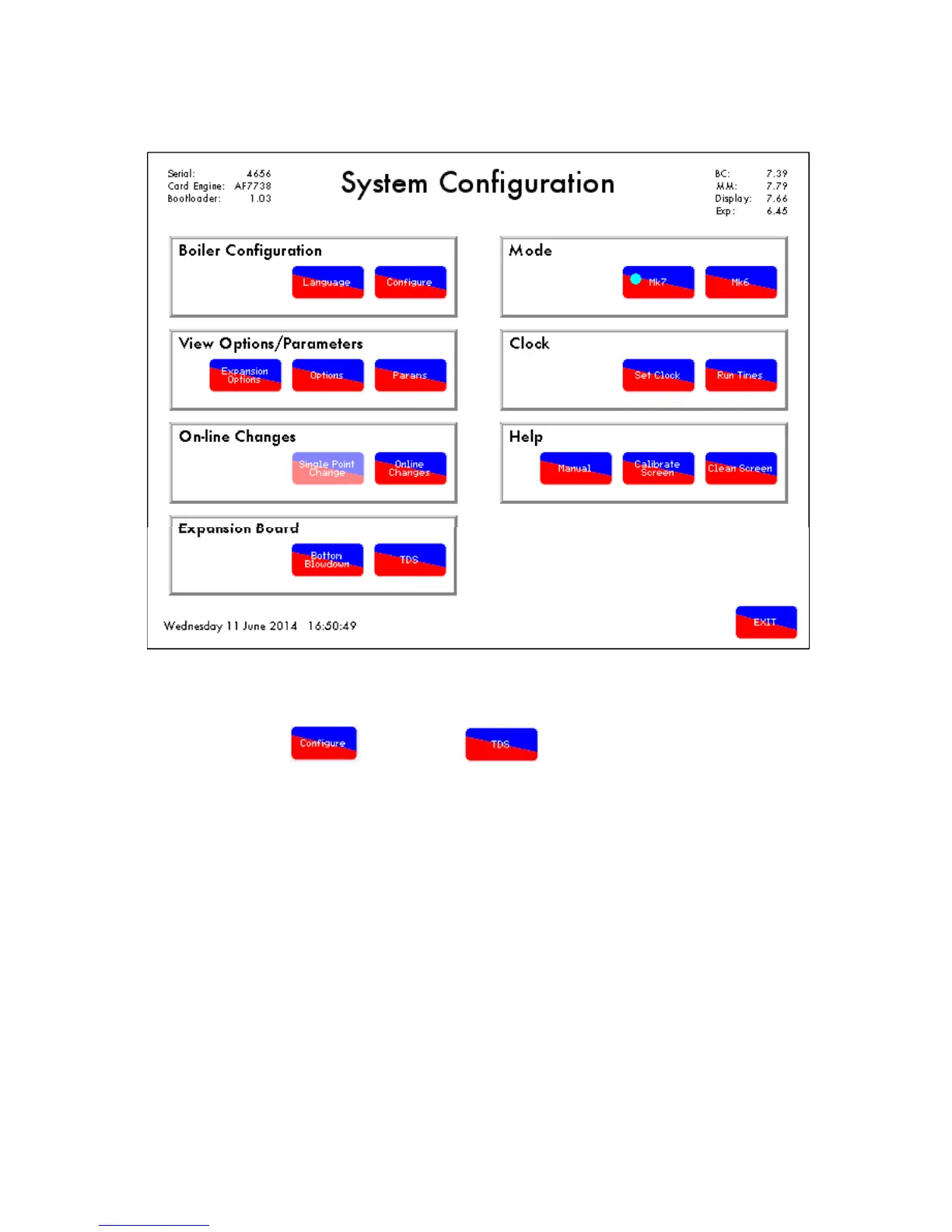

Figure 4.2.i System Configuration
Once the expansions have been set for the TDS prob
e, the probe must be ca
librated. While the M.M.
is in Run mode, press
and
then press
in the System Configuration screen as in
Figure 4.2.i.
4 Total Dissolved Solids Management
Page 52
Mk7 Manual: Expansion Board Set-Up Guide
October 2014
61
63
