2.5 Integrating Other Water Level Controls with Autoflame
It is possible to retain the site’s existing float type level controls. Autoflame have allocated 3 terminals
to accommodate “high”, “1st low” and “2nd low”. This is a user selectable facility which can be
accessed by the expansion options. Shown below is the connection schematic which shows how this
can be implemented if required.

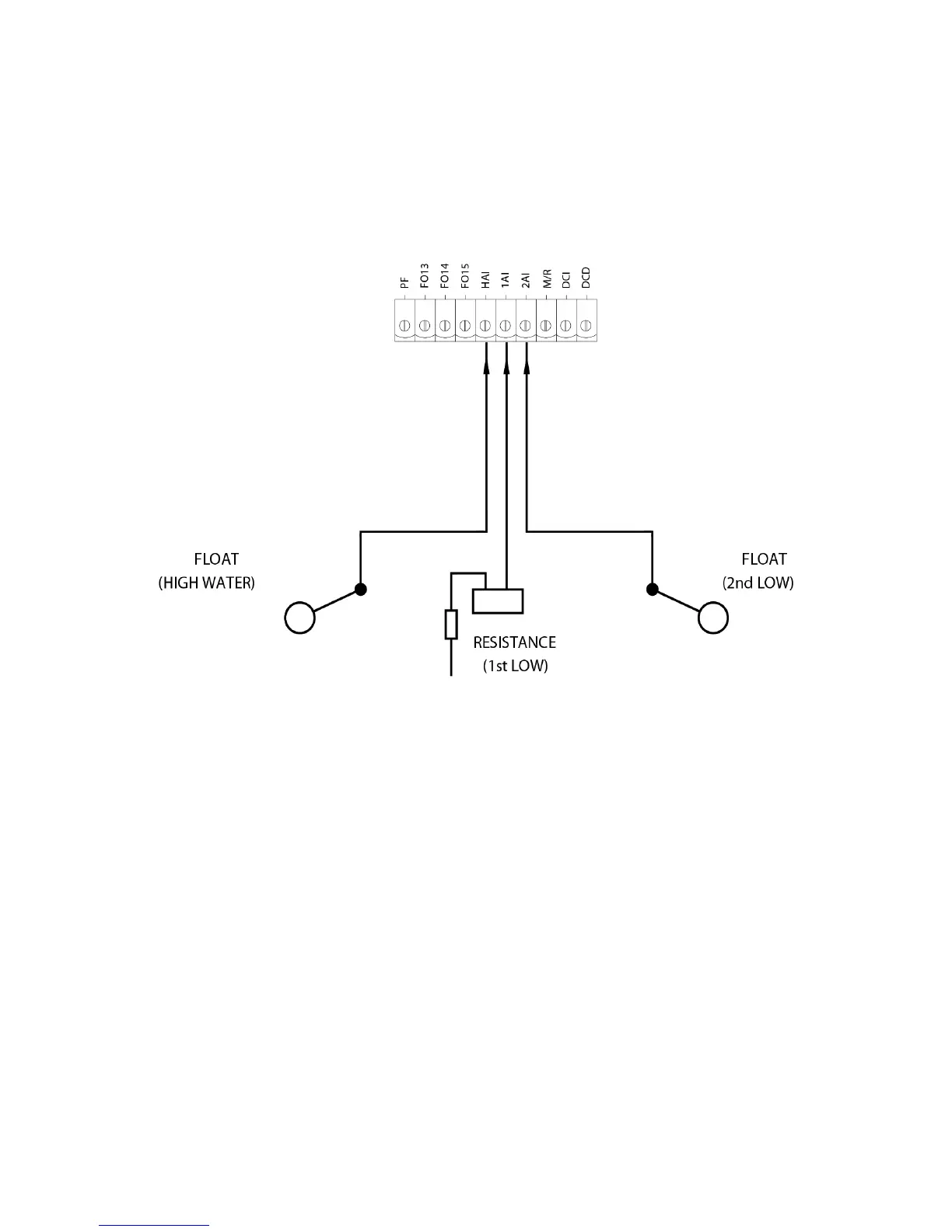

Figure 2.5.i External Water Level
Note: If any of the three inputs are not being used, a line voltage should be inputted to stop the unit
alarming.
