AUTOFLAME Mk7 User Manual

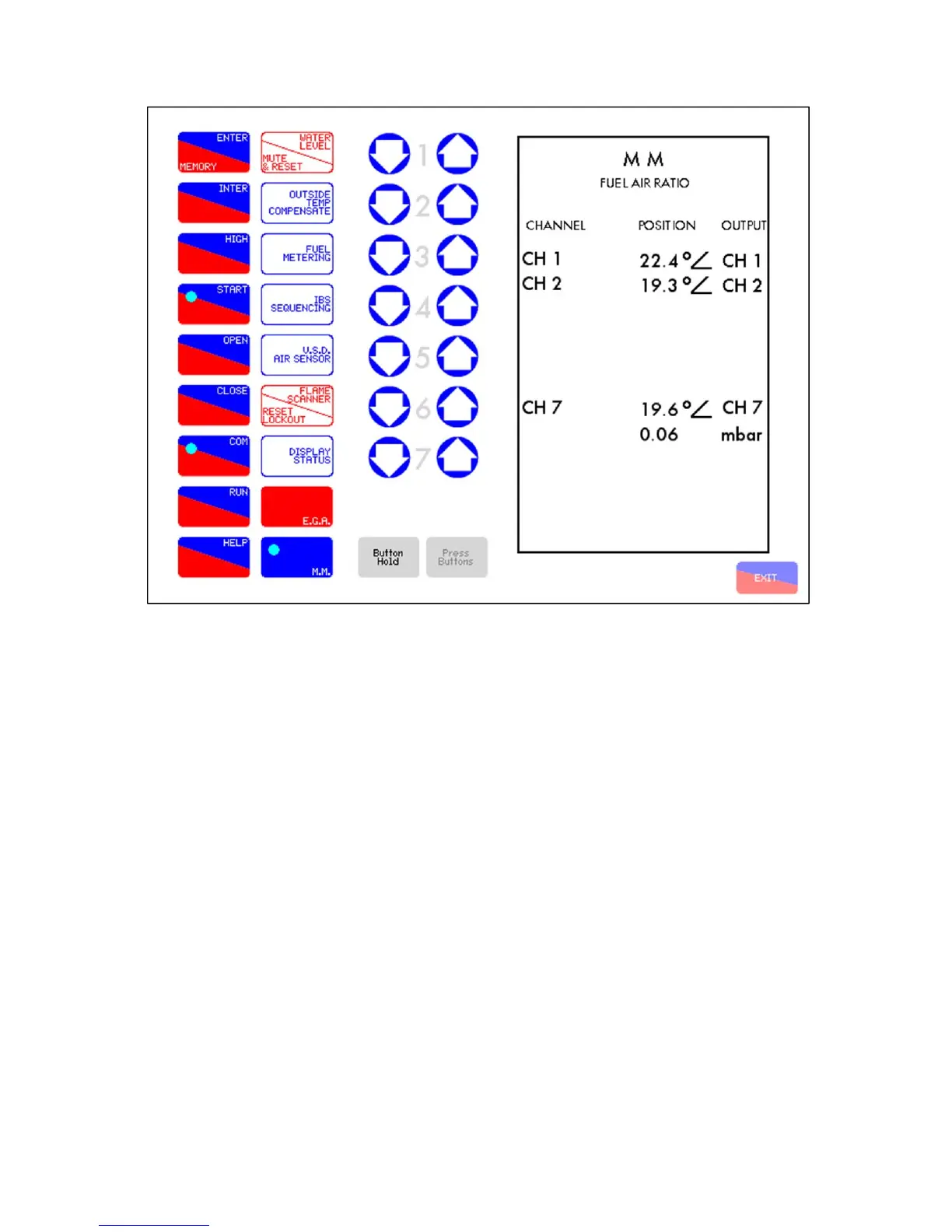

Figure 7.4.vii Start Position
9. Once all the required inter points have been entered, choose a low fire START position, press
Enter and then press Run to save the combustion curve.
Note: It will not be possible to adjust CH 7 below its minimum angle as set in expansion option 40.3.
if the angle is too high, either enter the position and adjust in a single point change once the option has
been changed or change the expansion option and start commissioning from the beginning.
7 Draft Control
Page 124
Mk7 Manual: Expansion Board Set-Up Guide
October 2014
