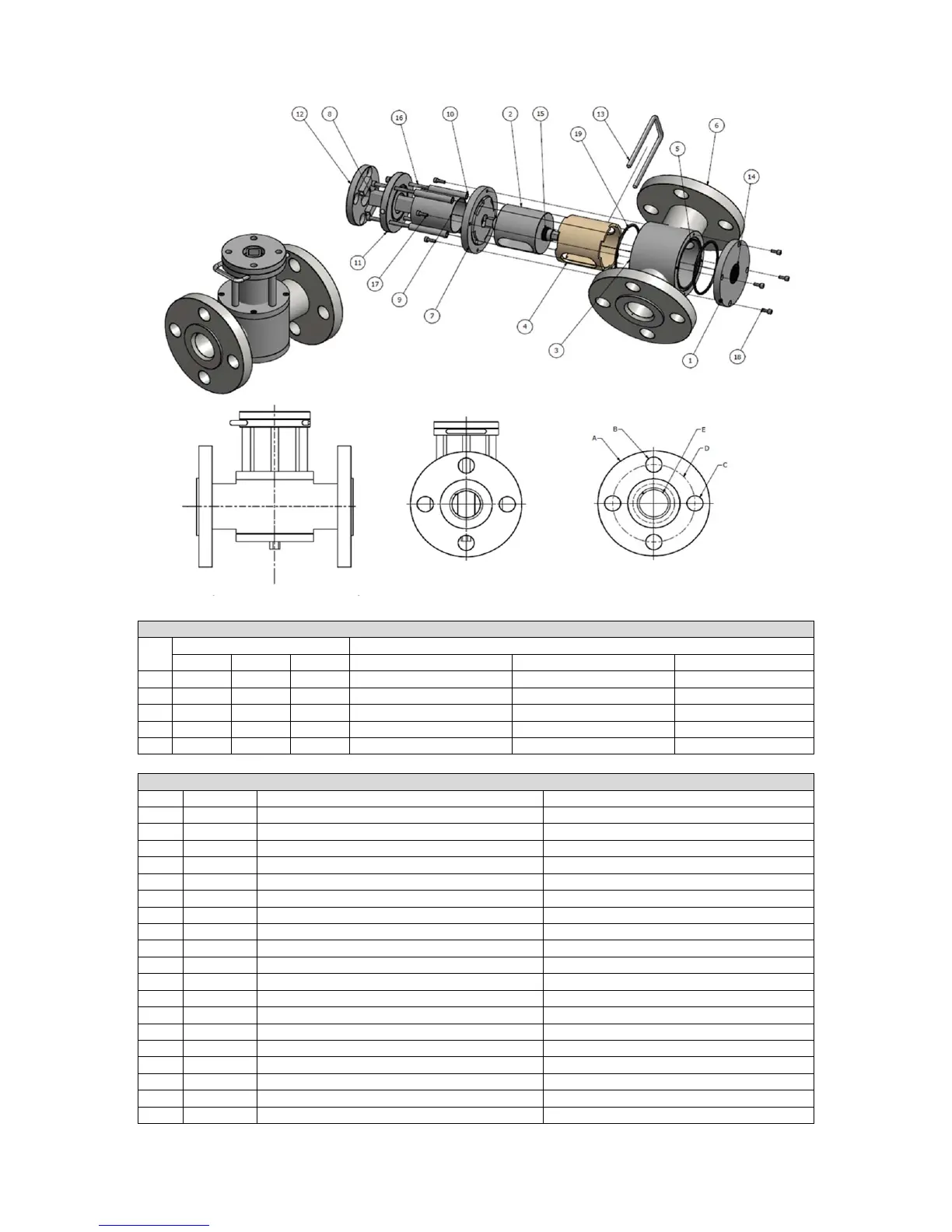

Flange Dimensions
PN16 ANSI 300lb
1” 1.5” 2” 1” 1.5” 2”
A 115 150 165 123.825(4- 7/8”) 155.575(6- 1/8”) 165(6- 1/2”)
B 14 18 18 19.05(3/4”) 22.225(7/8”) 19.05(3/4”)
C 4 4 4 4 4 4
D 85 110 125 88.9(3-1/2”) 114.3(4- 1/2”) 127(5”)
E 34.5 49.5 61.5 34.544(1.36”) 49.53(1.95”) 61.976(2.44”)
Parts List
Item Quantity Part Number Material/ Description
1 1 Bottom plate 316 Stainless Steel
2 1 Bobbin 316 Stainless Steel
3 1 Body 316 Stainless Steel
4 1 Liner Bronze
5 2 Stand pipe 316 Stainless Steel
6 2 Connection in flange 316 Stainless Steel
7 1 Top plate 316 Stainless Steel
8 1 Drive shaft Stainless Steel
9 1 Spacer tube Stainless Steel Permatube
10 4 Top plate pillar Stainless Steel
11 1 Servomotor plate lower Stainless Steel
12 1 Servomotor top plate Stainless Steel
13 1 Locking pin Stainless Steel
14 2 Deep groove roller bearing, double shield Hardened Steel
15 2 Bobbin o-ring seal Aflas
16 4 ANSI B18.3.1M – M5x0.8 x 70 Forged Socket Head Cap Screw- Metric
17 4 ANSI B18.3.1M – M4x0.7 x 12 Forged Socket Head Cap Screw- Metric
18 4 ANSI B18.3.1M – M4x0.7 x 10 Forged Socket Head Cap Screw- Metric
19 2 Body o-ring seal Aflas
