Adjust Sensor
Activation failed because the analogue sensor was not
properly positioned => adjust it (closer or further away
from the cam) so the measurement is included in the
working range (= between the min. and the max. set in
the Min Sensor Max parameter below).
Value 0 Detect
Activation failed because the analogue sensor returned
a measurement of zero.
As this value is invalid, check:
 the sensor’s wiring (in the sensor as well as on the
control board's connector blocks);
 whether is sensor is too close to the cam;
 whether the sensor is functioning: LED on the sensor
is illuminated and the value measured is displayed in
the Min Sensor Max parameter below.

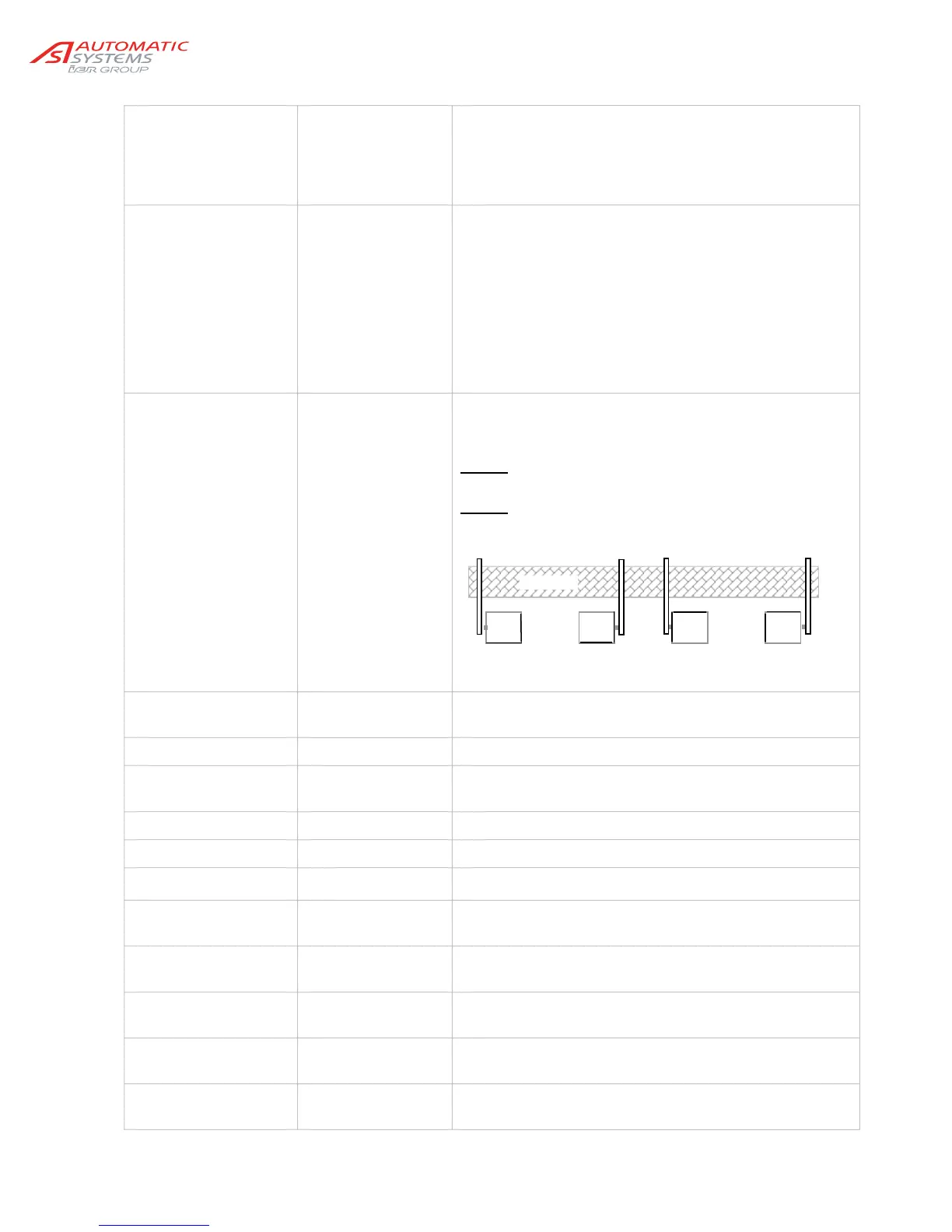

Barrier Type
Definition of the equipment type; this allows the program
to automatically modify the opening and closing motor
power curves.
Note 1
: The equipment type is stated on the reference
plate, inside the housing.
Note 2
: to change from barrier solution 1 or 2 to solution
3 or 4 (illustration below), 2 phases of the motor have to
be inverted.
229 Standard
(by default)
Parameter to select for a BL229 Standard.
229 Highway
Parameter to select for a BL229 Highway.
1x – 2x – 3x – 5x
Parameter to select for a BL16, BL32, BL33, BL52,
BL53, BP56, RSB70, or RSB71.
BLG77
Parameter to select for a BLG77.
BL 223
Parameter to select for a BL223.
RSB 70 & 71
Parameter to select for a RSB 70 or RSB 71.
BL 40 SR
Parameter to select for a BL40 without automatic
opening of the arm in case of power cut.
BL40 AVR
Parameter to select for a BL40 with automatic opening
of the arm in case of power cut.
BL 41 SR
Parameter to select for a BL41 without automatic
opening of the arm in case of power cut.
BL 41 AVR
Parameter to select for a BL41 with automatic opening
of the arm in case of power cut.
BL 43 SR
Parameter to select for a BL43 without automatic
opening of the arm in case of power cut.
door
door
door
door
door
door
door door
road
Solution 1
Solution 2
Solution 3
(standard)
Solution 4
