Autonics LP-S044 - Ground Wiring

2 Installation
© Copyright Reserved Autonics Co., Ltd. 25

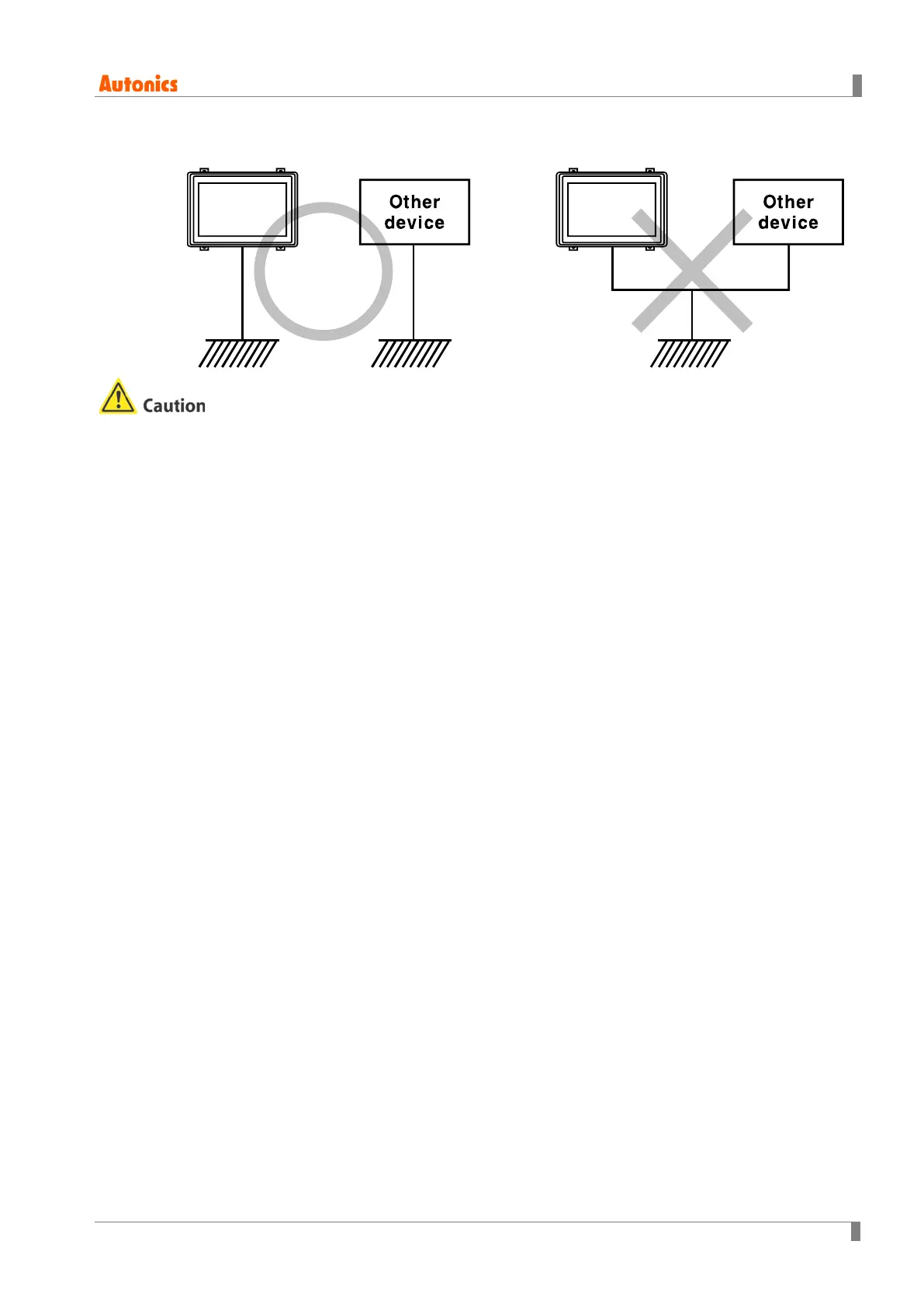

2.2.1 Ground wiring
Caution for ground wiring
 Connect max. 100Ω of ground resistance.
 Diameter of cable for ground wiring connection should be over than 2 ㎟.
 As above figure, separate from other device’s ground wire.
