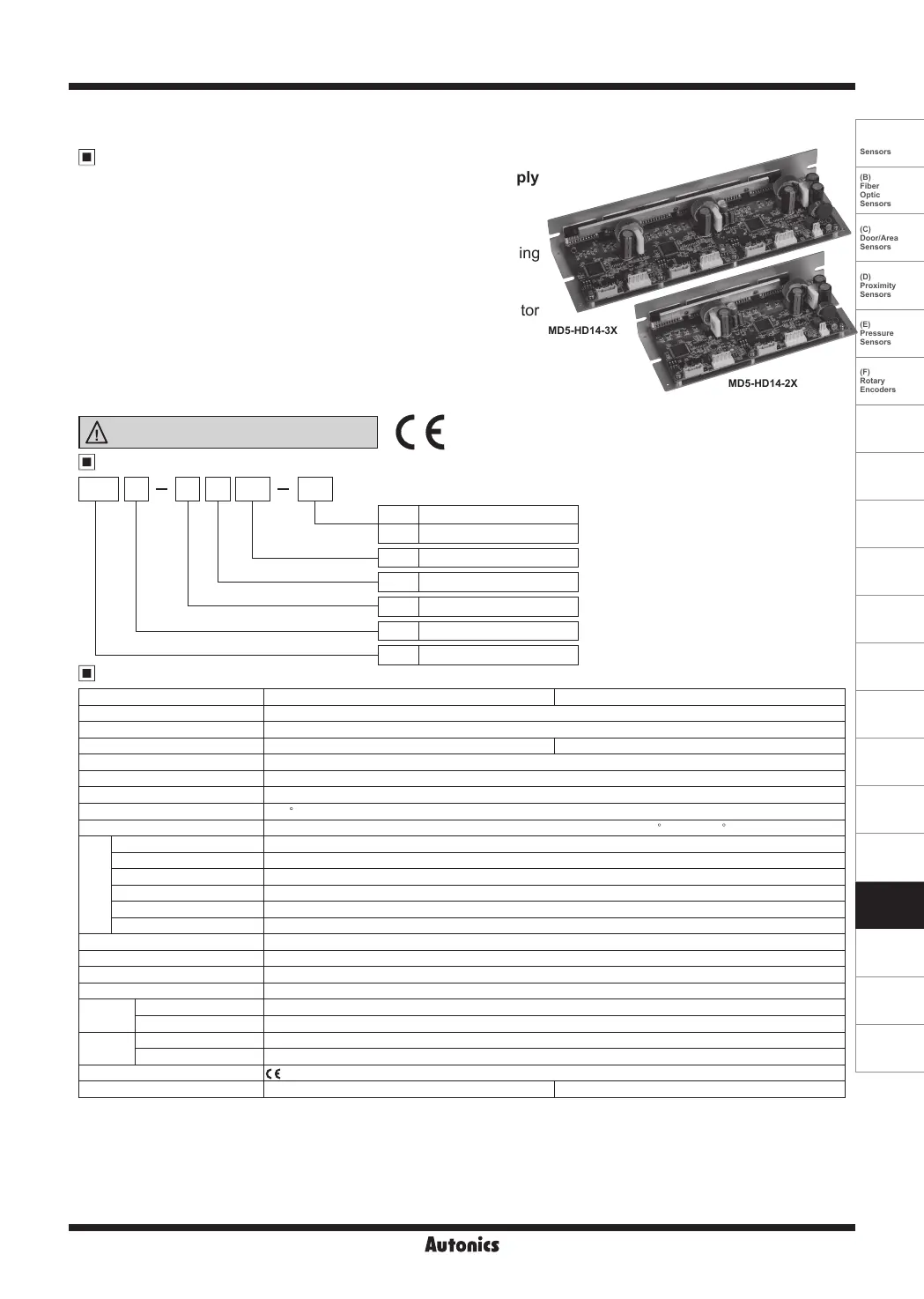

MD5-HD14-3X
MD5-HD14-2X
1: Built-in zero point excitation output
signal is optional.
Features
Low Noise, Low Vibration Multi Axis 5-Phase Stepper Motor Driver
Simultaneous operation of 2, 3-axis by single power supply
20-35VDC
● Small, light weight and advanced quality by custom IC and
surface mounted circuit
● Realizing low noise, low vibration rotation with microstep-driving
● Low speed rotation and high accuracy controlling
with microstep-driving
● Max. resolution - 250 division: In case of 5-phase stepper motor
of which basic step angle is 0.72°, it enables to control up to
0.00288° per pulse
● Includes auto current down and self-diagnosis function
● Photocoupler input insulation method to minimize the effects
from external noise
Ordering Information
Specifications
Item
Motor phase
Step type (resolution)
Power supply
RUN current
Axis
MD 14 2X5 H D
2X 2-axis
3X 3-axis
1
14 1.4A/Phase
D 20-35VDC
H Micro step (250-division)
5 5-Phase
MD Motor Driver
Please read “Safety Considerations” in operation
manual before using.
Model MD5-HD14-2X MD5-HD14-3X
Power supply
1
20-35VDC
Allowable voltage uctuation range
90 to 110% of the rated voltage
Max. current consumption
2
5A 7A
RUN current
3
0.4-1.4A/Phase
STOP current 27 to 90% of RUN current (set by STOP current switch)
Drive method Bipolar constant current pentagon drive
Basic step angle 0.72 /Step
Resolution 1, 2, 4, 5, 8, 10, 16, 20, 25, 40, 50, 80, 100, 125, 200, 250-division (0.72 to 0.00288 /Step)
Input pulse
characteristic
Pulse width Min. 1μs (CW, CCW), Min. 1ms (HOLD OFF)
Duty rate 50% (CW, CCW)
Rising/Falling time Below 130ns (CW, CCW)
Pulse input voltage [H]: 4-8VDC
, [L]: 0-0.5VDC
Pulse input current 7.5-14mA (CW, CCW), 10-16mA (HOLD OFF, ZERO OUT)
Max. input pulse frequency
4
Max. 500kHz (CW, CCW)
Input resistance 270Ω (CW, CCW), 390Ω (HOLD OFF), 10Ω (ZERO OUT)
Insulation resistance Over 100MΩ (at 500VDC megger, between all terminals and base)
Dielectric strength 1,000VAC 50/60Hz for 1min (between all terminals and base)
Noise immunity ±500V the square wave noise (pulse width: 1μs) by the noise simulator
Vibration
Mechanical 1.5mm amplitude at frequency 5 to 60Hz (for 1 min) in each X, Y, Z direction for 2 hours
Malfunction 1.5mm amplitude at frequency 5 to 60Hz (for 1 min) in each X, Y, Z direction for 10 min
Environ-
ment
Ambient temp. 0 to 40
, storage: -10 to 60
Ambient humi. 35 to 85%RH, storage: 35 to 85%RH
Approval
Weight
5
Approx. 446g (approx. 292g) Approx. 597g (approx. 411g)
1: When using over 30VDC power supply, torque characteristics are improved but the driver temperature raise. The unit should be installed
at the well ventilation environment.
2: Based on ambient temperature 25
, ambient humidity 55%RH.
3: RUN current varies depending on the input RUN frequency and max. RUN current at the moment varies also varies depending on the load.
4: Max. input pulse frequency is max. frequency to be input and is not same as max. pull-out frequency or max. slewing frequency.
5: The weight includes packaging. The weight in parenthesis is for unit only.
Environment resistance is rated at no freezing or condensation.
5-Phase Stepper Motor Driver (1.4A/Phase, DC Power, Multi-Axis)
