AVANT 528 - Dashboard Layout and Indicators

26
500 Series

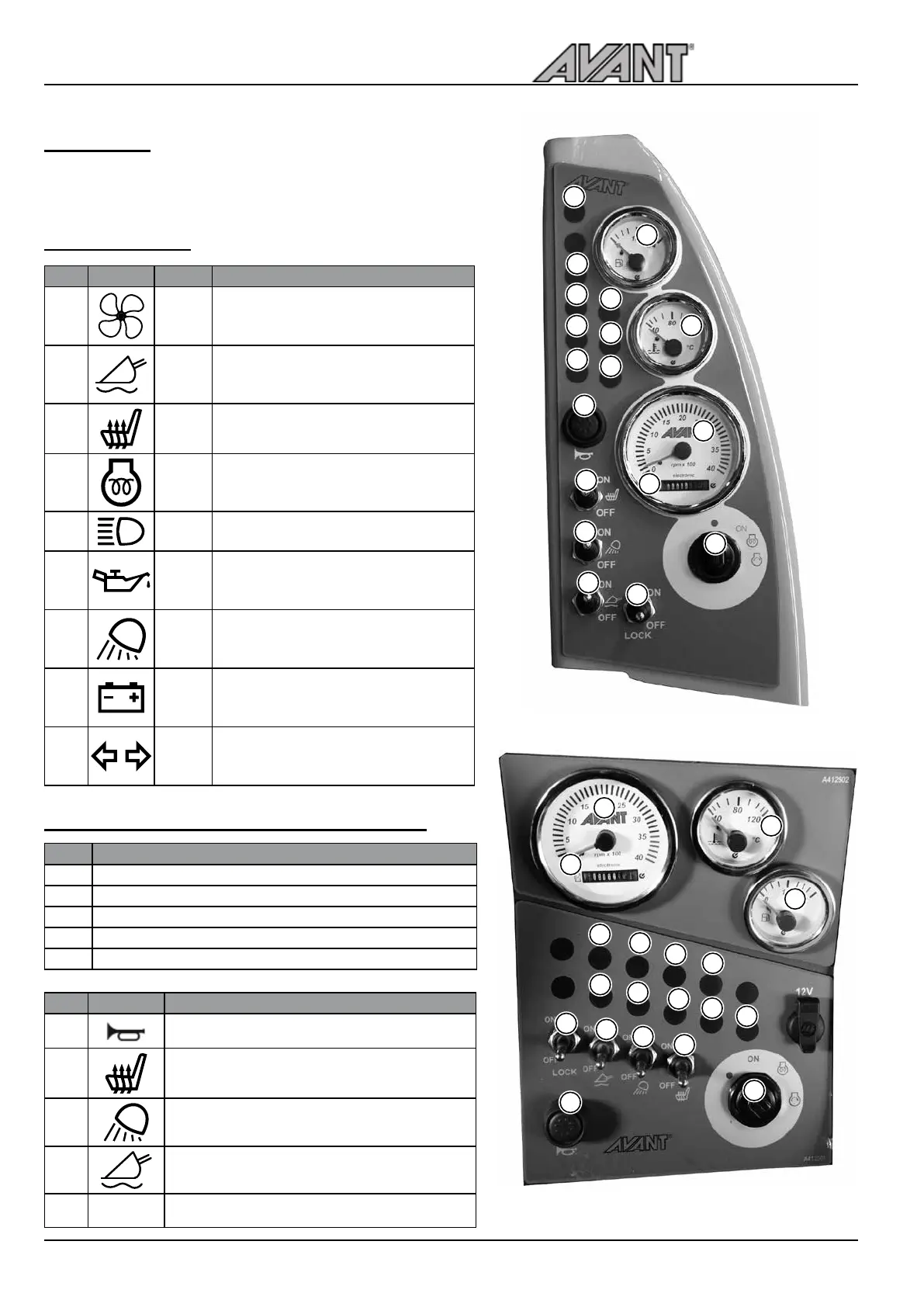

Dashboard
On the dashoard on the right side of the driver’s seat are mounted
gauges, indicators and switches which help you to control the loader.
Operating instructions
2
5
3
6
7
1
19
16
8
11
15
4
17
13
18
7
16
19
18
1
6
13
12
17
5
2
3
4
8
15
Cab LX /DLX
ROPS
Indicator lights
Ref. Symbol Color Remarks
1
Red
Hydraulic oil cooler fan fuse
Hydraulic oil cooler malfunction.
See page 57
2
Yellow
Boom oating on
(optional equipment) Boom oating
See page 30
3
Green Seat heater on
4
Yellow Glow plug indicator
5
Blue
High beam headlights on
Road trafc light kit only
6
Red
Oil pressure low warning
Stop engine immediately to avoid
severe engine damage. Contact service.
7 Green
Work lights on
Work light switch at lower part of
dashboard
8 Red
Charge indicator
Alternator low charging voltage
warning. Contact service.
9 Green
Turn signal indicator
Road trafc light kit only
Cab LX/DLX dashboard only
Gauges and switches on the dashboard
Ref Gauge
10 Fuel gauge
11 Thermometer - Engine coolant temperature
12 Tachometer - Engine RPM
13 Hour meter
14 Ignition switch - See page 35
Ref. Symbol Switch
15
Signal horn
16
Seat heater switch
17 Work light switch
18
Boom oating switch (optional extra)
19
LOCK
Drive release valve switch See page 29
