42
500 SeriesOperating instructions

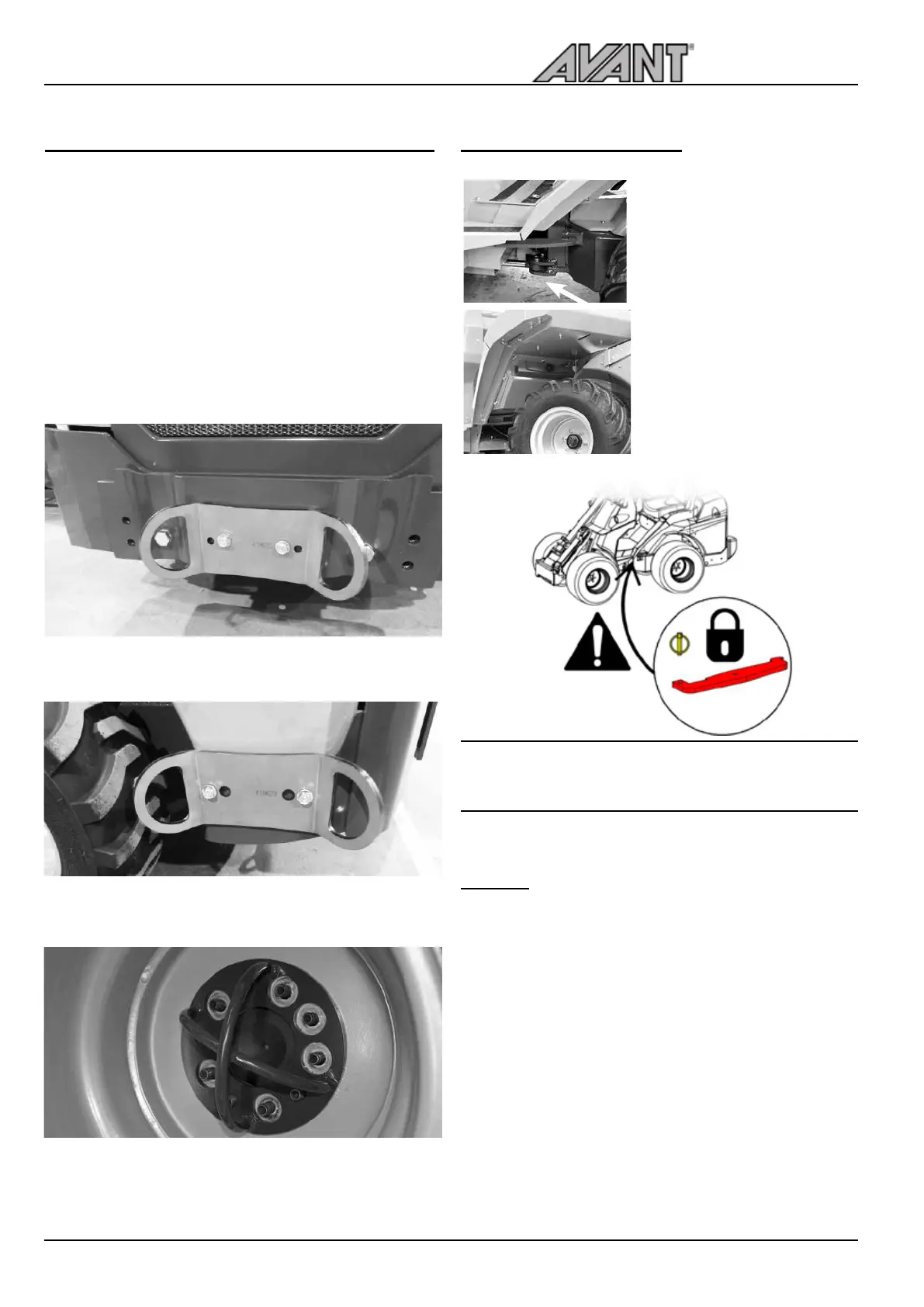

Transporting instructions and tie down points
On the rear frame, the tie down points are located. on the
sides, and on the front frame close to the boom. Optionally
available are the rear bumper and / or behind the rear
wheels installed tie down brackets (Art. A418746), in which
the straps and slings can be attached.
Mount the articulation frame lock, on the machine during
transports. Lower the boom down and take off the battery
disconnect switch. Remember to remove the frame lock
after transport!
Optional equipment for frequent trailer transport
If transporting the loader frequently on a trailer, optional
tie down brackets are available for easier load securing.
Tie down bracket A418623 installed at the rear bumper or
counterweight
Tie down bracket A418623 installed at the side of rear
frame. For side installation, two brackets are needed.
Tie down bracket on wheel hub A423091
Installing of frame lock
Always lock the frame lock before transporting or lifting the
loader. Also remember to remove the frame lock and test
the steering of the loader after transport.
Towing
If absolutely necessary, the loader can be towed with a
rigid tow bar, by releasing the hydraulic drive circuit. Max.
allowed towing speed is 3 km/h, towing distance max.
200 m.
When the drive circuit is released for towing, the loader
has no brakes. Before releasing the drive circuit make sure
that the parking brake has been engaged, and release the
parking brake only after a rigid tow bar has been connected.
The frame lock is located over
the articulation joint, under the
seat base, and it is fastened
with a bolt.
The frame can be locked with
the red frame lock. This way
the loader frame stays straight
during e.g. transportation.
Install the frame lock in the
holes on the front and rear
frame and secure it with the
cotter pin.
