500 Series Operating instructions
Extra auxiliary hydraulics outlets, front
and rear (option)
In addition to the standard auxiliary hydraulics outlet, the
loader can be equipped with a double acting extra outlet.
The extra hydraulic outlet can be tted either to the front of
the loader or to the rear, and the couplers are conventional
type quick couplers.
The loader can be equipped with either the rear hydraulics
outlet or with the extra front outlet – but not with both.

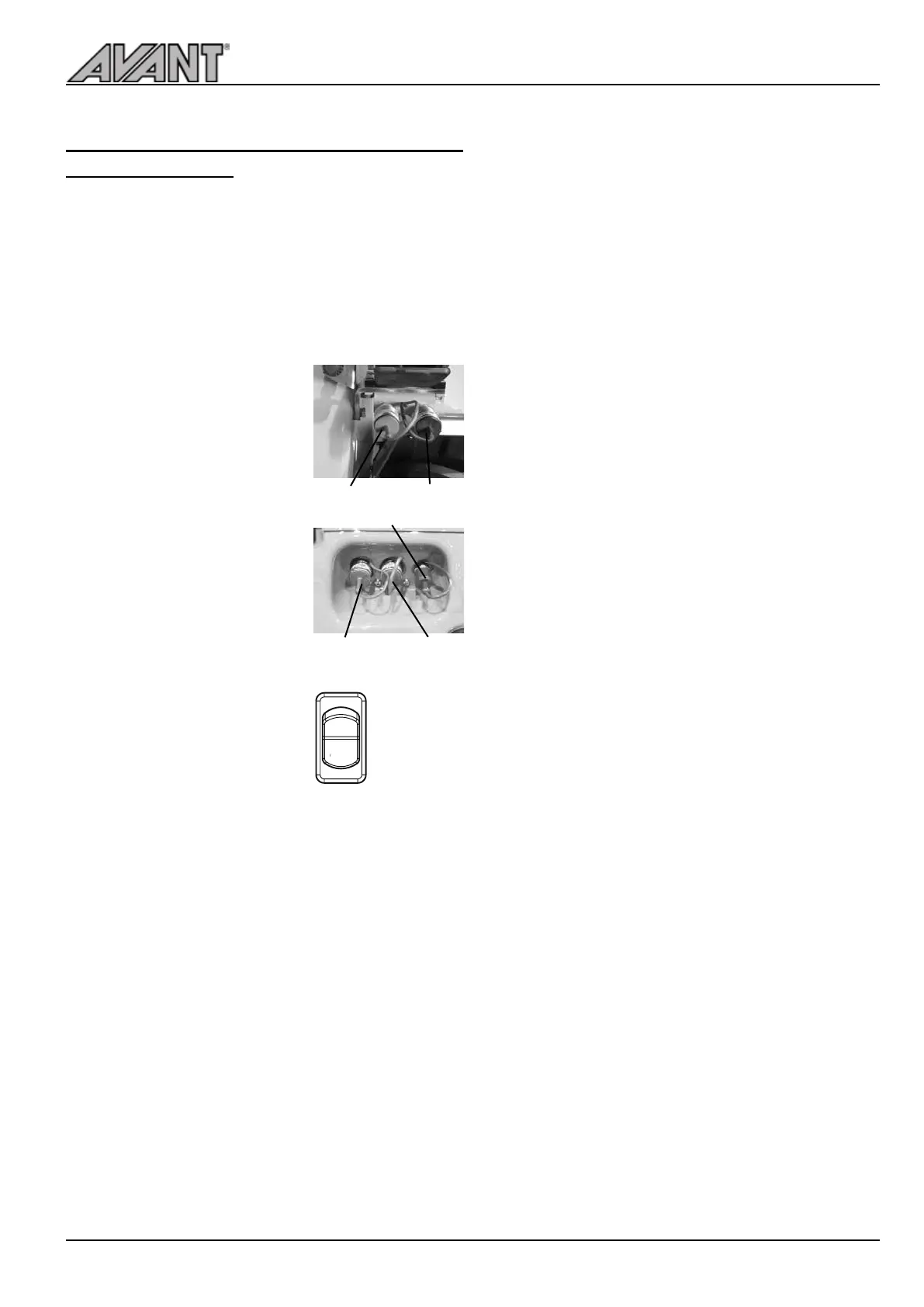

1. Extra auxiliary hydraulics
in the front
• Quick couplers are located
under the multi connector
2. Quick couplers in the rear
• Quick couplers are located on
top of the radiator.
If the extra auxiliary hydraulic
outlets is installed to the rear of
the loader, the outlet is double
acting type.
To use the extra auxiliary
hydraulic outlet:
The installed extra outlet
is controlled with the same
lever as the standard auxiliary
hydraulics.
To choose which is used, use
the switch on the dashboard:
1. Standard auxiliary hydraulics outlet (multiconnector)
2. Optional extra auxiliary hydraulics, front or rear
pressure 1
pressure 2
pressure 1
pressure 2
tank line
2
1
Front/rear
auxiliary
hydraulics
selector
switch
(option)
