500 SeriesOperating instructions

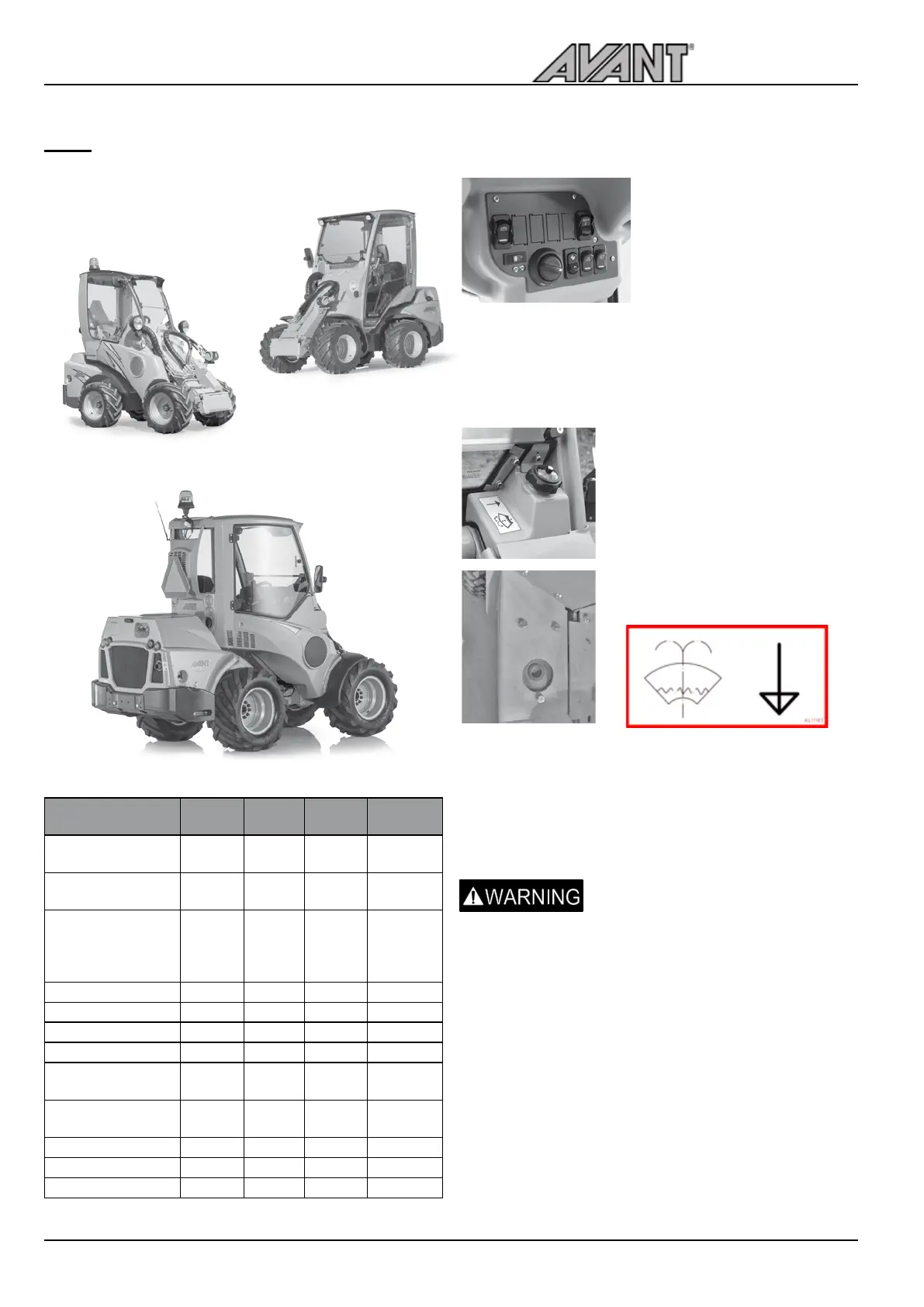

Cabs
AVANT 520/528 can be equipped, as an option, with cab L,
LX or DLX. All cabs are ROPS and FOPS certied.
Cab L Cab LX
Cab DLX
Switches in cab DLX
On CAB DLX some the switches
shown in detail on page 24 are
located on the control panel up
to the right. The panel includes
switches for
• heater fan
• hydraulic attachment coupling
plate
• emergency blinkers
• warning beacon.
Windscreen washer and wiper
Windscreen washer tank and ller
cap on machines with cab LX and
DLX are located outside the cab, in
front of the windscreen on the left.
On machines with cab L the tank is
located behind the front left wheel and
the ller opening is on the footboard.
Defrosting/Demisting
• Turn heater fan to position 4
• Set temperature to warmest possible
•
Direct front vents towards the windows. Close other vents.
Do not drive unless basic visibility
in all directions is achieved. Allow
the loader to warm up properly.
ROPS
canopy
Cab L Cab LX Cab DLX
ROPS & FOPS
Certied
x x x x
Mounts on standard
rops frame
N/A x - -
Windscreen,wiper
and washer, right
side window and
rear window
- x x x
door and heater - - x x
Front lights x x x x
Road trafc light kit Option Option Option x
Work light kit Option Option Option x
Panel interior, fab-
ric seat, radio
- - - x
Front/rear mud-
guards
-/Option -/Option x/Option x/x
Seat heater x x x x
Seat belt 2-point 2-point 3-point 3-point
Air suspension seat - - - Option
