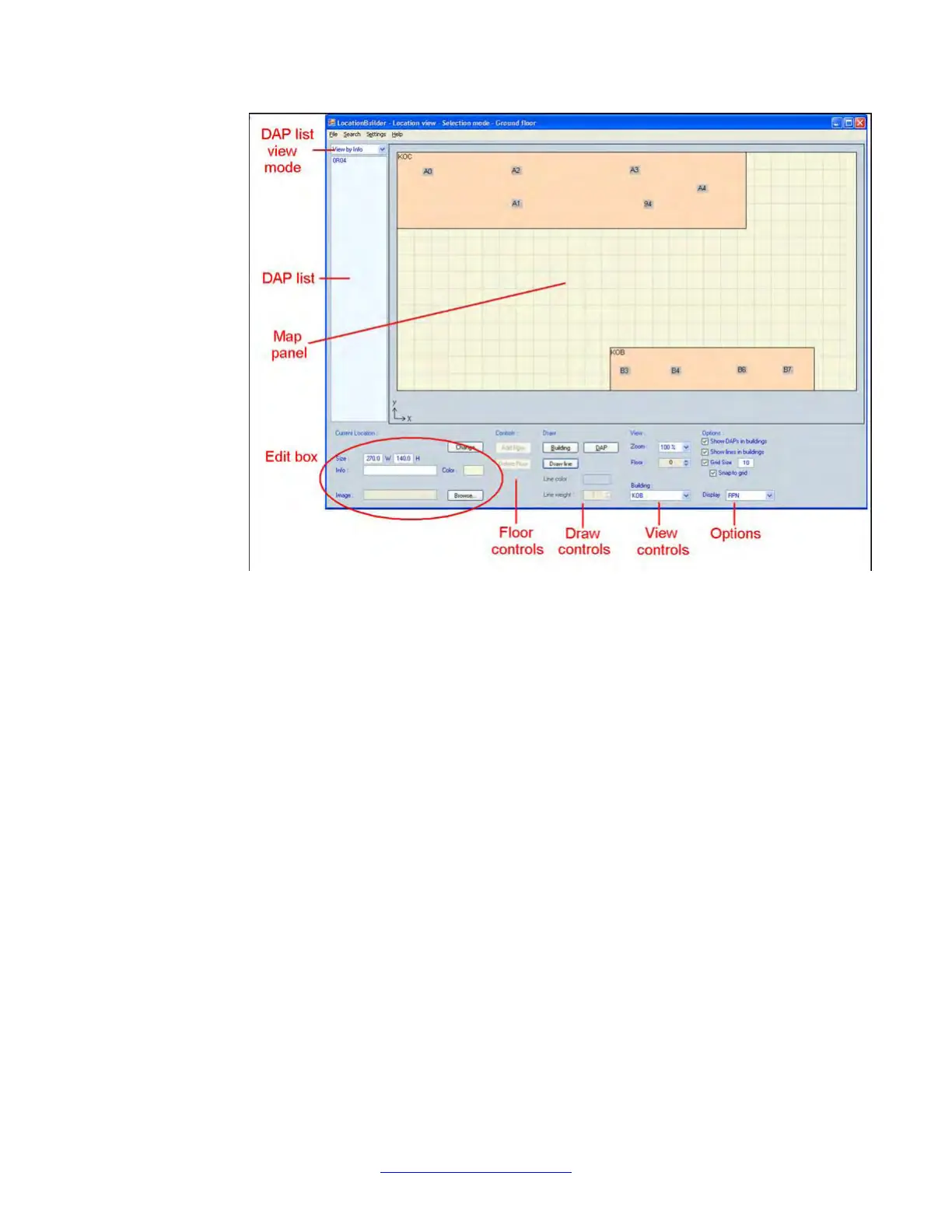

When the Location Builder initially loads, all fields are blank. The preceding figure
shows example data in the fields.
2.
The main window contains the following component:
• Use the Map pane to view a map of the area. There are two view modes:
- Location view shows one whole floor with multiple buildings visible.
- Building view shows a floor inside a building.
Switch between Location view and Building view by double-clicking a building.
You can select either a DAP, a building, or a line.
Right-click the map to access menu commands to perform on the selected
item.
The Location Builder uses coordinates for the localization of DAPs, buildings,
and lines. The coordinates of the mouse pointer appear if you hover the mouse
pointer over the map. The origin (0,0) of the coordinate system is in the bottom
left corner of the map.
• Use the DAP list view mode pane to select the view mode for the DAP list:
- RPN numbers
- MAC addresses
- Info field
The DAP list shows a list of DAPs not yet on the map. You can drag these
DAPs onto map.
