Installing a 4720 DAP with external antennas
Before you start installing the cabinet, make sure you have the installation materials as
described below
.
Also make sure you have the 4720E version together with the directional antenna and two
equal cables for connecting the directional antenna to the 4720E.
Installing the Outdoor Box with 4720E with directional antenna
1. Open the Cabinet. To open the cabinet, use a screw driver that fits into the four
plastic screws at the front side of the cabinet. Unfasten the screws.
2. Remove the cover from the cabinet. The contents of the cabinet is shown in the
figure

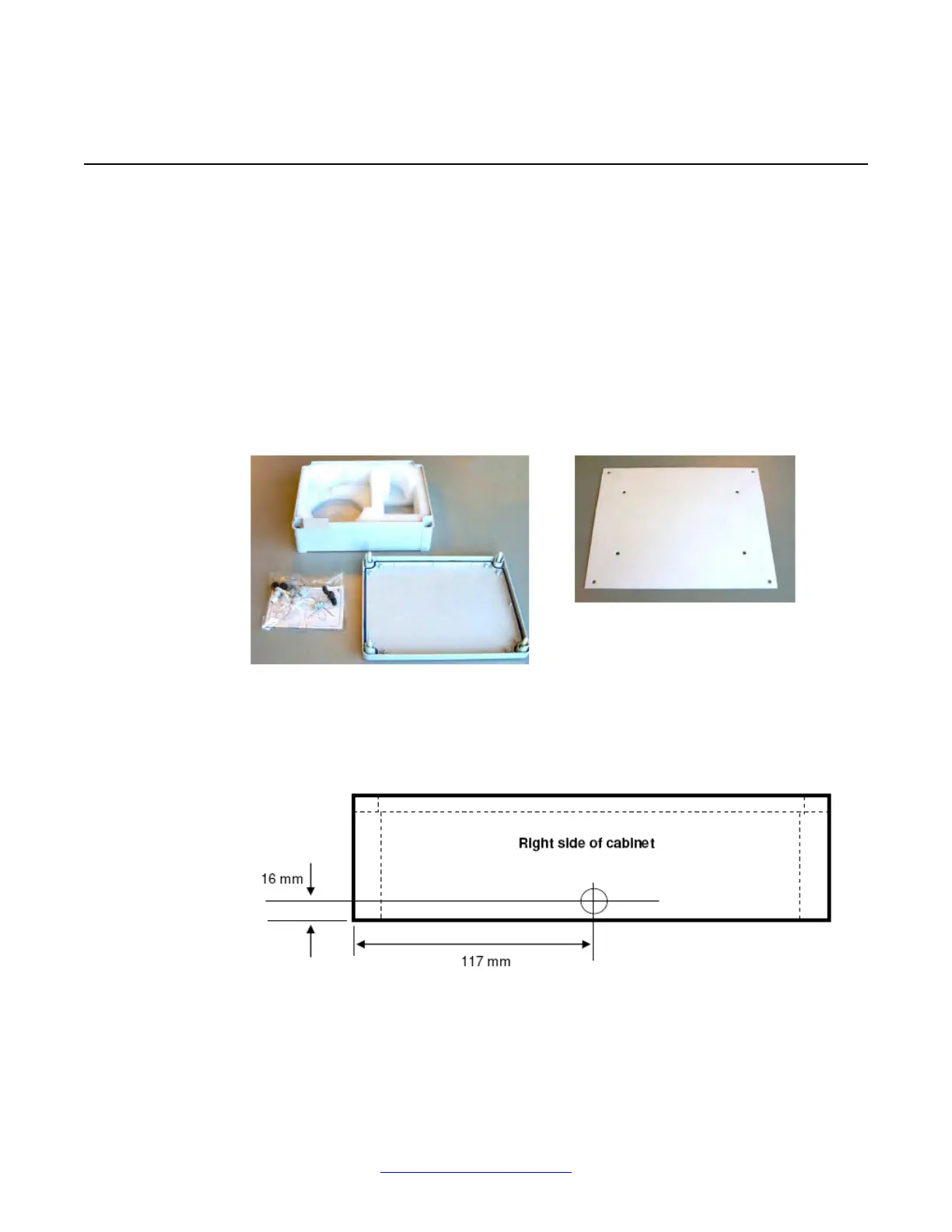

Figure 70: Contents of the box
3. Remove the foam contents from the cabinet.
4. At the right hand side of the cabinet, you will have to drill a hole for the cable inlet.
Mark the hole as follows:
Figure 71: Position of the hole in the cabinet
5.
Drill a hole for the swivel. Use a 12 mm drill.
Install the external housing
222 SIP DECT Fundamentals October 2012
Comments? infodev@avaya.com
