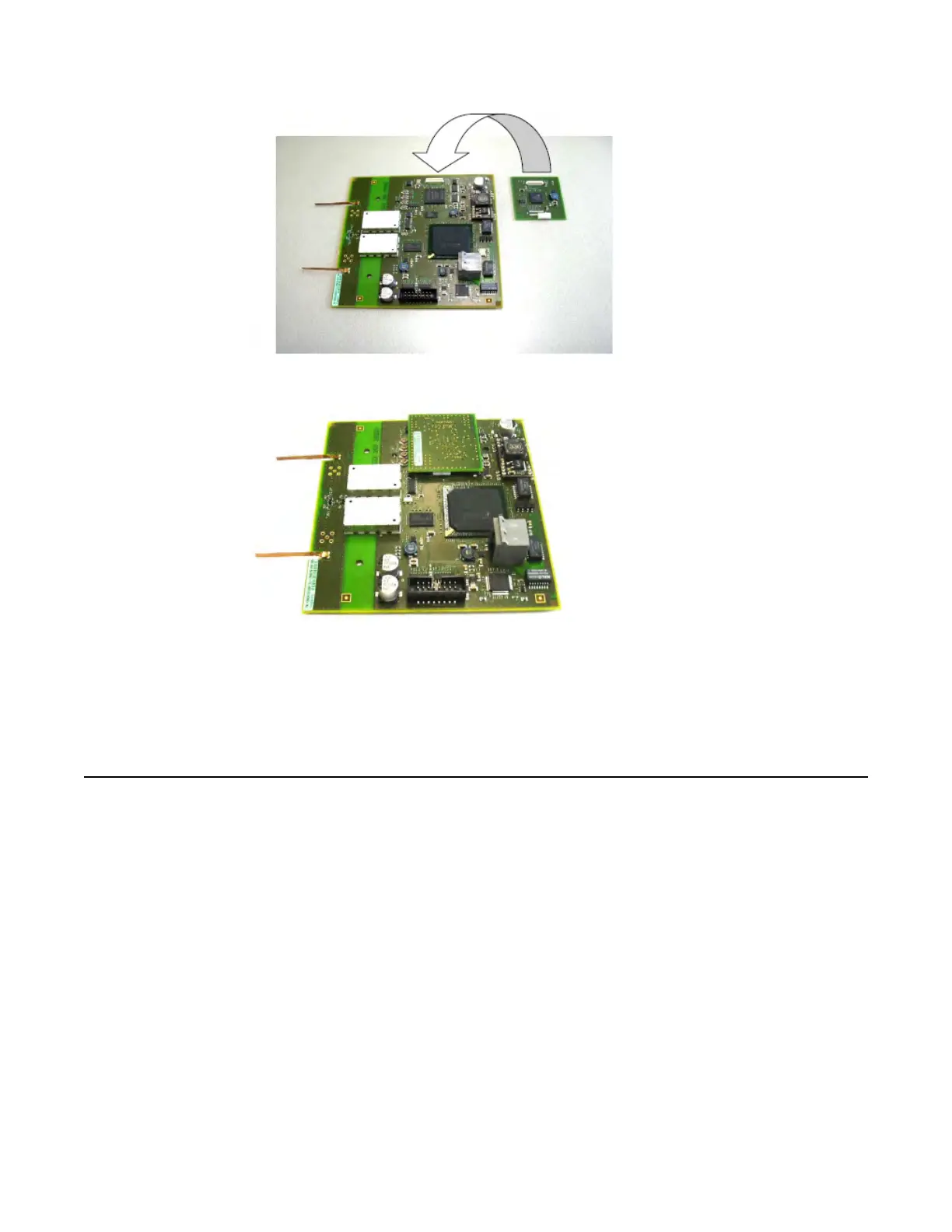

Figure 40: Mounting the G.729 Daughter Board onto the Main board
Figure 41: G.729 Daughter Board on the Main Board
6. Put the 4720 DAP together by mounting the PWB into the cabinet and assembling
the cabinet. Do not forget to mount the two screws back into the rear side of the
cabinet.
Adjusting the antenna position
Important:
You only need to change the antenna position when you mount the 4720 DAP horizontally.
In all other cases, you do not need to change the antenna position.
Adjusting the antenna position
SIP DECT Fundamentals October 2012 177
