Issue 2.1 June 2006 1225
Removing the server from the rack
!
DANGER
:
DANGER: The Avaya S8720 Media Server weighs between 20-27kg (47-60 pounds). Do
not remove the server from the rack by yourself.
To remove the server from the rack:
1. Remove and label all cables from the front and back panels of the server.
2. Release the two locking clips (Note 1 in Figure 104
) on each side of the server.

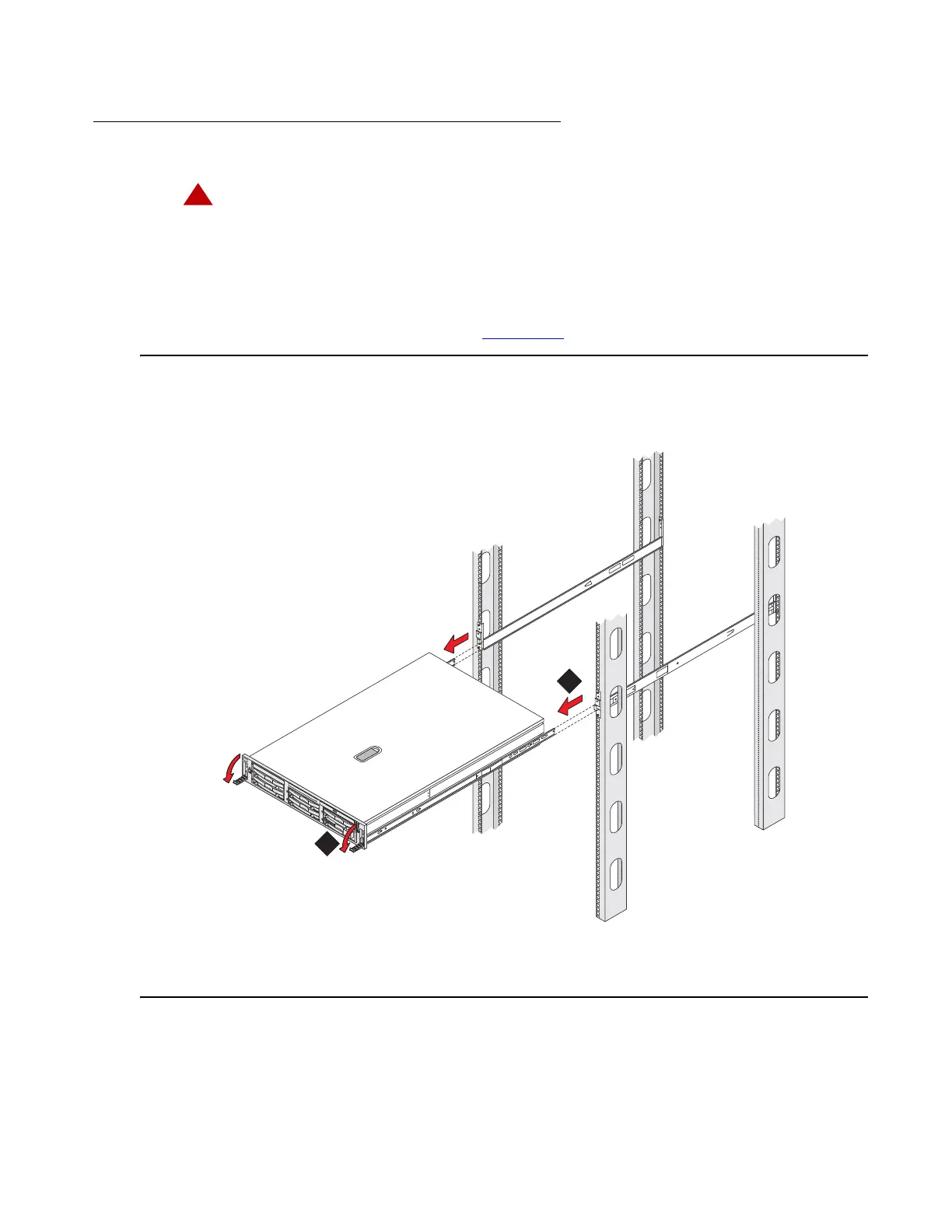

Figure 104: Remove the server from the rack
3. Pull the server straight out of the rails until it is completely free and set it on the antistatic
mat.
Figure notes:
1.
Release both latches
2.
Slide the server out of the rails
h3df87rk LAO 101905
U
I
D
2
1
0
1
1
0
d
i
s
c
C
O
M
P
A
C
T
5
4
5
4
S
i
m
p
l
e
x
D
u
p
l
e
x
ch
ch
2
1
3
2
3
2
1
2
