19
2PRODUCT DESCRIPTION
2.1 OVERVIEW
ALS
104
GB

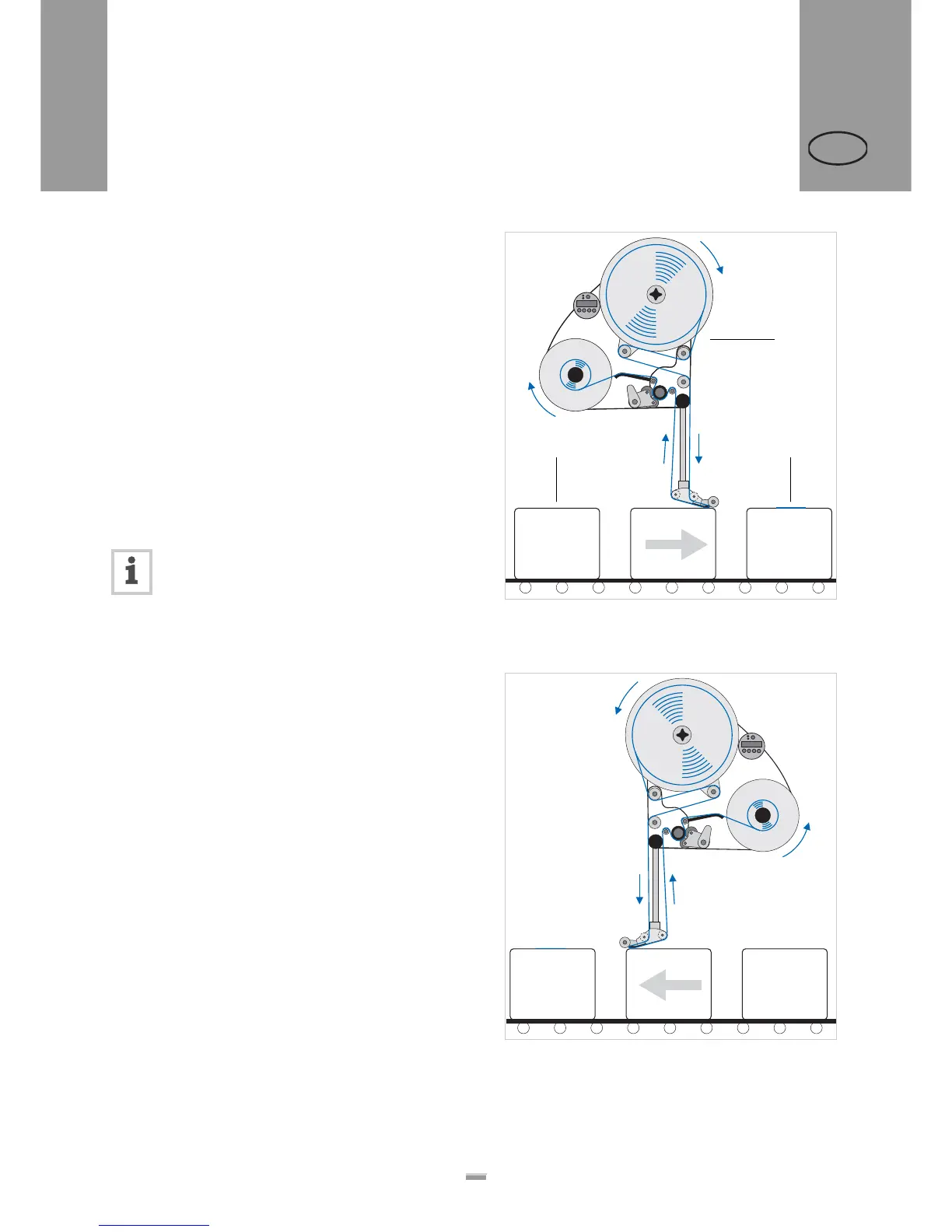

2.1.6 Design models
The ALS 104 Label Dispenser is available in two de-
signs for differing conveyor belt directions.
Right-handed version
– The products are transported from left to right [10].
– The dispensing edge is located on the right side.
– Abbreviation: RH
Left-handed version
– The products are transported from right to left [11].
– The dispensing edge is located on the left side.
– Abbreviation: LH
The label dispenser operation described in this
manual is based on the right-handed version.
The left-handed version is only taken into ac-
count if the explanations or figures of the de-
signs differ significantly.
[10] Right-handed version
A ALS104
B Product on the conveyor belt
C Labelled product
[11] Left-handed version
A
B C
