3BEFORE OPERATION
2.4 INSERTING LABEL MATERIAL
ALS
104
GB
Threading the label roll onto the drive
roller
£ Open the pressure roller. To do so, rotate the lever
[35D] in a clockwise direction.
£ Feed the backing paper around the deflection roller
[35B], drive roller [35C] and the tensioning plate
[35A].
£ Close the pressure roller. To do so, rotate the lever
anticlockwise until it snaps in noticeably.
Fastening the label roll to the rewinder
£ Clamp the backing paper to the rewinder as shown
and tighten it [37].

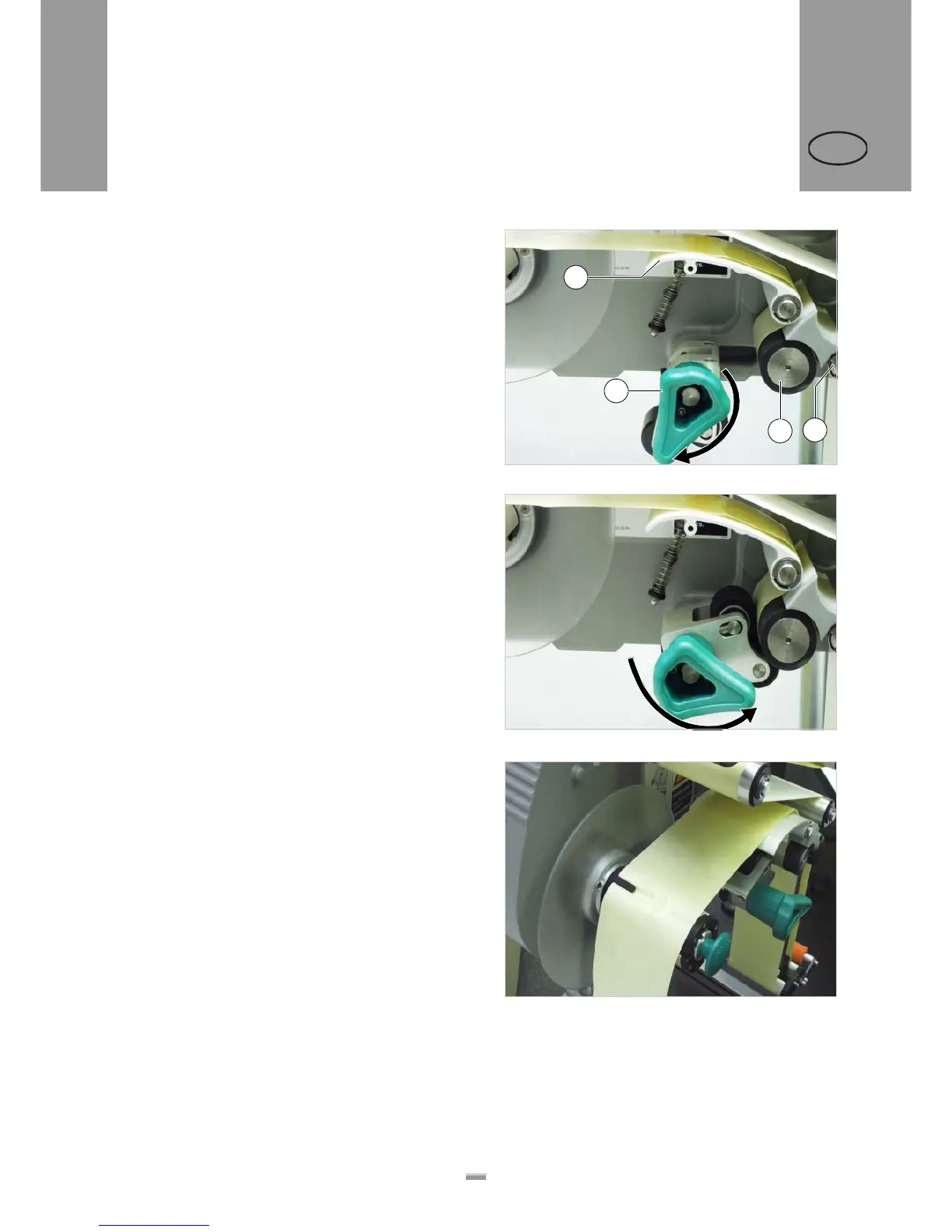

[35] Opening the pressure roller.
[36] Closing the pressure roller.
C
B
A
D
[37] Fastening the backing paper to the rewinder.
