3BEFORE OPERATION
2.4 INSERTING LABEL MATERIAL
ALS
104
GB
2.4.3 Threading the label web
Threading guide

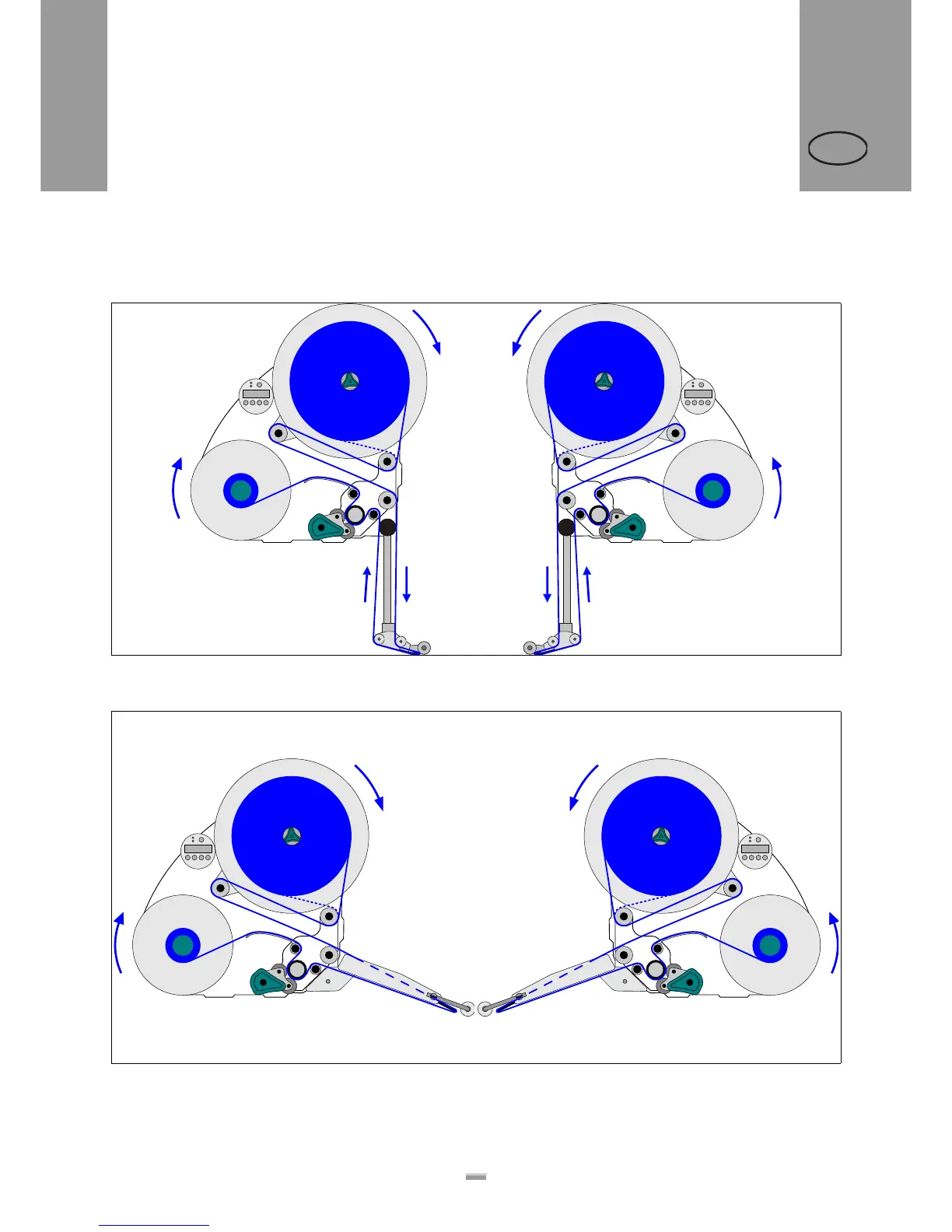

[30] Threading guide for ALS 104 with L-shape dispensing edge
*
.
A Right-handed version B Left-handed version
[31] Threading guide for ALS 104 with V-shape dispensing edge
*
.
A Right-handed version B Left-handed version
*) Solid line: Path for label rolls with labels facing outwards. Dottet line: differing path for label rolls with labels facing inwards.
BA
BA
