4OPERATION
4.1 START-UP AND SHUTDOWN
ALS
104
GB
4.1.1 Turning on the unit
£ Set the main switch [46A] of the unit to ‘I’ (On).
Machine with dust/splash guard option:
– The main switch [47A] lights, if the machine is swit-
ched on.
£ Operate the main switch.
– Once on, the ALS104 is in dispensing mode; in
other words, triggering the product sensor will cause
a label to be dispensed.
– More information on the dispensing mode can be
found in the section “Dispensing mode” on page 24.
4.1.2 Starting label dispensing
Dispensing with a product sensor
Once switched on, the ALS104 is in dispensing mode;
this means that triggering the product sensor will cause
a label to be dispensed.
Prerequisites:
– The label length must be specified
– The product sensor must be connected
– The sensor type (PNP/NPN) must be
properly set.
Dispensing without a product sensor
It is also possible to trigger the dispensing process
without a product sensor:
£ Press the key briefly.
4.1.3 Stopping the dispensing
process
£ Set the main switch [46A] of the unit to ‘O’ (Off).

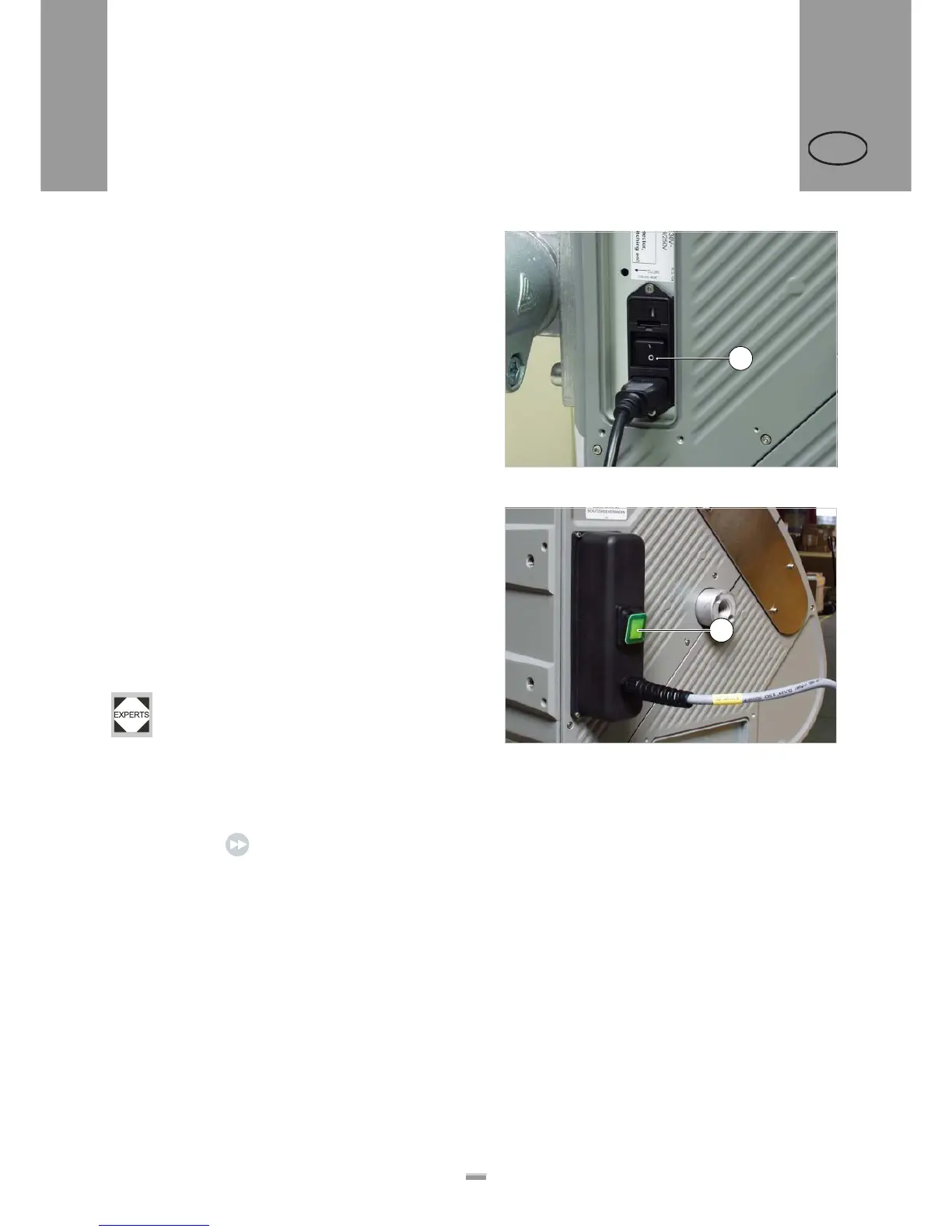

[46] Main switch (A) of ALS 104.
[47] Mains switch (A) of ALS 104 with dust/splash guard option.
A
A
4 OPERATION
4.1 START-UP AND SHUTDOWN
