Avery Dennison ALS 104 - Threading the Label Roll at the Dispensing Edge

31
3BEFORE OPERATION
2.4 INSERTING LABEL MATERIAL
ALS
104
GB
Threading the label roll at the dispensing
edge
£ Unroll around 1m of label strip and remove the
labels from it.
£ Pass the backing paper around the first deflection
roller [32A] and through the slot in the sensor [32B].
£ Feed the backing paper under the pressure roller
[32C] to the dispensing plate [32D].
£ Feed the backing paper around the dispensing plate
to the second deflection roller [32E].
Spring loaded [33] and pneumatic [34] L-Shape dispen-
sing edges:
£ Additionally pass the backing paper between the
two slim deflection rollers at the joint [33A] [34A].

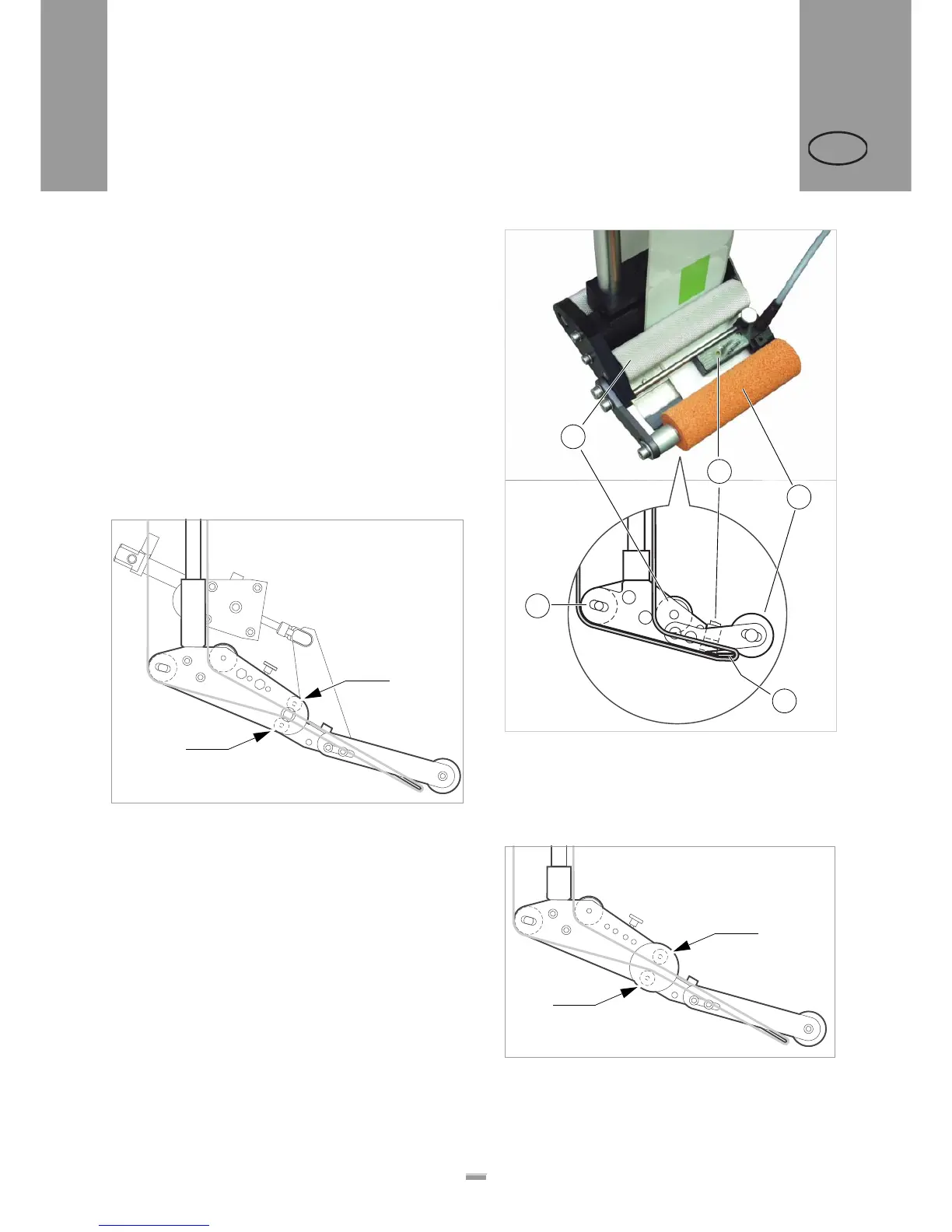

[34] Path of the label strip at the pneumatic dispensing edge (option).
[32] Path of the label strip near the edge of the dispenser.
A 1st deflection roller
B Label sensor
C Pressure roller
D Dispensing plate
E 2nd deflection roller
[33] Path of the label strip at the spring loaded dispensing edge
(option).
C
A
B
D
E
A
A
A
A
