Using MBOX Studio
47
4 Adjust gain by rotating the left Encoder while playing. Use the front panel input meters to set a level that sounds good to you.
Stereo Line Input
In addition to inputs 1–2 and 3–4, MBOX Studio provides Line Inputs 5–6 on the back panel, to connect stereo sources such as sam-
plers, turntables, and synthesizers.
To use a stereo source:
1 Connect the left and right outputs of your stereo source device:
• Use MBOX Studio
LINE IN 5–6 inputs for the left and right outputs from synths, drum machines/samplers, turntables, external
sub-mixers, and similar “line level” sources.
• To use a stereo pair of microphones or other sources, connect them to any pair of MBOX Studio inputs. For example, for two XLR
microphones use inputs 1 and 2 on the front panel, or 3 and 4 on the back panel.
2 Press (or press and rotate) the left encoder until 5 and 6 light green above the Input meters. Line Inputs 5 and 6 are linked by default,
so you only need to select input 5 to automatically select both 5 and 6.
Input type (
LINE) is automatically selected for hardware inputs LINE IN 5–6.
3 Rotate the left encoder to adjust input gain.
4 To start recording in Pro Tools, see Using MBOX Studio and Pro Tools.

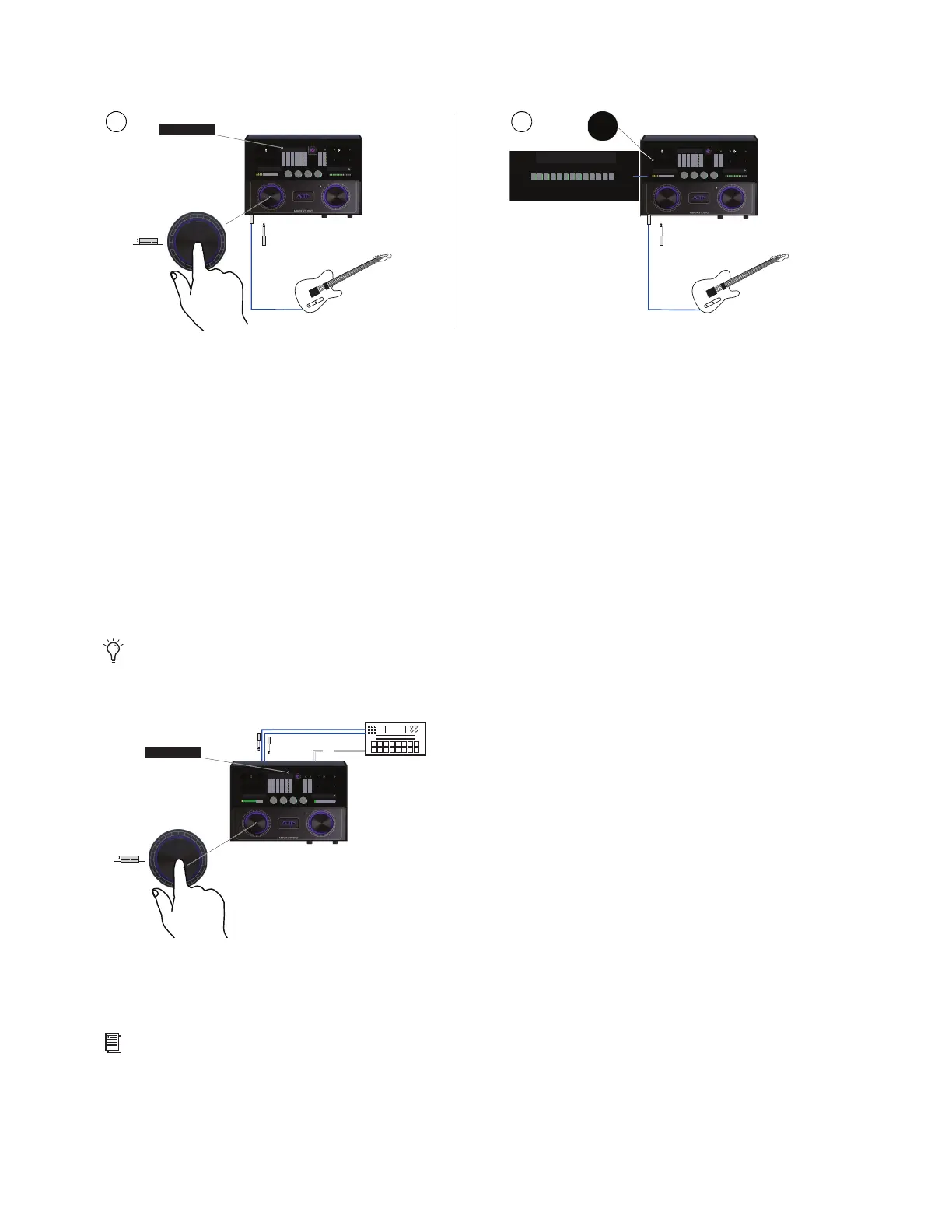

Selecting a hardware input (shown at left) and specifying the input type (shown at right)
If you need independent control over input 5 (mono) and 6 (mono) press the LINK button in the Input section so it becomes unlit.
Selecting hardware inputs 5–6
See also Integrating an External MIDI Device.
1 23456
TUNE
48V LINK
INPT
ZPAD
LINK MONO
MUTE
DIM TALK
MIC LINE INST
INST
MAIN
DIG
ALT
MBOX STUDIO
1
1 23456
1 23456
1 23456
TUNE
48V LINK
INPT
ZPAD
LINK MONO
MUTE
DIM TALK
MIC LINE INST
INST
MAIN
DIG
ALT
MBOX STUDIO
INPT
1 23456
MIC LINE INST
1
123 456
TUNE
48V LINK
INPT
ZPAD
LINK MONO
MUTE
DIM TALK
MIC LINE INST
INST
MAIN
DIG
ALT
MBOX STUDIO
123456
LINK
56
123456
L audio output
R audio output
(MIDI)
