Slot Range Setup
Each input device in a Pro16e-based personal mixing system supplies one bank of 16 channels to the
network. The Slot Range switches on the AN-16/i v.2 are used to set the assignment for each; the physical
location of the device within the daisy chain does not matter as long as the Slot Range switch settings are
correct. Each input module is daisy chained, connecting a Cat-5 cable from its A-Ne t ou t to the A-Ne t IN of
the next input device in the chain.

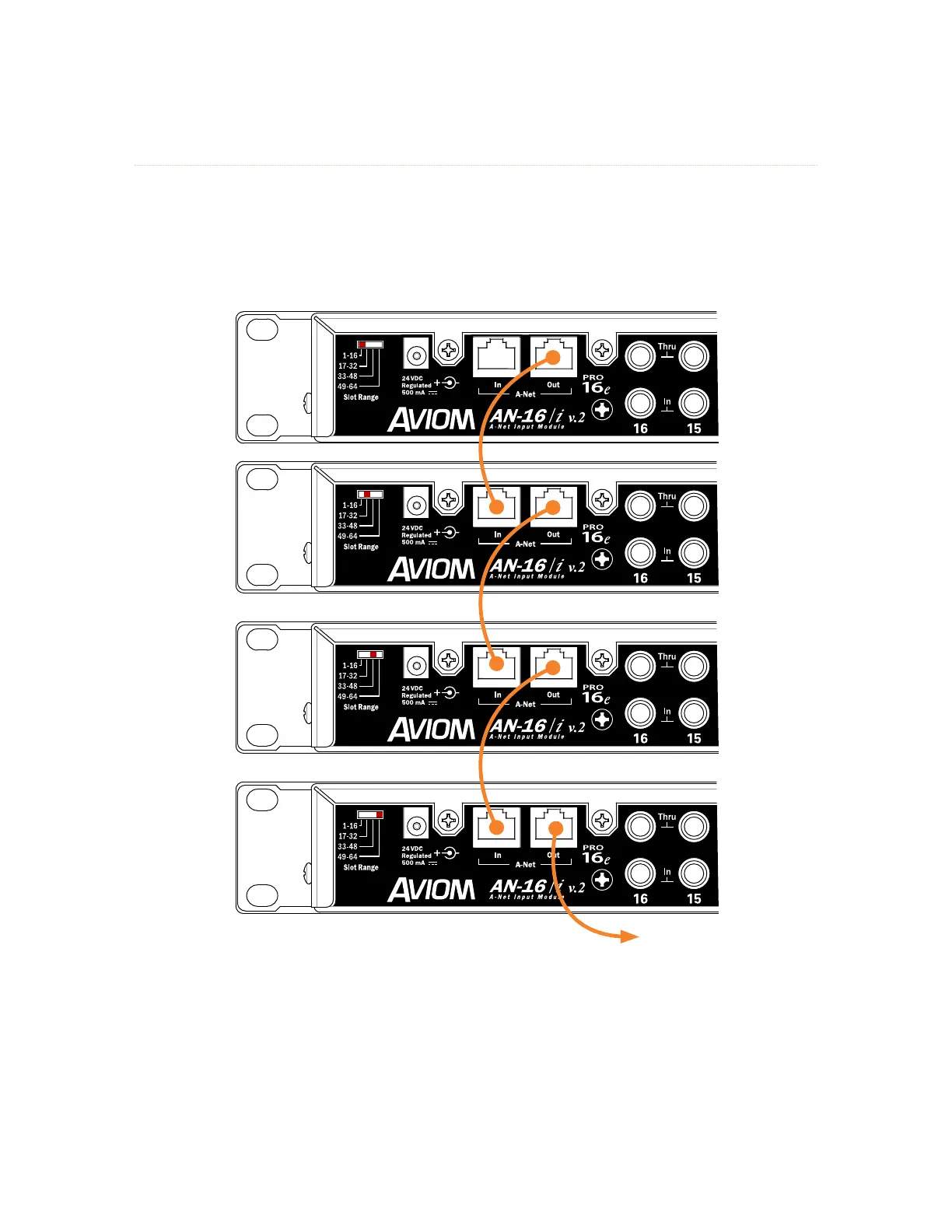

Slot Range switches for each input device in a 64-input system are shown. A legacy Pro16 device may be substituted
for the rst bank of 16 channels.
Connect the A-Ne t ou t of the last input device in the chain to the A-Ne t IN of the A-Net distributor. The
A360 Personal Mixers are then connected to the distributor’s A-Ne t ou t ports.
A legacy Pro16 device may be substituted for the first bank of 16 channels in a daisy chain of input devices.
It will automatically default to supplying the first 16 slots to the network pool. See page 62.
