AVL F-FEM-DAC User Manual

Frequency Outputs
F-FEM-DAC
F-FEM-DACF-FEM-DAC
F-FEM-DAC
Operating Manual
29
Signal type: Simulate ABZ
The desired frequency is output at the zero track. Tracks A and B,
which are in quadrature, output the desired frequency multiplied by the
number of teeth.
The WD-Live signal is output at the single channel.
NoutΑΒ
Zff ×=

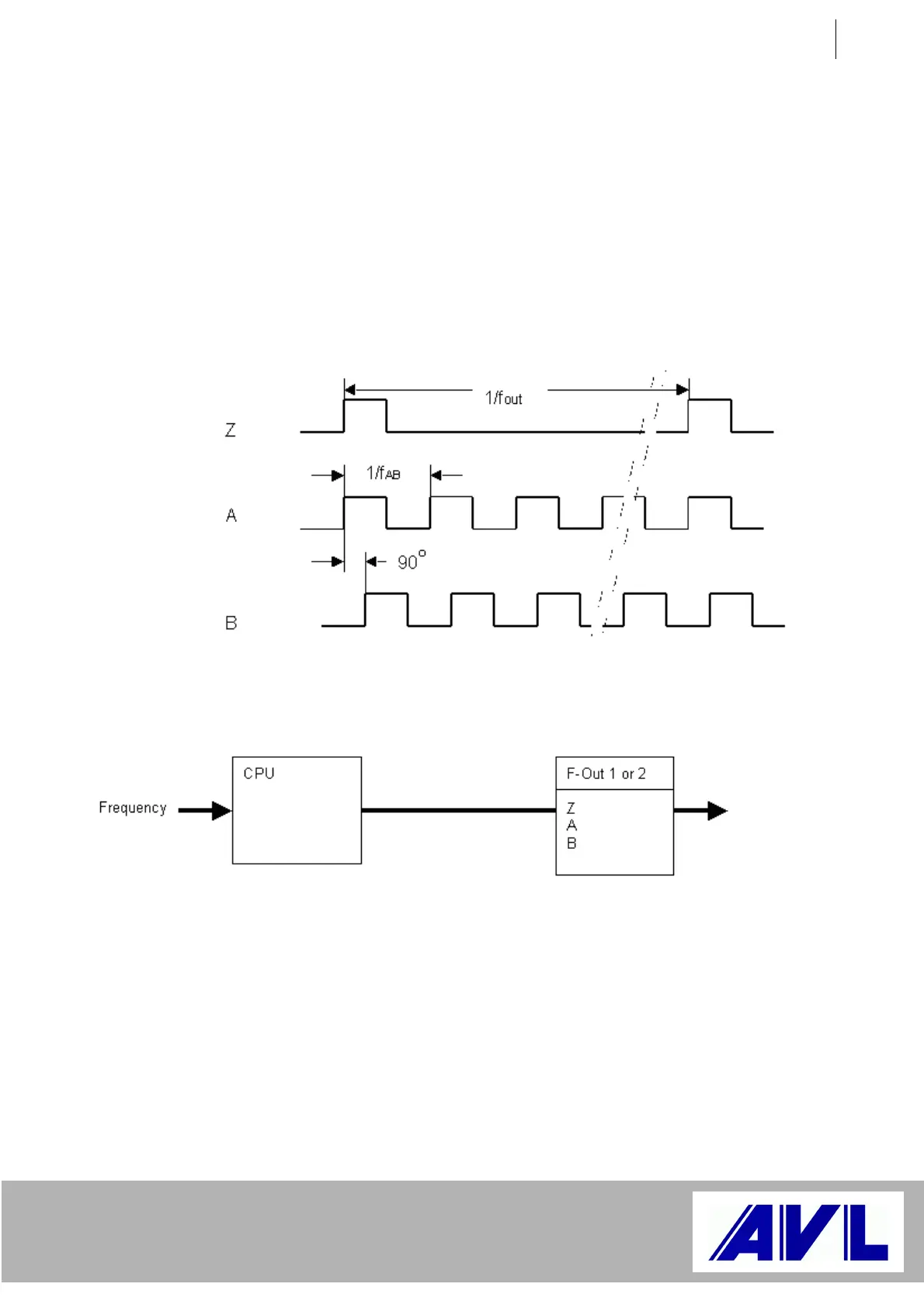

Fig. 18 F-Out Simulate ABZ
Fig. 19 Simulate ABZ block diagram
