During power-up and system booting, the analog output is kept at 0 V
or 0 mA to avoid spikes or undefined conditions.
4.5.3 Frequency Outputs: X15, X16

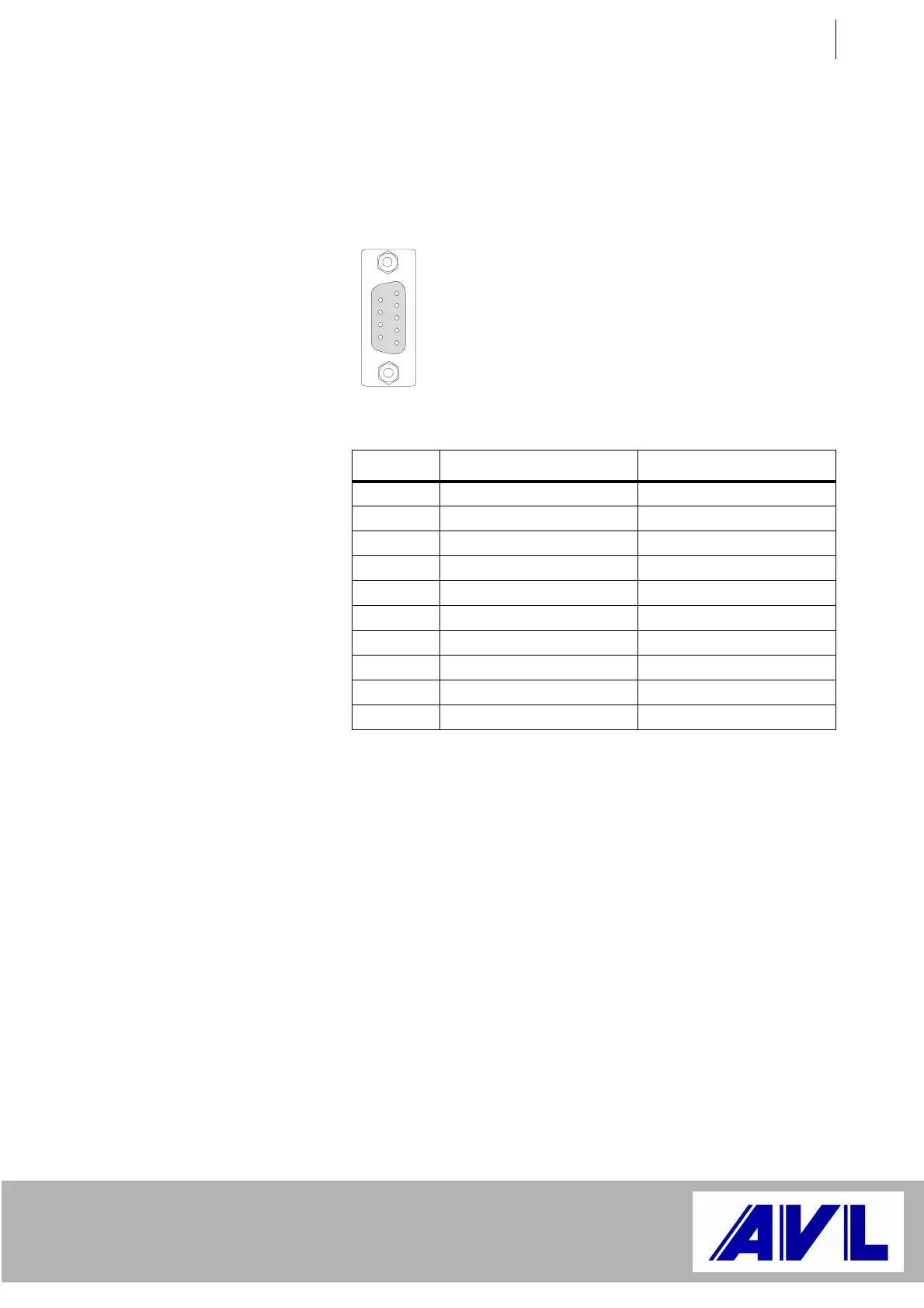

Fig. 25 Frequency outputs: X15, X16
Pin Signal at X15 Signal at X16
1 U1_0+ U2_0+
2 U1_0– U2_0–
3 U1_1+ U2_1+
4 U1_1– U2_1–
5 U1_2+ U2_2+
6 U1_2– U2_2–
7 VIN_15 VIN_16
8 FOUT1 FOUT2
9 GND_15 GND_16
Case Shielding Shielding
Table 8
