Fiber Optic Link Converter
44
5.2 Fiber Optic Link Converter
If more than 3 repeaters are required to cover the distance between
two 2 FEMs (>30 m), it is more convenient to use an FOL converter.
5.3 F-FEM-DIO
An F-FEM-DIO can be connected at X24 and X25 as extension to the
F-FEM-DAC. For details, please refer to the F-FEM-DIO Operating
Manual.
The F-FEM-DIO can be ordered under the number GK0220.

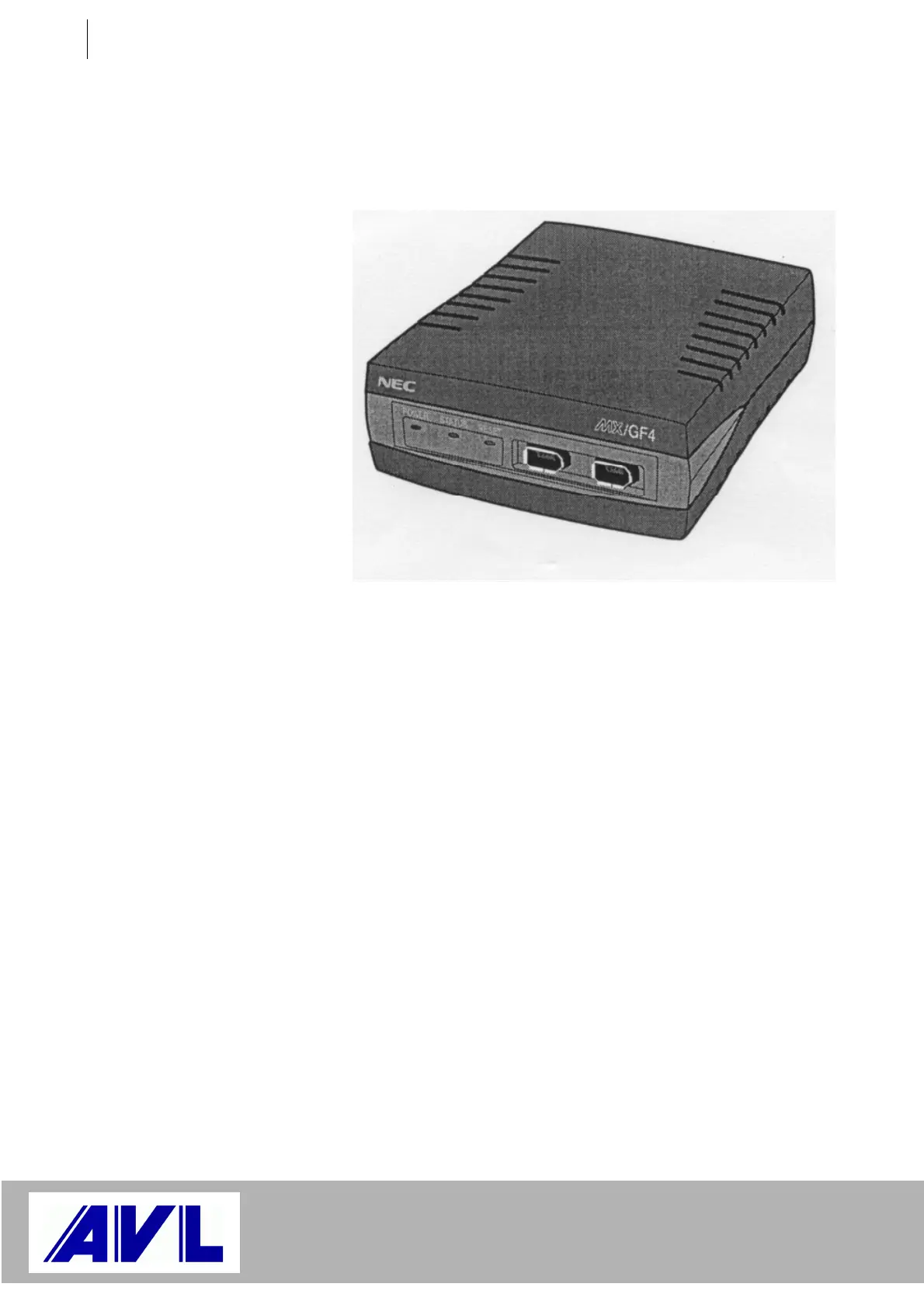

Fig. 32 Example of an FOL converter for IEEE1394
