Avnet SMARC MSC SM2S-IMX8MINI User Manual

MSC SM2S-IMX8MINI 19 / 87
User Manual

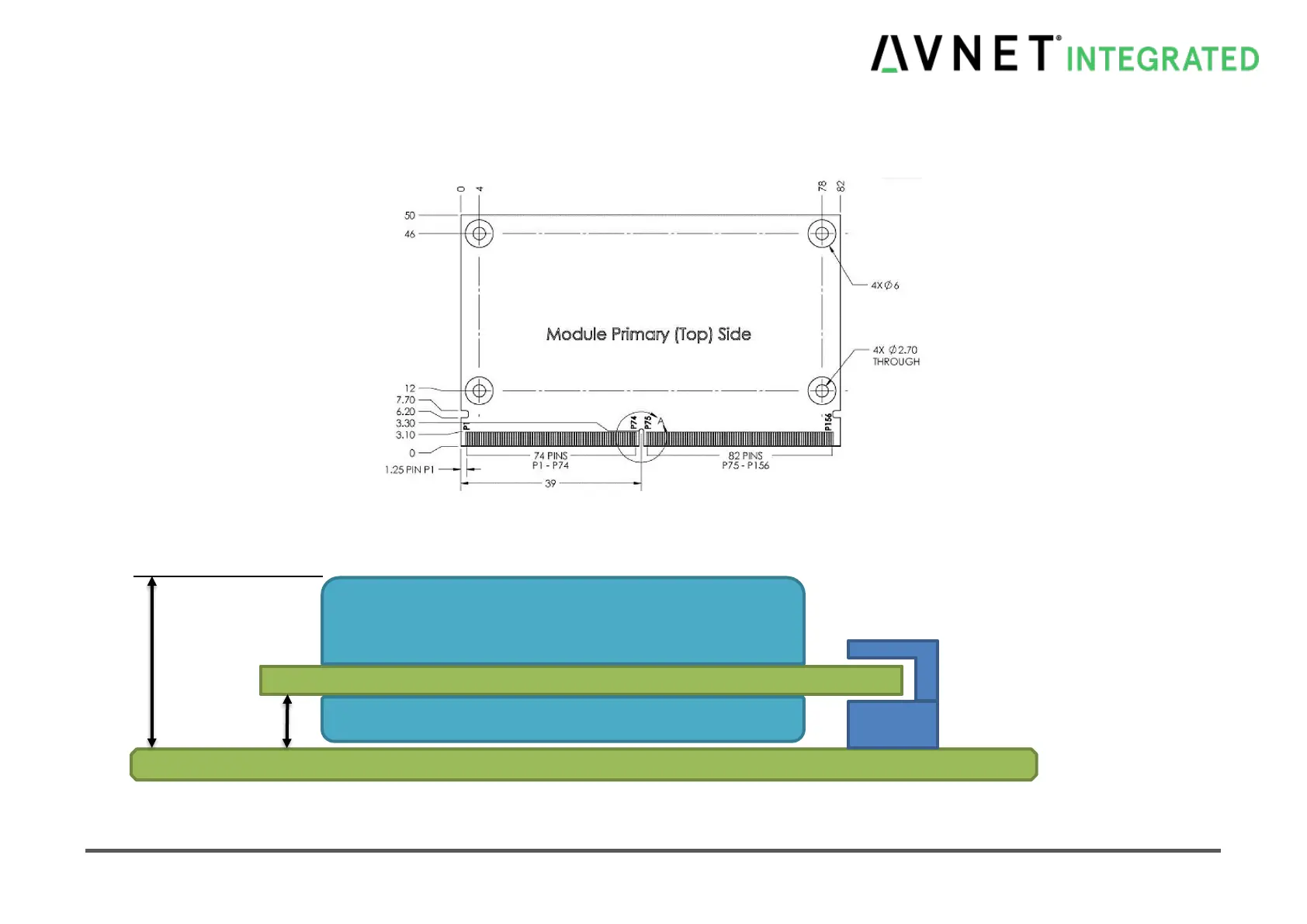

1.5 Mechanical Dimensions
Figure 1-2: Module Dimensions
Figure 1-3: Overall height without heat spreader of the SMARC™ Module
The overall height is dependent on the MXM3 connector used on the baseboard.
Carrier PCB
Module PCB 1.2mm
BOT Side – Component 1.3mm max
TOP Side – Component 3.0mm max
1.5mm min
5.7mm min
