5.2.2 Reset Sequencing

I.MX8M Mini can’t be reset by internal reset and a power cycle is preferred. Some peripherals require a power cycle during system reset.

RESET_IN# assertion leads to a module power cycle as shown in the following figure:

Figure 5-3: Reset Sequencing

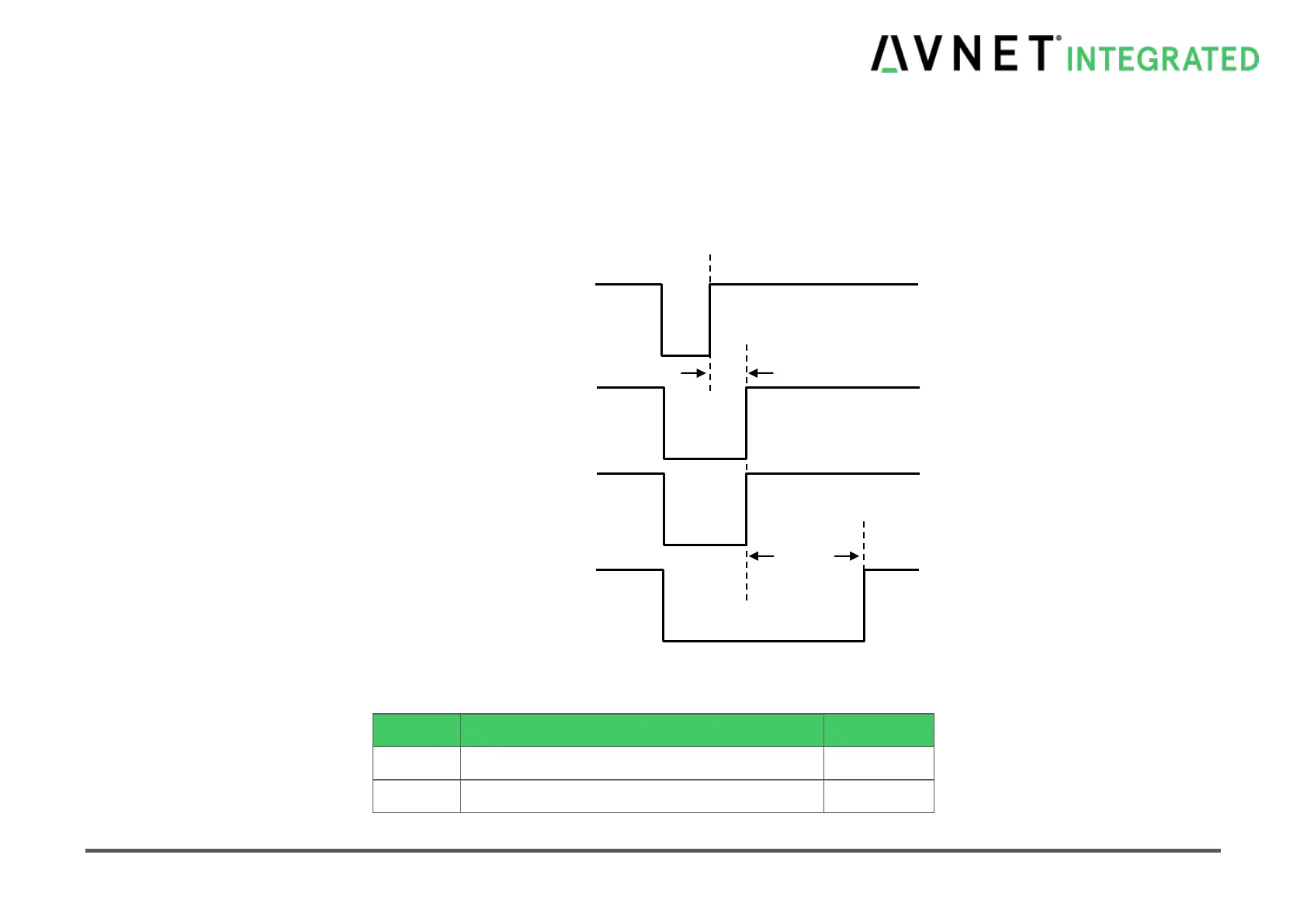

Figure 5-4: Reset Timings

Time Slot

Description

Value

CARRIER_PWR_ON to RESET_IN# timing

10.8ms

RESET_OUT# to CARRIER_PWR_ON

355ms

RESET_IN# (Carrier to Module)

CARRIER_PWR_ON (Module to Carrier)

CARRIER_STBY# (Module to Carrier)

RESET_OUT# (Module to Carrier)
