MSC SM2S-IMX8MINI 53 / 87

User Manual

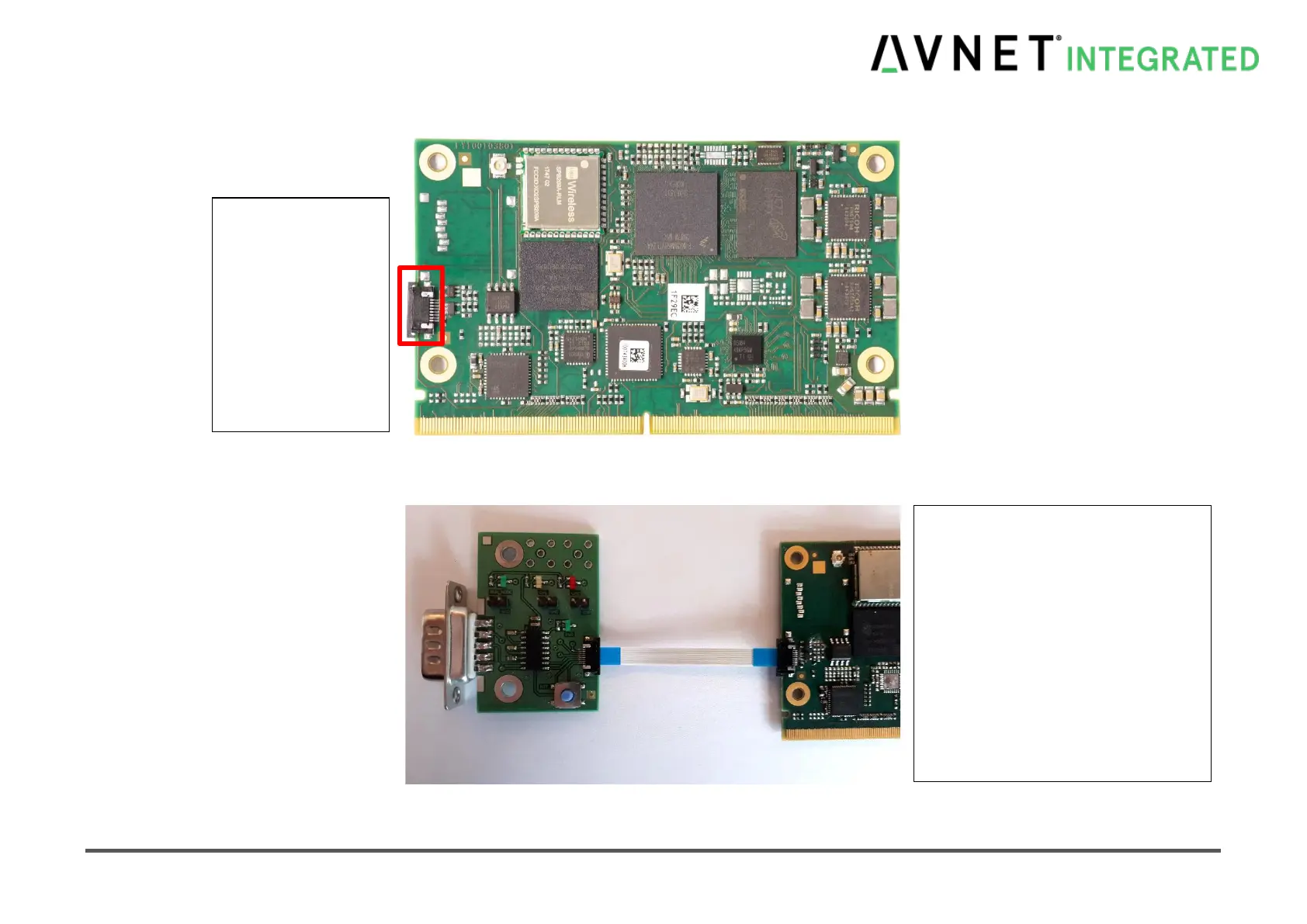

Figure 5-5: Module top side with debug UART FFC connectors marked in red

Figure 5-6: Module top side with MSC UART debug adapter

Serial signals on the Debug connector are at 3.3V TTL level.

Pinout:

1: Ground

2: NC

3: NC

4: NC

5: UART_TXD

6: UART_RXD

7: RESET_IN#

8: VCC_3V3

MSC Debug-Adaptor

40402

Debug UART Adapter for i.MX8-based

SMARC, Qseven and nanoRISC

modules, with 8-pin FFC cable to

connect COM module to 9-pin D-Sub

connector

Use top / top cables.
