Operation instructions | MK 8-00 | MK 16-00 | MK 8-06 | MK 16-06
10 2018-10-05 | Technical improvements, changes in design, printing- and other errors expected.

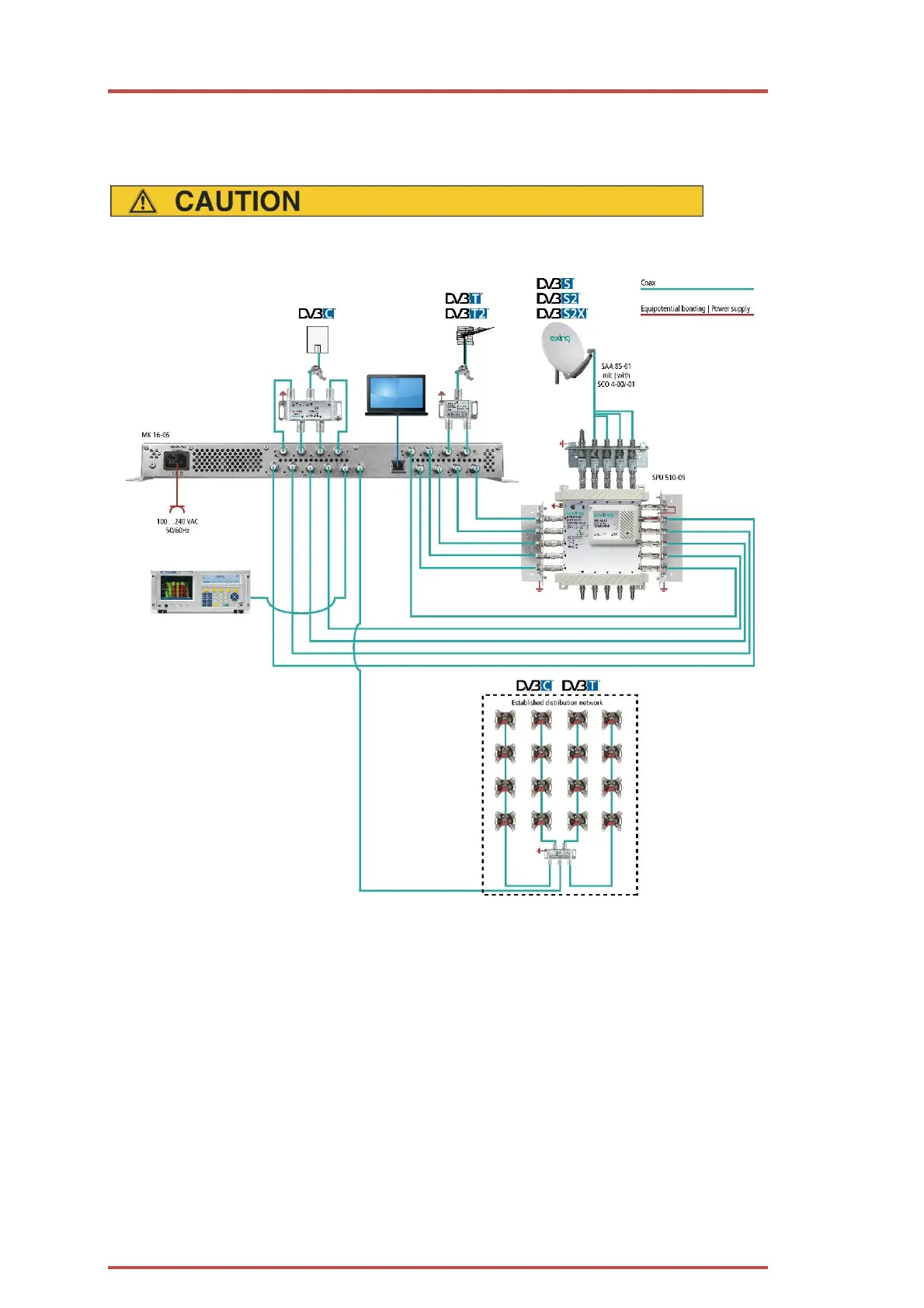

2.5. RF Installation
2.5.1. Connection to DVB-T/T2 or DVB-C
Before connecting the antenna cabel, the LNB power has to be switched off (see 3.3.2 on page 17).
Active DVB-T antennas have to be supplied by an external power supply.
2.5.2. Connection to DVB-S/S2/S2x
Connection to the LNBs
On the SAT-IF input the compact headends have a remote supply voltage for the LNB and use DiSEqC 1.0
functionalities. Therefore, they can be connected directly to the LNB.
Multiswitches as input distributors
Optionally, you can also use multiswitches as input distributors. The advantage of this solution is that you can
set both the SAT IF level and the satellite via the user interface. Changes in the list of programmmes can be
made using remote maintenance, so that it is not necessary to change or modify the input distribution on site.
2.5.3. Output
If you use more then one compact headend, you have to use a combiner to combine the output signals. Note:
There has to be used galvanic isolator between the output connector and antenna network in Sweden and
Norway state area.
