2018-10-05 | Technical improvements, changes in design, printing- and other errors expected. 9

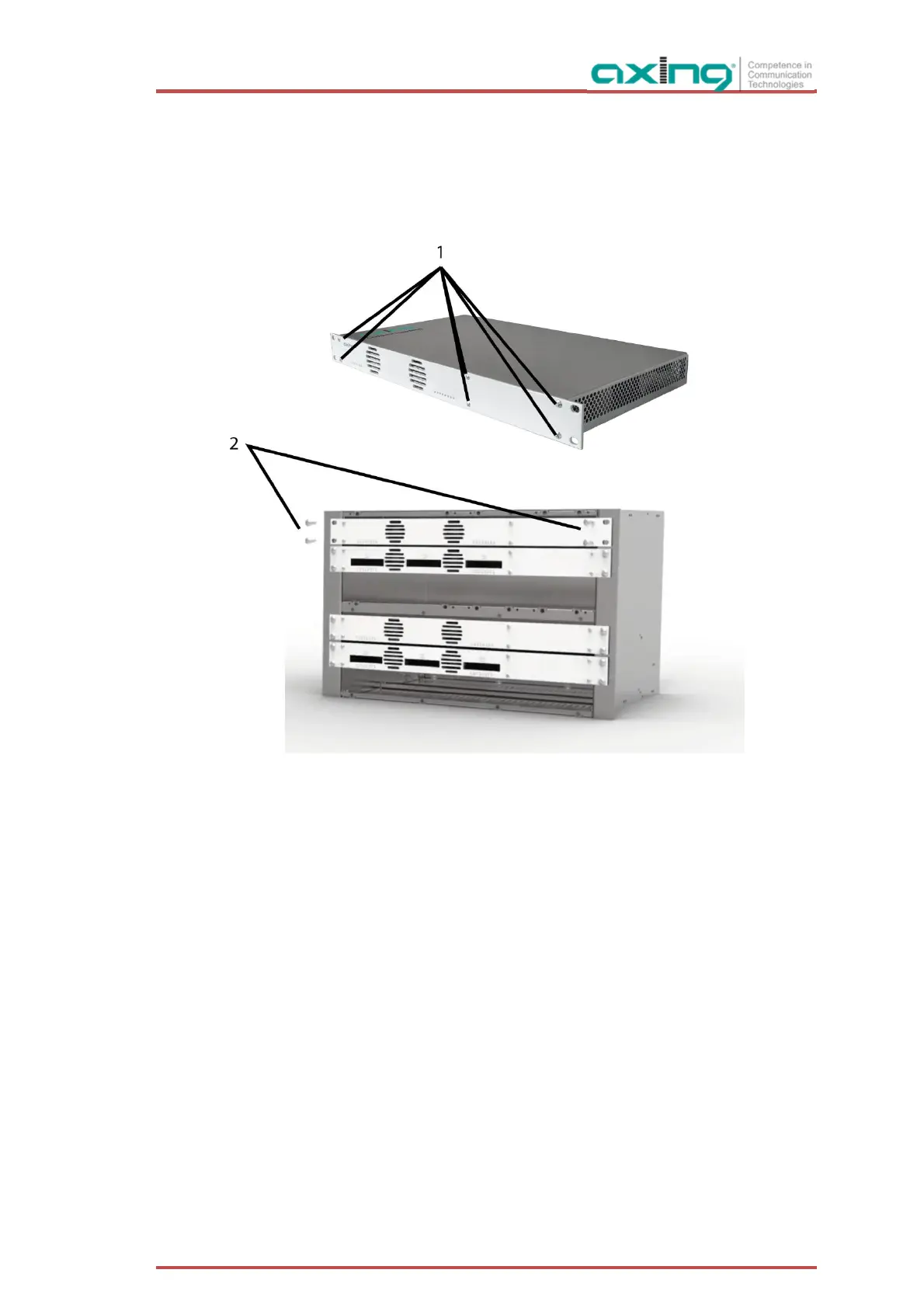

2.2. Mounting in a 19“ rack
Note: For 19-inch rack mounting, there must be at least 5 cm clearance in front of and behind the unit.
Remove the wall bracket from the housing of the compact headend.
Mount the front plate MKZ 1-00 onto the MK 8 / 16-00 (1).
Slide the compact headend into the 19 "rack.
Screw the compact headend with four screws (2).
Maintain the EN 60728-11.
2.3. Equipotential bonding
To connect the outer conductor of the coaxial cable to the equipotential bonding, use e.g. QEW earthing
angles or CFA earth connection blocks at the inputs and output (see 2.5 on page 10).
2.4. Power supply
The 19 "units have a built-in power supply. For example, connect the units to an electrical outlet (100 ... 240
VAC / 50 ... 60 Hz).
