58 USER MANUAL ME-01

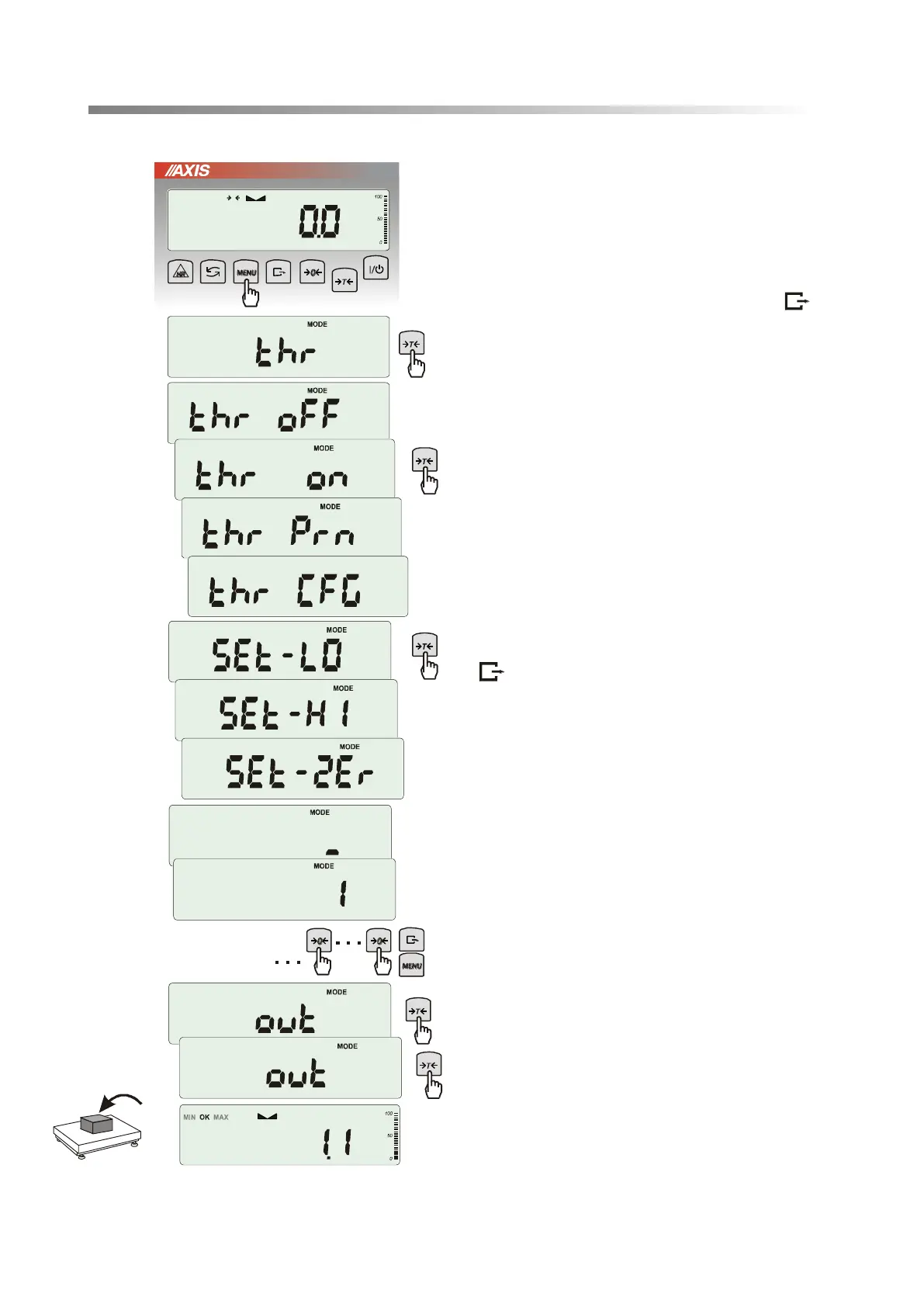

Operation sequence:
Press MENU key and choose thr pressing  T 
key.
The following options are displayed successively:
- thr oFF – deactivate the function,
- thr on – activate the function,
- thr Prn – check last threshold values (press
key several times),
- thr CFG – choose Relays socket mode:
IMPULS – Batching mode
SIGnAL – Indication mode
out.
Choose thr-on option using  T  key. The
following options for entering thresholds are
displayed:
- SEt-LO - set lower threshold value,
- SEt-HI - set upper threshold value,
- SEt-ZEr - set zero signalisation threshold.
Using  T  key select SEt-LO option.
Set lower threshold value using the following keys:
0 - digit increase,
- decimal point,
T - move to next digit,
MENU - finish.
Then select SEt-HI option and enter upper
threshold value.
Choosing SEt-ZEr option will enter zero
signalisation.
Choosing out will end inscribing thresholds.
Choosing again out will start thr function.
To change Relays socket mode use thr CFG option.
Default option is Indication.
To leave the function, press MENU key and then
choose thr and thr oFF options..
