Replacing the lens
It is possible to use optional lenses for the Axis product.
To replace the lens:
1. Disconnect the iris cable.
2. Unscrew the standard lens.
3. Attach and screw on the new lens.
Note
There is no need to restart the Axis product after changing the lens. H owever, the product must be restarted if you are
interchanging between a P-iris, DC-Iris or fixed/manual iris lens. In order to set the focus and po sition the lens, the Axis
product must be connected to the netw ork.

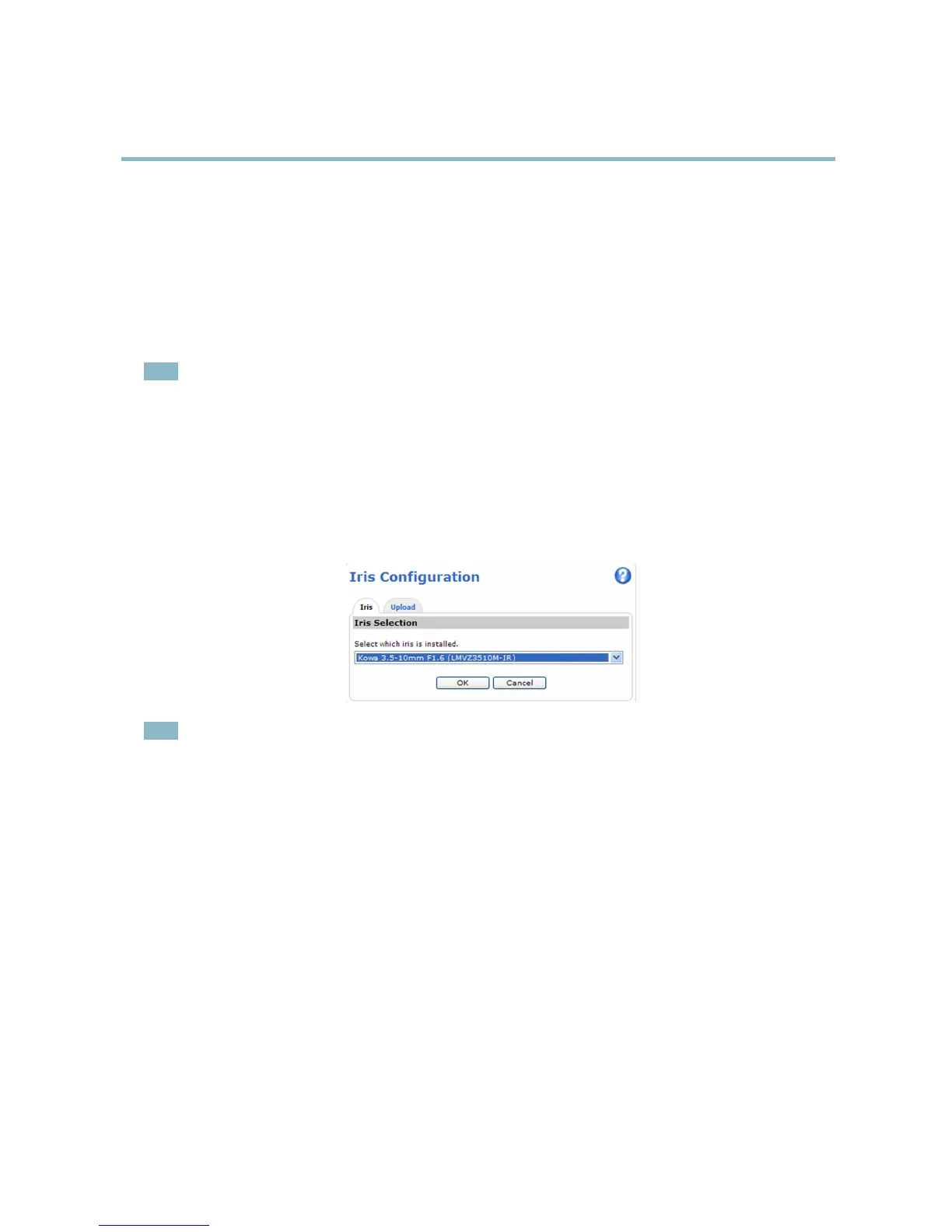

To change the iris configuration:
1. Go to Setup > Video and Audio > Cam era S ettings. Iris configuration shows the current configured iris type.
2. Click Edit.
3. Select the insta lle d iris l ens from the drop-do wn list and click OK.
Note
For iris lenses not listed in the dro p-dow n list, d ownload the iris configuration file from www.axis.com
To upload and use the downloaded configuration file, click the Upload tab. Click Browse and select the configuration
file. Click Upload. The installed iris lens should now be included in the Iris Selection drop-down list, select it and press
OK. If you select a D C iris configuration file for a P-iris lens, an error message will appear below the iris configuration
type in the Camera Settings page.
