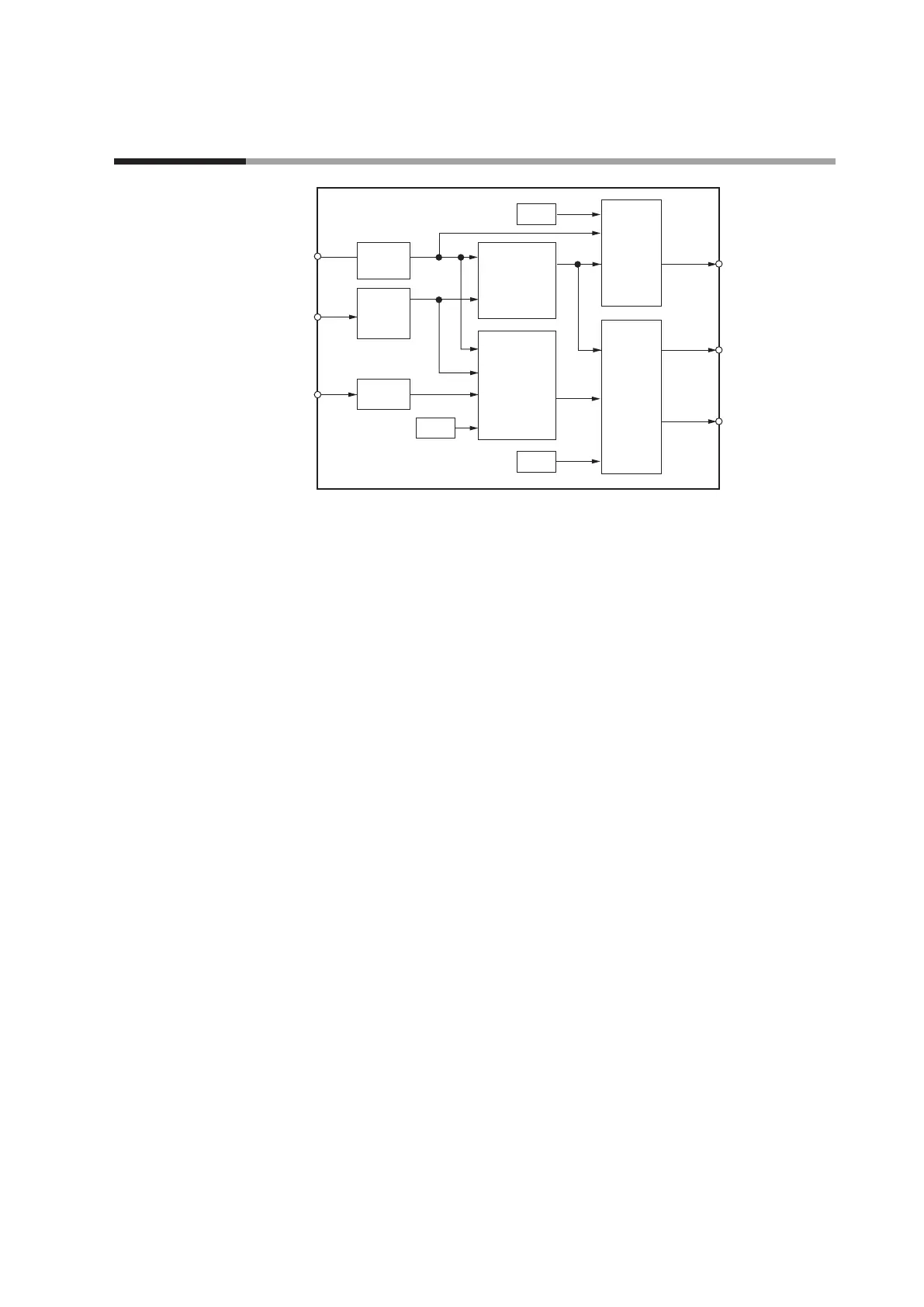

2-1
Other
Digital
output
process
Analog
output
process
Control output 1, 2
(Current output)
Control output 1, 2
(Relay output, voltage
pulse output)
Event output 1 to 3
(Relay output)
CT input 1, 2
Digital input 1, 2
PV input
PV
process
Internal
event
process
Control
process
(ON/OFF
control,
PID control)
Other
Other
Internal
contact
process
CT
process
z
PV input
Sensor or range is selected for the PV input. The selection range may vary
depending on the input type of the model (T: Thermocouple, R: RTD, L: DC
current, DC voltage).
z
Control output
When the control output type of the model is “R: Relay” or “V: Voltage pulse”, the
control output becomes the ON-OFF control output or time proportional output.
When the time proportional output is used, the time proportioning cycle time
can be set. When the control output type of the model is “C: Current”, the control
output becomes the continuous output (analog output). When the model has two
control outputs, the heat/cool control can be used only with "Simple configuration".
z
Event output
When the model provides the event, the alarm or control mode set in [Event type]
can be output as DO (digital output).
z
DI (digital input)
When the model provides the DI, the function set with the DI assignments can be
selected.
z
CT (current transformer) input
When the model provides the CT input, the heater burnout alarm can be output
from the event output.
Chapter 2. OUTLINE OF FUNCTIONS
2 - 1 Input/Output Configuration
