Azbil C15 User Manual

5-25
Chapter 5. SETTINGS BEFORE STARTING OPERATION
The following settings are necessary when using the CT (Current Transformer) input of the optional model.
For CT input, two kinds of current values are provided.
• Current value at output ON: This value is used for the heater burnout/over-current event. The value is displayed
as CT current value.
• Current value at output OFF: This value is used for the heater short- circuit event. The value cannot be displayed.
When [CT type] is set at “heater burnout detection”, the current value at output ON becomes the CT current value
measured when the output specified in [CT output] is turned ON. The current value at output OFF becomes the CT
current value measured when the output specified in [CT output] is turned OFF.
When [CT type] is set at “current value measurement”, the current value at output ON becomes the measured CT
current value regardless of output ON/OFF status. The current value at output OFF is fixed at “0.0A”.


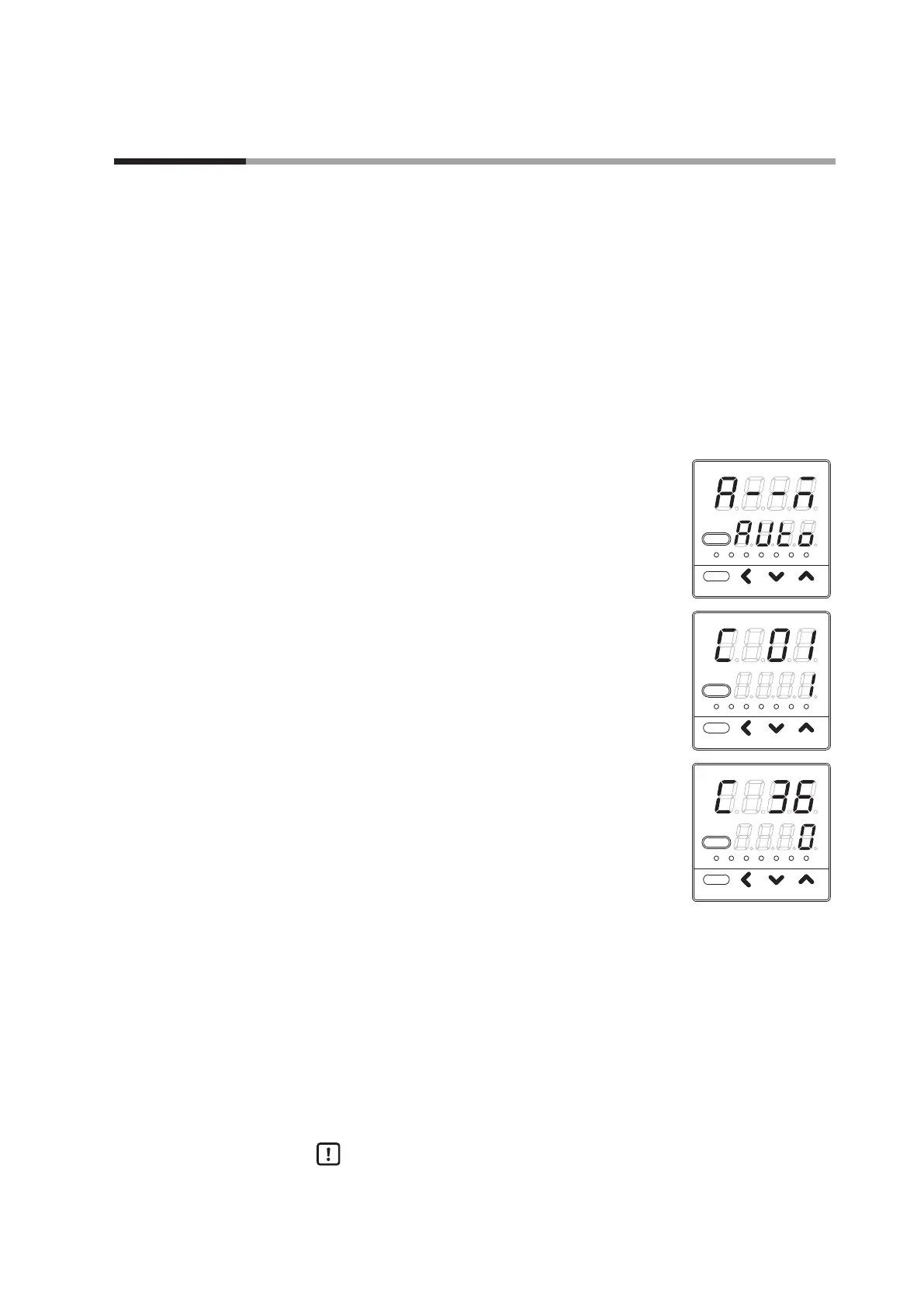

CT type setup
(1) In the operation display mode, keep the [para] key
pressed for 2 s or longer.
>> The unit then enters the parameter setting mode.
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
(2) In the parameter setting display mode, keep the [para]
key pressed for 2 s or longer.
>> The display is then changed to the setup setting
display.
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
(3) Press the [para] key several times.
>> Display the setup setting [C36:CT1 type].
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
(4) Press the [<], [
<
], or [
<
] key to set the value you have
selected from the following in [C36].
0: Heater burnout detection
1: Current value measurement
>> When no keys are pressed for 2 s or longer, the flashing of the numeric
value is stopped to set the currently displayed value.
(5) Press the [mode] key.
>> The display is returned to the operation display.
Handling Precautions
• The display of the CT2 type is [C39].
• When the additional function of the model is that CT is not provided,
[C36] and [C39] are not displayed.
5 - 4 CT (Current Transformer) Input
