Chapter 5. SETTINGS BEFORE STARTING OPERATION
Event hysteresis setup
(1) In the operation display mode, keep the [para] key
pressed for 2 s or longer.
>>
The unit then enters the parameter setting mode.
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp

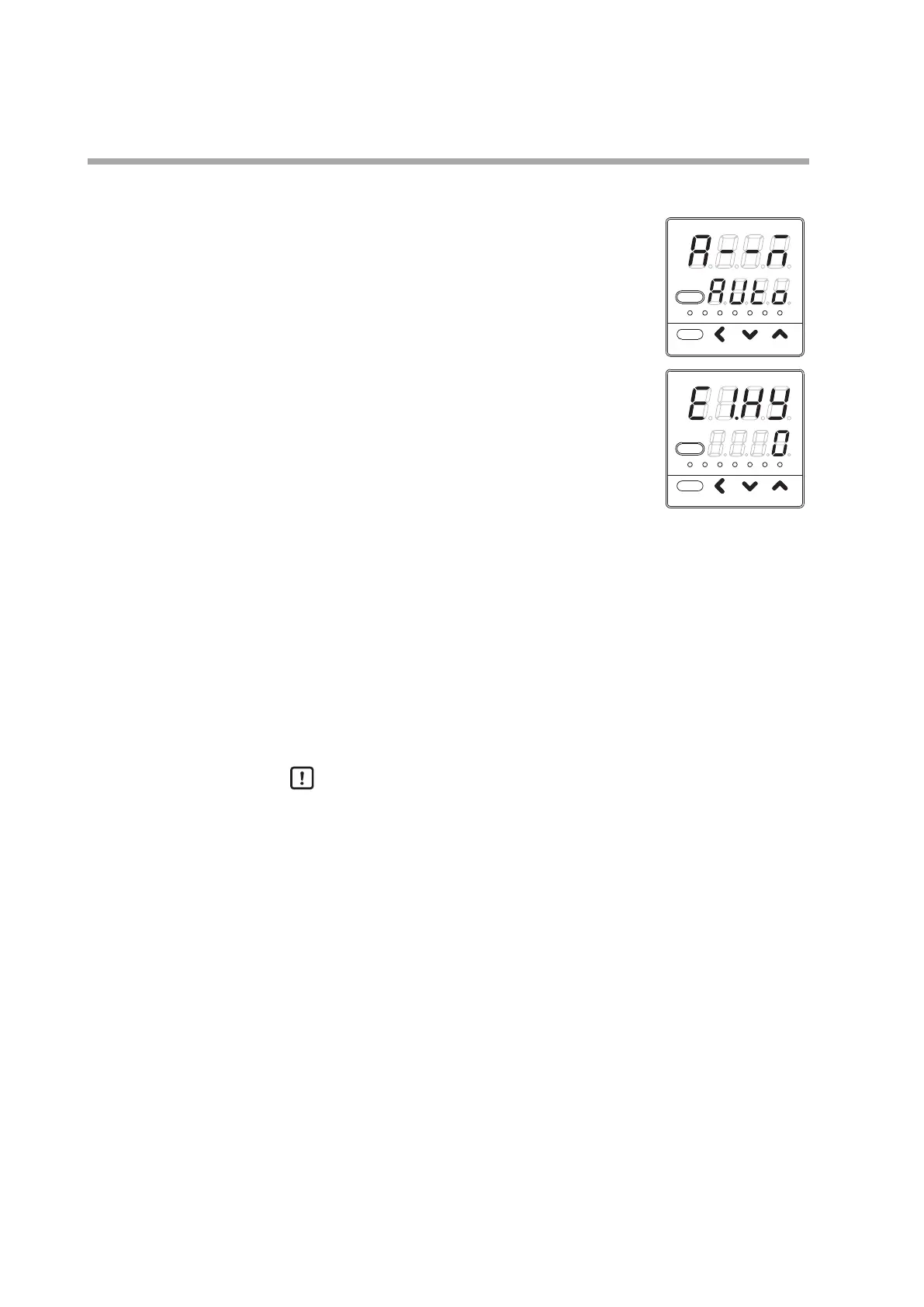

(2) Press the [para] key several times.
>>
Display the parameter setting [E1.Hy: Internal
Event 1 hysteresis].
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
(3) Press the [<], [
], or [
] key to change the set value in
[E1.Hy].
Setting range: 0 to 9999
The decimal point position is changed corresponding to the event operation type.
>>
When no keys are pressed for 2 s or longer, the flashing of the numeric
value is stopped to set the currently displayed value.
(4) Press the [mode] key.
>>
The display is returned to the operation display.
Handling Precautions
• The displays of the internal event 2 to 5 hysteresis are [E2.Hy], [E3.Hy],
[E4.Hy], and [E5.Hy].
• When the internal event operation type is [0: No event] or the operation
type does not need hysteresis, the internal event hysteresis is not
displayed.
