6-4
Chapter 6. SETTINGS DURING OPERATION
6 - 2 Operation Display other than SP
With "Simple configuration", the MV (manipulated variable) setting, heat MV (manipulated variable), cool MV
(manipulated variable), AT progress, and CT (current transformer) inputs 1 and 2 are displayed.
MV (manipulated variable) display and setup
(1) Make sure that the unit is in the operation display mode.
If the unit is in the parameter setting display or setup setting display mode,
press the [mode] key.
>>
The display is then returned to the operation display.
(2) Press the [para] key several times.
>>

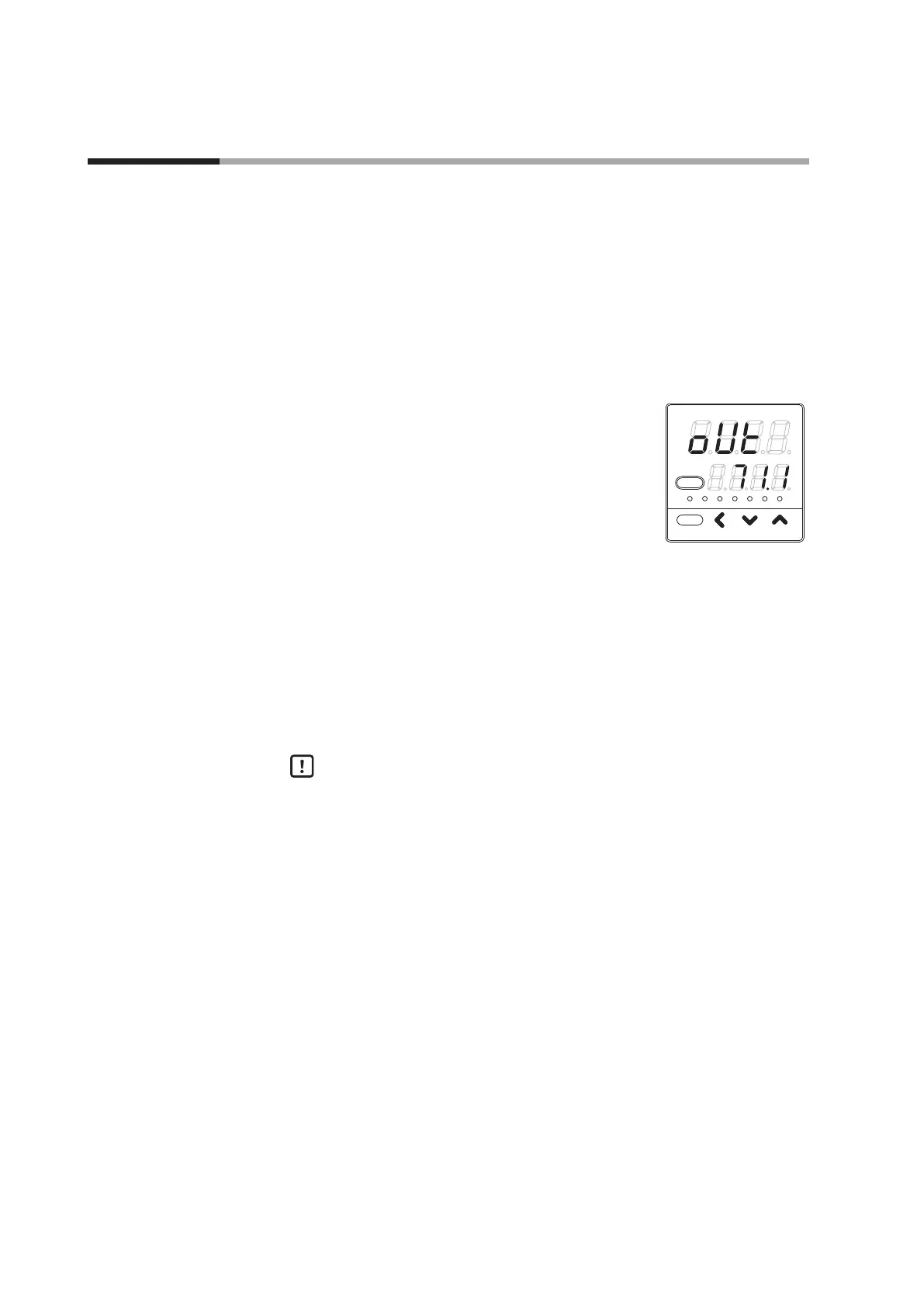

Display [OUt] on the display No. 1 and the MV on
the display No. 2. In the MANUAL mode, the 1st
digit of the MV display starts flashing.
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
(3) In the MANUAL mode, press the [<], [
], or [
] key
to change the MV value.
Setting range: -10.0 to +110.0 %
When using the time proportional output, a value ranging
from - 10.0 to -0.1 % is the same as 0.0 %, that is, the output
always becomes OFF.
Additionally, a value ranging from +100.1 to +110.0 % is the
same as 100.0 %, that is, the output always becomes ON.
Handling Precautions
• In the AUTO mode, the MV value is not changed even though the [<], [
],
or [
] key is pressed.
• With “Standard configuration” or “High function configuration”, it is
possible to make the settings so that the MV is not displayed.
To Next Page
