Chapter 5. SETTINGS BEFORE STARTING OPERATION
In "Simple configuration", the internal event must be set when using the event output, an additional function of the model.
In "Simple configuration", the operation type, Direct/Reverse, standby, MV in READY mode, main setting, and
sub-setting of the internal event can be set. With the default settings before shipment, the internal event process has
been connected directly to the event output. Therefore, the optional event output of the model is operated only with
the internal event setting.
The following describes the event operation.
Note
For details about U (unit), refer to the attached glossary.

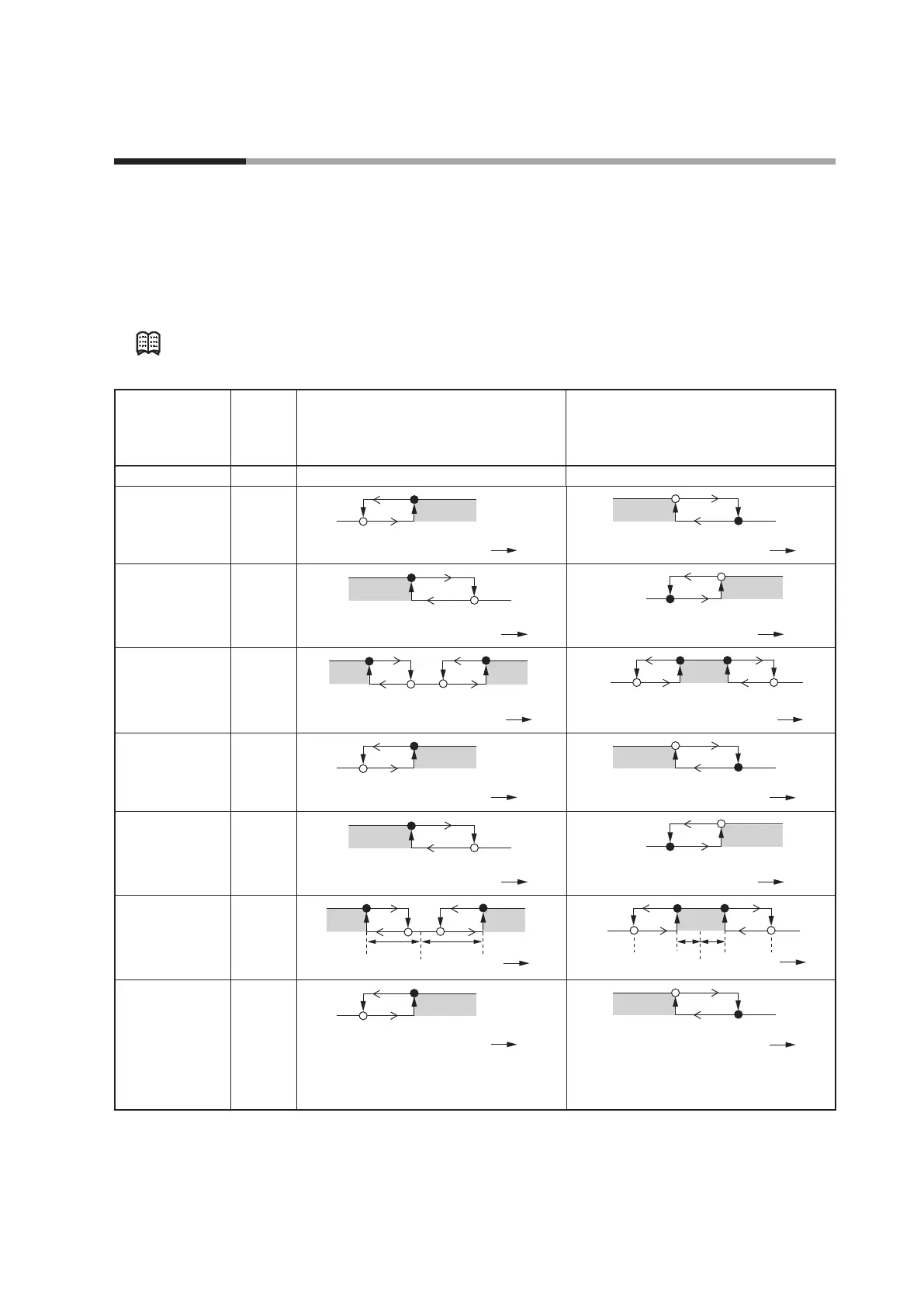

Operation type Set
value of
operation
type
Direct action
z
shows that the ON/OFF is changed at this value.
 shows that the ON/OFF is changed at a point
that "1U" is added to this value.
Reverse action
z
shows that the ON/OFF is changed at this value.
 shows that the ON/OFF is changed at a point
that "1U" is added to this value.
No event 0 Always OFF Always OFF
PV high limit 1
ONHYS
ON
HYS
Main setting
Main setting
PV
PV
PV low limit 2
Main setting
PV
Main setting
PV
ONHYS
ON
HYS
PV high/low limit 3
Main setting Sub-setting Main setting Sub-setting
PV
PV
ON
HYS
ONHYS
ONHYS
HYS
Deviation high
limit
4
ONHYS
ON
HYS
SP + Main setting
SP + Main setting
PV
PV
Deviation low
limit
5
SP + Main setting
PV
SP + Main setting
PV
ONHYS
ON
HYS
Deviation high/
low limit
6
Main setting
Sub-setting
PV
SP
ON
HYS
ONHYS
ONHYS
HYS
Main setting
Sub-setting
PV
SP
Deviation high limit
(Final SP reference)
7
ONHYS
ON
HYS
SP + Main setting
SP + Main setting
PV
PV
Same as the direct action of the deviation high limit.
(The difference is that the SP ramp does not
use the current SP, but it uses the final SP.)
Same as the reverse action of the deviation high limit.
(The difference is that the SP ramp does not
use the current SP, but it uses the final SP.)
5 - 3 Internal Event
