Chapter 5. SETTINGS BEFORE STARTING OPERATION
In “Simple configuration”, the mode key function and user level are set.

Mode key function setup

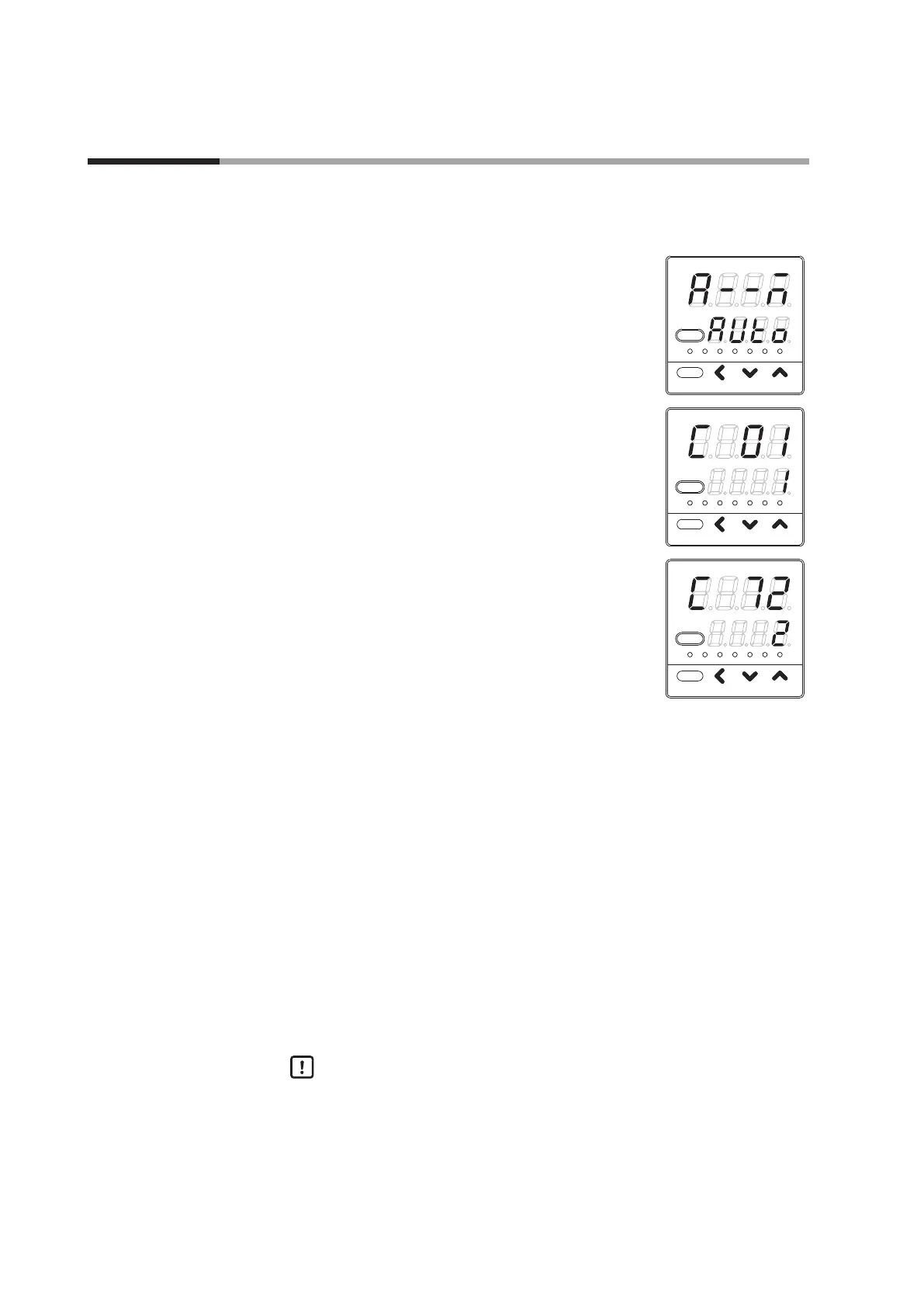

(1) In the operation display mode, keep the [para] key
pressed for 2 s or longer.
>> The unit then enters the parameter setting mode.
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
(2) In the parameter setting display mode, keep the [para]
key pressed for 2 s or longer.
>> The display is then changed to the setup setting
display.
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
(3) Press the [para] key several times.
>> Display the setup setting [C72: Mode key function].
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
pv
sp
(4) Press the [<], [
<
], or [
<
] key to set the value you have
selected from the following in [C72].
0: Invalid
1: AUTO/MANUAL mode selection
2: RUN/READY mode selection
3: AT (Auto tuning) Stop/Start selection
4: LSP (Local SP) group selection
5: Release all DO (digital output) latches
6: Invalid
7: ON/OFF selection of communication DI (Digital Input) 1
>> When no keys are pressed for 2 s or longer, the flashing of the numeric
value is stopped to set the currently displayed value.
(5) Press the [mode] key.
>> The display is returned to the operation display.
Handling Precautions
• When the parameter setting [CtrL: Control method] is set at [0: ON/
OFF control], the mode does not become the MANUAL mode. Therefore,
even though the [MODE key function] is set at “AUTO/MANUAL mode
selection”, this setting becomes invalid.
• When the setup setting [C30: LSP system group] is set at “1”, the LSP
group cannot be changed. Therefore, even though [MODE key function]
is set at “LSP group selection”, this setting becomes invalid at this time.
5 - 7 Key Operation
